TC-C32XN Spec:I3W/E/Y/2.8mm/V4.2 Tiandy Spark Turret 2MP Fixed 2.8mm
TC-C32XN Spec:I3W/E/Y/2.8mm/V4.2 Tiandy Spark Turret 2MP Fixed 2.8mm
Sold by: MA Tech

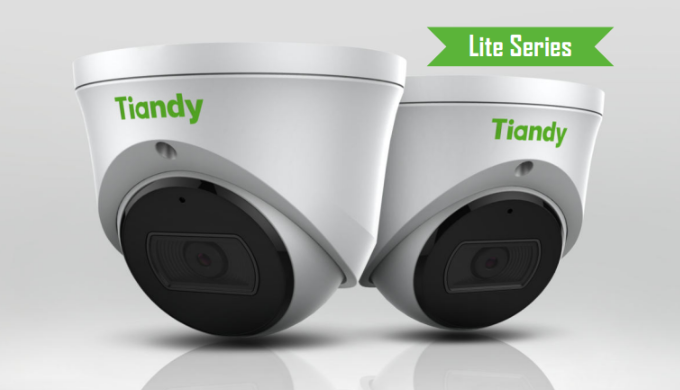

TC-C32XN – 2MP Fixed IR Turret Camera
Lite Series | Model: I3/E/Y/(M)/2.8mm
✅ Key Features
- Default: Metal + Plastic Housing (Optional: Full Metal “M” version)
- Resolution: 1920×1080 @ 30fps (2MP Full HD)
- Compression: S+265 / H.265 / H.264
- Low Light Performance: 0.02 Lux @ F2.0 (Color)
- Smart IR: IR Range up to 30m
- Smart VCA: Supports Tripwire & Perimeter
- Built-in Mic and Reset Button
- microSD Card Slot: Supports up to 512GB
- Wide Temperature Range: -35°C ~ 65°C
- IP67 Rated with PoE Support
📸 Camera Specifications
Image Sensor | 1/2.9" CMOS |
Signal System | PAL / NTSC |
Min. Illumination | Color: 0.02Lux @ F2.0 (AGC ON) |
B/W: 0 Lux with IR | |
Shutter Speed | 1s to 1/100,000s |
Day/Night Function | Dual IR-Cut Filter with Auto Switch |
WDR | Digital WDR |
Angle Adjustment | Pan: 0–340°, Tilt: 0–75°, Rotate: 0–360° |
🔍 Lens
Type | Fixed |
Focal Length | 2.8mm |
Mount | M12 |
Aperture | F2.0 (Fixed) |
Field of View | Horizontal: 97.4° |
💡 Illumination
IR LEDs | 2 |
IR Range | Up to 30m |
Wavelength | 850nm |
🎞️ Video & Audio
Max. Resolution | 1920×1080 (2MP) @ 30fps |
Main Stream | PAL: 25fps |
Sub Stream | PAL: 25fps |
Compression | S+265 / H.265 / H.264 |
Bitrate | 32Kbps – 6Mbps |
Audio Compression | G.711 / G.711U / ADPCM |
Audio Bitrate | 8Kbps – 48Kbps |
🖼️ Image Settings & Enhancements
Adjustable Parameters | Saturation, Brightness, Contrast, Sharpness (via Client/Web) |
Enhancement | BLC, HLC, 3D DNR, Smart Defog |
OSD | Up to 3 regions; text (Week, Date, Time), 16×16 to 48×48 fonts |
Privacy Mask | 4 regions |
🧠 Smart Features
Alarm Triggers | Motion Detection, Mask Alarm, IP Address Conflict |
Video Analytics | Tripwire, Perimeter |
Early Warning (EW) | Not Supported |
🌐 Network
ANR Support | Yes (With Tiandy NVR only) |
Protocols | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, Multicast, IPv4, NTP, UDP, Telnet |
System Compatibility | ONVIF (Profiles S/T/G), SDK, P2P (excl. Profile G) |
Remote Access | Up to 7 clients simultaneously |
Client Software | Easy7, EasyLive |
Web Version | Web5 |
🔌 Interfaces
Network Port | 1 × RJ45 10/100M Ethernet |
Audio Input | Built-in Mic |
Alarm I/O | Not Supported |
Reset Button | Yes |
Storage | microSD/SDHC/SDXC, up to 512GB |
⚙️ General
Operating Temp | -35°C ~ 65°C (-31℉ ~ 149℉) |
Humidity | 0% – 95% RH (non-condensing) |
Power Supply | DC12V ±25%, or PoE (802.3af) |
Power Consumption | Max 6W (DC), Max 7W (PoE) |
Protection | IP67, Lightning/Surge/Voltage Protection (EN 55035:2017) |
Heater | Not Supported |

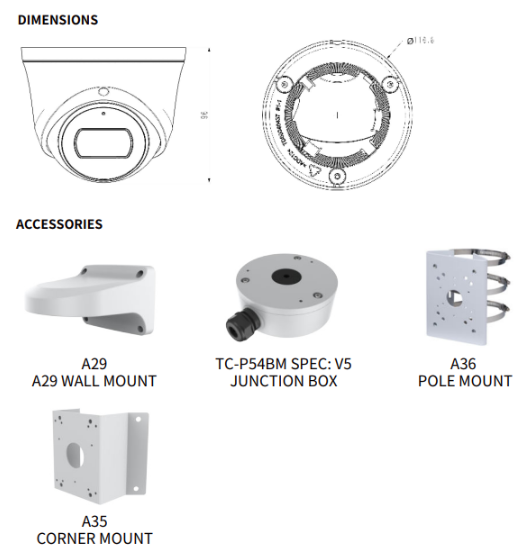

📦 Dimensions & Weight
Camera Dimensions | Ø116.6mm × 83.7mm (4.59" × 3.30") |
Weight | Metal+Plastic: 0.34kg (0.75lb) |
Full Metal: 0.47kg (1.04lb) |
🌍 Languages Supported (15 Languages)
-
English, Russian, Spanish, Korean, Italian, Turkish, Simplified Chinese, Traditional Chinese, Thai, French, Polish, Dutch, Hebrew, Arabic, Vietnamese
🧩 Compatible Accessories
Mount Type | Model |
Wall Mount | A29 |
Junction Box | TC-P54BM V5 |
Pole Mount | A36 |
Corner Mount | A35 |
