TC-C34KN Spec:I3/A/E/Y/2.8-12mm/V4.2 Tiandy Superlite Dome 4MP Motorized Lense 2.8-12mm

TC-C34KN Spec:I3/A/E/Y/2.8-12mm/V4.2 Tiandy Superlite Dome 4MP Motorized Lense 2.8-12mm

Sold by: MA Tech

Regular price PKR 28,571
Regular price Sale price PKR 28,571
Sale Sold out
Shipping calculated at checkout.

TC-C34KN 4MP Motorized IR Dome Camera — SuperLite Series


📌 Product Description:

The TC-C34KN is a compact, high-definition 4MP motorized IR dome camera designed for versatile indoor and outdoor surveillance in commercial and residential applications. Housed in a durable plastic enclosure with an IP66 rating, this camera provides robust environmental protection. Equipped with a 2.8–12mm motorized lens, it delivers crystal-clear images up to 2688×1520@25fps, even in low light with Smart IR technology supporting up to 30m IR range.

Advanced features include S+265/H.265/H.264 compression, built-in microphone, microSD storage up to 512GB, and intelligent video analytics like tripwire and perimeter detection. It is optimized for high performance, low bandwidth, and ease of deployment with PoE support, making it an ideal choice for modern IP surveillance systems.


TC-C34KN aik compact aur high-definition 4MP motorized IR dome camera hai jo commercial aur residential surveillance ke liye design ki gayi hai — chahe indoor ho ya outdoor. Iska durable plastic housing IP66 rating ke saath aata hai, jo ise dust aur paani se bachata hai aur tough environments mein bhi use karne ke qabil banata hai.

Is camera mein 2.8–12mm motorized lens laga hua hai jo zoom aur angle ki flexibility provide karta hai, aur yeh 2688×1520 resolution @25fps tak ki clear video provide karta hai. Smart IR technology ki wajah se yeh low-light ya andheray mein bhi up to 30 meter tak ki clear night vision deta hai.

Isme built-in microphone hai audio recording ke liye, aur yeh microSD card up to 512GB support karta hai local storage ke liye. Video compression ke liye advanced formats jaise S+265, H.265 aur H.264 ka support bhi available hai jo bandwidth aur storage ko effectively manage karta hai.

Camera ke smart features jaise tripwire aur perimeter detection ise aur bhi intelligent aur secure banate hain. PoE support ki wajah se iski installation bhi asaan hai. Yeh camera un logon ke liye perfect choice hai jo modern IP surveillance system chahte hain jisme high performance ke saath efficiency aur reliability bhi ho.


📋 Technical Specification Table

Category Specification
Model TC-C34KN Spec: I3/A/E/Y/2.8-12mm/V4.2
Series SuperLite Series
Camera Type 4MP Motorized IR Dome Camera
Housing Material Plastic
Image Sensor 1/2.9" CMOS
Minimum Illumination Color: 0.02Lux@(F1.6, AGC ON), B/W: 0Lux with IR
Shutter Time 1s ~ 1/100000s
Day/Night IR-cut filter with auto switch (ICR)
WDR 120dB
S/N Ratio >40dB
Angle Adjustment Pan: 0°–350°, Tilt: 0°–70°, Rotate: 0°–350°
Lens Type Motorized
Focal Length 2.8–12mm
Lens Mount Φ14
Aperture F1.6 (Fixed)
Field of View H: 104.7°–30.3°, V: 56.5°–17.2°, D: 120.9°–34.8°
DORI Distance (Wide) Detect: 56.0m, Observe: 22.2m, Recognize: 11.2m, Identify: 5.6m
DORI Distance (Tele) Detect: 240.0m, Observe: 95.2m, Recognize: 48.0m, Identify: 24.0m
IR LEDs 4 LEDs
IR Range Up to 30 meters
Wavelength 850nm
Video Compression S+265 / H.265 / H.264B / H.264M / H.264H
Video Bit Rate 32kbps ~ 6Mbps
Audio Compression G.711A / G.711U
Audio Sampling Rate 8kHz
Max. Resolution 4MP, 2688×1520 @25fps
Main Stream PAL: 25fps (2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720)
NTSC: 24/30fps variants
Sub Stream PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Image Enhancements BLC, HLC, AGC, 3D DNR, Defog
White Balance Auto / Semi-Auto / Manual / Scene Modes (Sunshine, Nature Light, etc.)
ROI 8 Rectangular Static Areas
OSD Overlay 1 Region, 1 Line, Max 48 Characters (or 16 Chinese), Fonts: 16×16, 32×32, 48×48, 64×64
Privacy Mask 4 Black Static Areas
Alarms General: Motion Detection, Mask Alarm
Exception: Disk Full, Disk Error, IP Conflict
Linkage Methods Trigger Recording, Capture, Notify Surveillance Center
Video Analytics Tripwire, Perimeter Detection, 1 Behavior Rule
Scene Modes 2 Scene Profiles
Network Protocols HTTP, HTTPS, TCP/IP, UDP, UPnP, DHCP, DNS, DDNS, FTP, IPv4, NTP, TLS v1.2, QoS, SSH, Unicast
System Compatibility ONVIF (Profile S/T/G), SDK, CGI, Milestone, RTSP, P2P (excludes Profile G)
Remote Connections ≤2
Client Software Easy7 VMS, EasyLive Plus
Web Browsers IE10+, Firefox 52+, Edge 89+, Safari 11+, Chrome 57+
Network Interface 1× RJ-45 (10/100 Base-T)
Built-in Mic Yes
Reset Button Yes (Built-in)
Storage Supports microSD/microSDHC/microSDXC up to 512GB
RTC Yes
Operating Temp. -30℃ ~ 60℃ (-22℉ ~ 140℉)
Operating Humidity ≤95% RH
Storage Temp./Humidity -30℃ ~ 60℃ / 10% ~ 95% RH (Non-condensing)
Power Supply DC12V±25%, Max. 6.5W; PoE (IEEE 802.3af), Max. 7W
Protection IP66, Surge: 4000V, ESD: 6000V

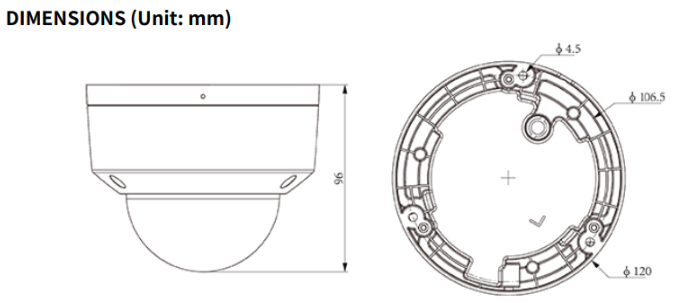

Product Dimensions 120 × 120 × 96 mm
Package Dimensions 140 × 140 × 120 mm
Gross Weight 0.5kg
Release Date 2024.06.24
