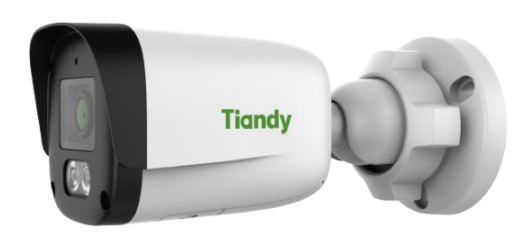

TC-C34QN Spec:I5W/E/Y/4mm/V4.2 Tiandy Spark Bullet 4MP Fixed 4mm

TC-C34QN Spec:I5W/E/Y/4mm/V4.2 Tiandy Spark Bullet 4MP Fixed 4mm

Sold by: MA Tech

Regular price PKR 18,018
Regular price Sale price PKR 18,018
Sale Sold out
Shipping calculated at checkout.

TC-C34QN 4MP Fixed IR Wi-Fi Bullet Camera (2.8mm)

Wi-Fi Series | Model: I5W/WIFI/Eu/2.8mm/V4.0


Key Features

  • 4MP Resolution (2560×1440 @ 20fps)
  • Wi-Fi Connectivity (IEEE802.11 b/g/n, up to 50m)
  • Two-Way Audio: Built-in Mic & Speaker
  • Smart IR & Whitelight: IR up to 50m, White LEDs up to 15m
  • Starlight Low Light Performance: 0.02 Lux @ F2.0 (Color)
  • H.265 / S+265 / H.264 Video Compression
  • microSD Storage: Up to 512GB
  • Audio & Visual Alarm Linkage
  • Rugged Build: IP67 Weatherproof
  • Operating Temp: -30°C to +60°C

📸 Camera Specs

Sensor 1/2.8" CMOS
Min. Illumination Color: 0.02 Lux @ F2.0 (AGC ON)
B/W: 0 Lux with IR
Shutter Time 1s ~ 1/100,000s
IR-Cut Filter Yes (ICR)
Smart IR Yes
WDR DWDR
S/N Ratio >40dB
Angle Adjustment Pan: 0–360°
Tilt: 0–80°
Rotate: 0–360°

🔍 Lens

Type Fixed Focal
Focal Length 2.8mm
Mount M12
Aperture F1.6 (Fixed)
Field of View H: 101.3°
V: 56.8°
D: 113.9°

📏 DORI Distance

Detect 45.71m
Observe 18.14m
Recognize 9.14m
Identify 4.57m

💡 Illumination

IR LEDs 2
IR Distance Up to 50m
IR Wavelength 850nm
White LEDs 2
Whitelight Distance Up to 15m

🎞️ Video & Audio

Max. Resolution 4MP, 2560×1440 @ 20fps
Main Stream PAL & NTSC: 20fps (1440p, 1296p, 1080p, 720p, 704×576, 640×480)
Sub Stream PAL/NTSC: 20fps (704×576 to 352×240)
Video Compression S+265 / H.265 / H.264B/M/H
Bitrate 32Kbps – 4Mbps
Audio Compression G.711A / G.711U
Sample Rate 8kHz / 16kHz
Built-in Mic Yes
Built-in Speaker Yes

🖼️ Image Features

Enhancement BLC, HLC, AGC, 3D DNR, Defog
White Balance Auto, Semi-Auto, Manual, Lighting Presets
OSD 1 Region, 1 Line, Up to 48 Characters or 16 Chinese Characters
Privacy Mask 4 Regions

🧠 Smart Features

Alarms Voltage Alarm, Disk Full, R/W Error, IP Conflict
Linkage Methods Trigger Sound, Recording, Capture, Notify Center, Alarm Output
Video Analytics Tripwire, Perimeter
Scene Behavior Rules Analyze In 1 Scene

🌐 Network & Wi-Fi

ANR Yes
Protocols HTTP, TCP/IP, UDP, ICMP, DHCP, DNS, NTP, TLS v1.2, IPv4, SSH, FTP
ONVIF Profiles S/T
Remote Connections ≤ 2
Client Software Easy7 VMS, EasyLive Plus
Browser Support IE10+, Firefox52+, Chrome57+, Edge89+, Safari11+

📶 Wi-Fi Specifications

Standard IEEE 802.11 b/g/n
Frequency 2.4GHz – 2.4835GHz
Bandwidth 20/40 MHz
Security WPA-PSK / WPA2-PSK
Transmission Distance Up to 50m (Environment Dependent)

🔌 Interfaces

Network Port 1 × RJ45 (10/100 Mbps)
Reset Button Yes
Onboard Storage microSD/SDHC/SDXC up to 512GB

⚙️ General

Material Metal + Plastic Housing
Weatherproofing IP67, Surge: 4000V, ESD: 6000V
Power Supply DC12V ±25%, Max. 7.5W
Operating Temp -30℃ ~ 60℃ (-22℉ ~ 140℉)
Humidity ≤ 95% RH

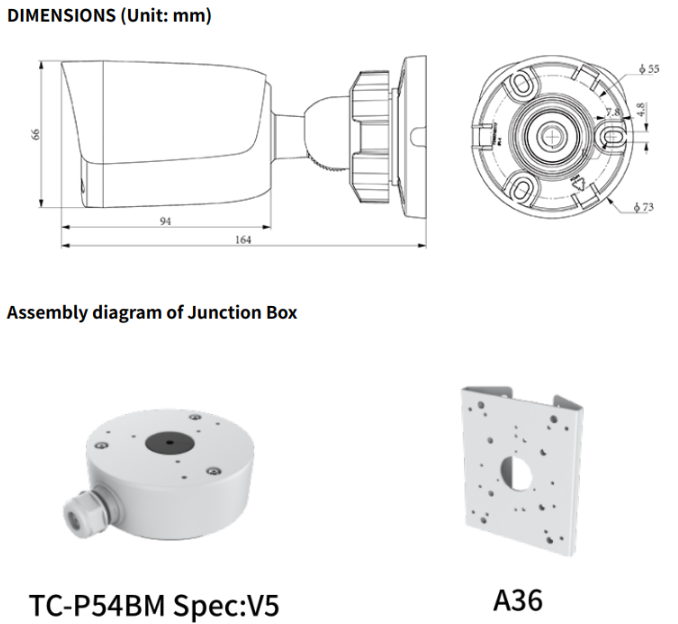

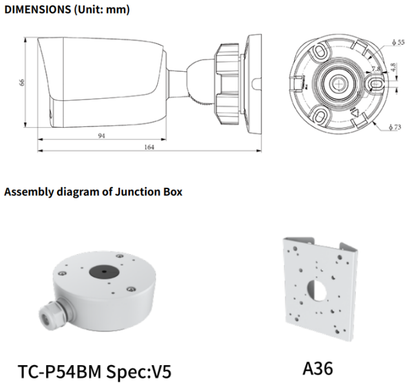

Dimensions 164 × 73 × 73 mm
Package Dimensions 215 × 95 × 120 mm
Gross Weight 0.46kg

🌍 Language Support (3 Languages)

  • English
  • Simplified Chinese
  • Vietnamese
