TC-C34QN Spec: I5W/WIFI/4mm/V4.0 Wi-Fi Bullet Color Maker 4MP Fixed 4mm IP67 (New Arrival)
TC-C34QN Spec: I5W/WIFI/4mm/V4.0 Wi-Fi Bullet Color Maker 4MP Fixed 4mm IP67 (New Arrival)
Sold by: MA Tech
📄 Product Description

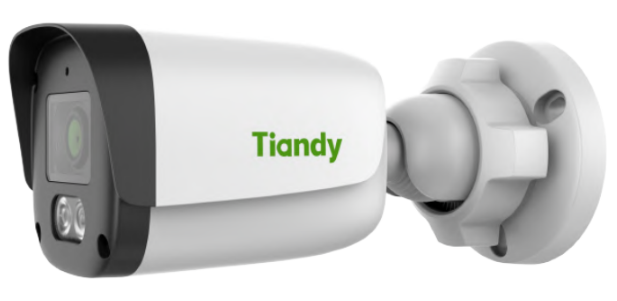

The Tiandy TC-C34QN from the SuperLite Series is a 4MP fixed-lens bullet camera designed for reliable performance in various security applications. It offers 2688×1520 resolution at 25fps, delivering crisp, detailed images. Thanks to S+265, H.265, and H.264 video compression, it ensures efficient use of bandwidth and storage without sacrificing quality.
Built with a durable metal and plastic housing and rated IP67, this camera can withstand harsh weather conditions. It features Smart IR up to 50m, white LEDs for up to 15m, and excellent low-light capability down to 0.02Lux in color mode. With a fixed 4mm lens, it provides a horizontal field of view of 81.6°, and supports intelligent analytics such as tripwire and perimeter intrusion detection.
Equipped with a built-in microphone, PoE/DC12V power options, and video/audio analytics, it’s suitable for small to medium-sized surveillance deployments. Compatibility with ONVIF, P2P, and major VMS platforms ensures seamless integration.
Tiandy TC-C34QN jo ke SuperLite Series ka hissa hai, ek 4MP fixed-lens bullet camera hai jo mukhtalif security applications mein reliable performance deta hai.
Yeh camera 2688×1520 resolution @ 25fps provide karta hai, jis se bohat clear aur detailed tasveer milti hai. Advanced video compression technologies jaise S+265, H.265, aur H.264 ki wajah se bandwidth aur storage ki behtareen bachat hoti hai bina quality ko compromise kiye.
Iska housing metal aur plastic ka bana hua hai jo IP67-rated hai, is liye yeh tough weather conditions ko easily bardasht kar sakta hai.
- Smart IR illumination 50 meters tak ki night vision deta hai,
- White LEDs 15 meters tak illumination provide karti hain,
- Aur iska low-light sensitivity 0.02Lux (color mode) tak bohat acha hai.
Fixed 4mm lens ke sath yeh camera 81.6° horizontal field of view deta hai, aur intelligent analytics jese tripwire aur perimeter intrusion detection ko support karta hai.
Built-in microphone, PoE aur DC12V power options, aur video/audio analytics ke sath, yeh camera chhoti se medium size surveillance needs ke liye perfect hai.
ONVIF, P2P, aur major VMS platforms ke sath compatibility ki wajah se yeh aasani se kisi bhi system mein integrate ho jata hai.
📊 Technical Specifications
Category | Specification |
Model | TC-C34QN Spec: I5W/E/Y/4mm/V4.2 |
Series | SuperLite Series |
Image Sensor | 1/2.9" CMOS |
Max. Resolution | 4MP (2688×1520) @25fps |
Min. Illumination | Color: 0.02Lux @(F1.6, AGC ON); B/W: 0Lux with IR |
Shutter Time | 1s ~ 1/100000s |
Day/Night Mode | IR-cut filter with auto switch (ICR) |
WDR | 120dB |
S/N Ratio | >40dB |
Smart IR | Yes |
IR LEDs / Distance | 2 pcs / Up to 50m |
White LEDs / Distance | 2 pcs / Up to 15m |
IR Wavelength | 850nm |
Lens Type | Fixed focal lens |
Focal Length | 4mm |
Aperture | F1.6 (Fixed) |
Lens Mount | M12 |
Field of View | H: 81.6°, V: 43.1°, D: 94.2° |
DORI Distance | Detect: 80.0m, Observe: 31.7m, Recognize: 16.0m, Identify: 8.0m |
Image Enhancements | BLC, HLC, AGC, 3D DNR, Defog |
White Balance | Auto/Semi-Auto/Manual + Presets (Sunshine, Nature Light, Warm/Daylight Lamp, etc.) |
Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
Video Bitrate | 32Kbps ~ 6Mbps |
Audio Compression | G.711A / G.711U / ADPCM_D |
Audio Sampling Rate | 8kHz / 32kHz / 48kHz |
Main Stream | PAL: 25fps (2688×1520 to 1280×720); NTSC: 24fps/30fps depending on resolution |
Sub Stream | PAL: 25fps; NTSC: 30fps (Resolutions from 704×576 to 352×240) |
ROI Encoding | 8 static rectangular areas |
OSD Support | 1 region, 1 line; up to 48 characters or 16 Chinese characters |
Privacy Mask | 4 black static areas |
Video Analytics | Tripwire, Perimeter |
General Alarms | Motion Detection, Mask Alarm |
Exception Alarms | IP Address Conflict |
Alarm Linkage | Trigger warm light, capture, alarm output |
Behavior Rules | Up to 2 in 1 scene |
Built-in Mic | Yes |
Angle Adjustment | Pan: 0–360°, Tilt: 0–80°, Rotation: 0–360° |
Network Protocols | HTTP, HTTPS, TCP/IP, FTP, NTP, SSH, IPv4, QoS, TLS v1.2, and others |
System Compatibility | ONVIF (Profile S/T), P2P (exclusive with Profile G), SDK, CGI, RTSP, Milestone |
Remote Users | Up to 2 |
PC Client | Easy7 VMS |
Mobile Client | EasyLive Plus |
Supported Browsers | IE10+, Firefox 52+, Edge 89+, Safari 11+, Chrome 57+ |
Network Interface | 1 × RJ-45 (10/100 Base-T) |
Power Supply | DC12V ±25% (Max. 6.5W); PoE IEEE 802.3af (Max. 7W) |
Operating Temperature | -30°C ~ +60°C (-22°F ~ +140°F) |
Operating Humidity | ≤95% RH |
Storage Conditions | -30°C ~ +60°C; 10% ~ 95% RH (non-condensing) |
Surge / ESD Protection | Surge: 4000V; ESD: 6000V |
Ingress Protection | IP67 |
Housing Material | Metal + Plastic |

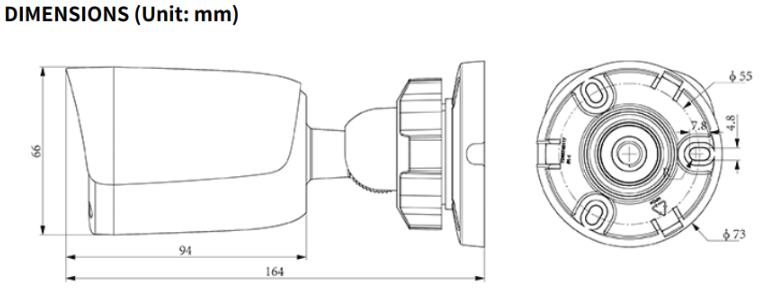

Dimensions (Camera) | 164mm (L) × 73mm (W) × 73mm (H) |
Package Dimensions | 180mm (L) × 90mm (W) × 95mm (H) |
Weight | 0.3kg (gross) |
Date of Specification | 2024.06.24 |
