TC-C34UN Spec:I8/A/E/Y/2.8-12mm/V4.2 Tiandy Superlite Bullet 4MP Motorized Lense 2.8-12mm
TC-C34UN Spec:I8/A/E/Y/2.8-12mm/V4.2 Tiandy Superlite Bullet 4MP Motorized Lense 2.8-12mm
Sold by: MA Tech

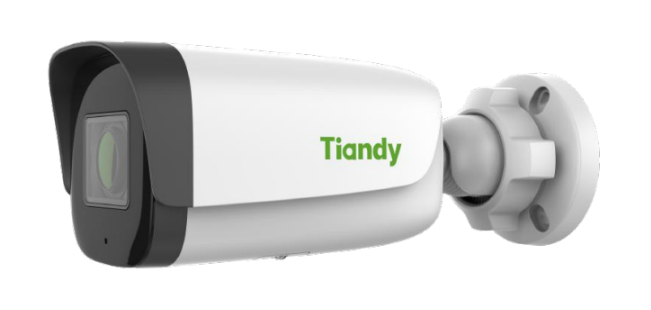

TC-C34UN 4MP Motorized IR Bullet Camera — Description & Specifications
Product Description:
The TC-C34UN is a high-performance 4MP motorized IR bullet camera designed for robust outdoor surveillance. It features a durable metal and plastic housing with an IP67 rating for weather resistance. The camera offers a motorized 2.8-12mm lens with a wide field of view and supports up to 2688×1520 resolution at 25fps. Equipped with Smart IR technology and an 80-meter IR range, it ensures clear images even in low-light conditions. It supports advanced video compression standards (S+265, H.265, H.264), built-in microphone audio, and up to 512GB microSD card storage. The camera also supports intelligent analytics like tripwire and perimeter detection, ideal for security applications. With wide operating temperature tolerance and PoE support, it is suitable for diverse outdoor environments.
TC-C34UN aik high-performance 4MP motorized IR bullet camera hai jo specially outdoor surveillance ke liye design ki gayi hai. Iska metal aur plastic ka durable housing IP67 weatherproof rating ke saath aata hai, jo ise barish, dhool aur har tarah ke mausam mein reliable banata hai.
Camera mein 2.8–12mm motorized lens hai jo wide field of view aur zoom ki flexibility deta hai. Yeh camera 2688×1520 resolution @25fps tak ki high-quality video record karta hai. Smart IR technology aur 80 meter IR range ki wajah se andheray mein bhi clear aur sharp images milti hain.
Is camera mein built-in microphone hai audio recording ke liye, aur yeh 512GB microSD card tak ki local storage support karta hai. Saath hi, advanced video compression standards jaise S+265, H.265, aur H.264 ka support bhi hai jo bandwidth aur storage save karta hai.
Intelligent features jaise tripwire aur perimeter detection ise aur bhi smart bana dete hain, jo ise security-sensitive locations ke liye ideal banata hai. PoE support aur extreme temperature tolerance ke saath yeh camera har tarah ke outdoor environments mein easily install kiya ja sakta hai.
Category | Specification |
Model | TC-C34UN Spec: I8/A/E/Y/2.8-12mm/V4.2 |
Series | SuperLite Series |
Type | 4MP Motorized IR Bullet Camera |
Housing | Metal + Plastic |
Image Sensor | 1/2.9" CMOS |
Minimum Illumination | Color: 0.02Lux@(F1.6, AGC ON), B/W: 0Lux with IR |
Shutter Time | 1s to 1/100000s |
Day & Night | IR-cut filter with auto switch (ICR) |
WDR | 120dB |
Signal-to-Noise Ratio | >40dB |
Angle Adjustment | Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360° |
Lens Type | Motorized |
Focal Length | 2.8–12mm |
Lens Mount | Φ14 |
Aperture | F1.6 (Fixed) |
Field of View (FOV) | Horizontal: 104.7°–30.3°, Vertical: 56.5°–17.2°, Diagonal: 120.9°–34.8° |
DORI Distances (Wide) | Detect: 56.0m, Observe: 22.2m, Recognize: 11.2m, Identify: 5.6m |
DORI Distances (Tele) | Detect: 240.0m, Observe: 95.2m, Recognize: 48.0m, Identify: 24.0m |
IR LEDs | 4 |
IR Range | Up to 80m |
Wavelength | 850nm |
White LEDs | N/A |
Video Compression | S+265, H.265, H.264B, H.264M, H.264H |
Video Bit Rate | 32 kbps to 6 Mbps |
Audio Compression | G.711A, G.711U |
Audio Sampling Rate | 8 kHz |
Max Resolution | 2688×1520 |
Main Stream Frame Rate | PAL: 25fps (2688×1520, 2304×1296, 1920×1080, 1280×720) |
NTSC: 30fps (same resolutions) | |
Sub Stream Frame Rate | PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
NTSC: 30fps (704×480, 704×240, 640×360, 352×240) | |
BLC / HLC / AGC | Yes |
3D DNR | Yes |
White Balance | Auto, Semi-Auto, Manual |
OSD | 1 region, 1 line; max 48 characters or 16 Chinese characters |
Privacy Mask | 4 static black areas |
Defog | Yes |
Network Protocols | HTTP, TCP/IP, UDP, ICMP, DHCP, DNS, NTP, IPv4, SSH, FTP, RTSP |
ONVIF Compatibility | Profile S, Profile T |
P2P | Yes (Mutually exclusive with Profile G) |
Remote Connections | Up to 2 |
Client Support | Easy7 VMS, EasyLive Plus |
Web Browser Support | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
Network Interface | 1 × RJ45 10/100 Mbps |
Built-in Mic | Yes |
Reset Button | Yes |
On-board Storage | microSD / microSDHC / microSDXC card support, up to 512GB |
Operating Temperature | -30℃ to 60℃ |
Operating Humidity | ≤95% RH |
Storage Temperature | -30℃ to 60℃ |
Storage Humidity | 10% to 95% (non-condensing) |
Power Supply | DC12V ± 25%, Max 7.5W |
PoE IEEE 802.3af, Max 8.5W | |
Protection | IP67, Surge Protection, ESD |

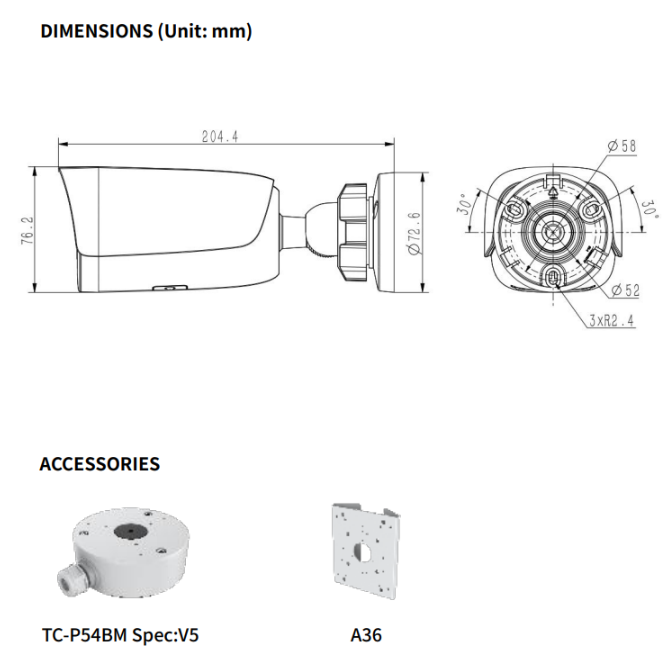

Accessories | TC-P54BM Junction Box, A36 Pole Mount |
