TC-C34WP Spec:W/E/Y/4mm/V4.0 Tiandy Lite Bullet 4MP Fixed 4mm
TC-C34WP Spec:W/E/Y/4mm/V4.0 Tiandy Lite Bullet 4MP Fixed 4mm
Sold by: MA Tech

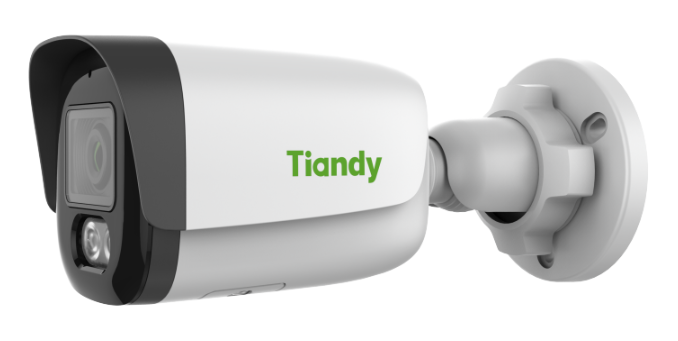

TC-C34WP 4MP Fixed Color Maker Bullet
Camera – Lite Series
📘 Product Description
The TC-C34WP is a rugged, fixed-lens 4MP bullet camera designed for high-definition surveillance in extreme outdoor conditions. Featuring a 2.8mm F1.0 lens and two white LEDs for 15m illumination, this camera delivers exceptional full-color clarity even in ultra-low light environments — as low as 0.0004Lux.
Packed in a metal+plastic IP67-rated housing, it offers intelligent video analytics (tripwire, perimeter), smart alarms, and full compatibility with mainstream VMS and ONVIF profiles. With S+265 video compression, a built-in microphone, local storage up to 512GB, and wide operating range (-40°C to 65°C), this camera is optimized for reliable 24/7 security in harsh climates.
TC-C34WP aik mazboot aur high-performance 4MP fixed-lens bullet camera hai, jo extreme outdoor conditions mein high-definition surveillance ke liye design ki gayi hai. Is camera mein 2.8mm F1.0 lens laga hua hai aur iske sath 2 white LEDs bhi hain jo 15 meter tak roshni provide karte hain, jiski wajah se yeh full-color video even ultra-low light (sirf 0.0004Lux) mein bhi record kar sakta hai.
Camera ka metal + plastic body IP67 rated hai, jo ise dustproof aur waterproof banata hai — yani yeh har mausam mein kaam karta hai. Isme intelligent video analytics features jaise tripwire aur perimeter detection, smart alarms, aur ONVIF/VMS compatibility bhi shamil hai.
Is camera mein S+265 compression, built-in microphone, aur 512GB tak local storage ki support hai. Yeh -40°C se le kar +65°C tak ke hararat mein kaam karta hai, jo ise harsh climates ke liye ideal banata hai. TC-C34WP aik reliable aur advanced 24/7 surveillance solution hai un jagahon ke liye jahan security compromise nahi ki ja sakti.
📋 Technical Specifications Table
Category | Specification |
Model | TC-C34WP Spec: W/E/Y/2.8mm/V4.0 |
Series | Lite Series |
Housing | Metal + Plastic |
Image Sensor | 1/2.8" CMOS |
Min. Illumination | Color: 0.0004Lux@(F1.0, AGC ON), B/W: 0Lux with IR |
Shutter Time | 1s ~ 1/100000s |
Day/Night Mode | Fixed IR-cut filter |
Wide Dynamic Range (WDR) | 120dB |
S/N Ratio | >42dB |
Angle Adjustment | Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360° |
Lens Type | Fixed focal lens |
Focal Length | 2.8mm |
Lens Mount | M12 |
Aperture | F1.0 (Fixed) |
Field of View | H: 100.1°, V: 57.8°, D: 115.6° |
DORI Distance | Detect: 56.0m, Observe: 22.2m, Recognize: 11.2m, Identify: 5.6m |
Illumination | 2 White LEDs |
White Light Range | Up to 15 meters |
Wavelength | 850nm |
Max Resolution | 4MP (2592×1520@25fps) |
Main Stream (PAL) | 25fps: 2592×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720 |
Main Stream (NTSC) | 24fps: 2592×1520, 2560×1440; 30fps: 2304×1296, 1920×1080, 1280×720 |
Sub Stream (PAL) | 25fps: 704×576, 704×288, 640×360, 352×288 |
Sub Stream (NTSC) | 30fps: 704×480, 704×240, 640×360, 352×240 |
Video Compression | S+265, H.265, H.264B, H.264M, H.264H |
Video Bitrate | 32kbps ~ 6Mbps |
Audio Compression | G.711A, G.711U, ADPCM_D |
Audio Sampling Rates | 8kHz / 32kHz / 48kHz |
Built-in Mic | Yes |
BLC / HLC / AGC | Yes |
3D DNR / Defog | Yes |
White Balance Modes | Auto, Semi-Auto, Manual, Sunshine, Nature Light, Warmlight Lamp, etc. |
ROI | 8 static rectangular areas |
OSD Overlay | 1 region, 1 line, max 48 characters (or 16 Chinese), font sizes 16×16 ~ 64×64 |
Privacy Mask | 4 black static areas |
General Alarms | Motion Detection, Mask Alarm |
Exception Alarms | Disk Full, Disk R/W Error, IP Address Conflict |
Alarm Linkage | Trigger Recording, Capture, Notify Surveillance Center |
Video Analytics | Tripwire, Perimeter |
Behavior Analysis | 1 rule per scene |
Scene Modes | 2 |
ANR (Automatic Network Replenishment) | Yes |
Network Protocols | HTTP, HTTPS, TCP/IP, UDP, FTP, DHCP, DNS, DDNS, UPnP, NTP, TLS v1.2, IPv4, SSH, ARP |
System Compatibility | ONVIF (Profiles S/T/G), SDK, CGI, RTSP, Milestone, P2P (exclusive with Profile G) |
Remote Connections | ≤2 |
Client Software | Easy7 VMS, EasyLive Plus |
Web Browser Support | IE10+, Firefox 52+, Edge 89+, Safari 11+, Chrome 57+ |
Ethernet Interface | 1× RJ-45 (10/100 Base-T) |
Reset Button | Yes |
Onboard Storage | microSD/microSDHC/microSDXC card, up to 512GB |
RTC (Real-Time Clock) | Yes |
Language Support | 19 languages (English, Chinese, Spanish, Arabic, Turkish, etc.) |
Operating Temperature | -40°C ~ 65°C (-40℉ ~ 149℉) |
Operating Humidity | ≤95% RH |
Storage Temperature | -40°C ~ 65°C |
Storage Humidity | 10% ~ 95% RH (non-condensing) |
Power Supply | DC12V±25%, Max. 6W; PoE IEEE 802.3af, Max. 7W |
Protection | IP67, Surge: 4000V, ESD: 6000V |

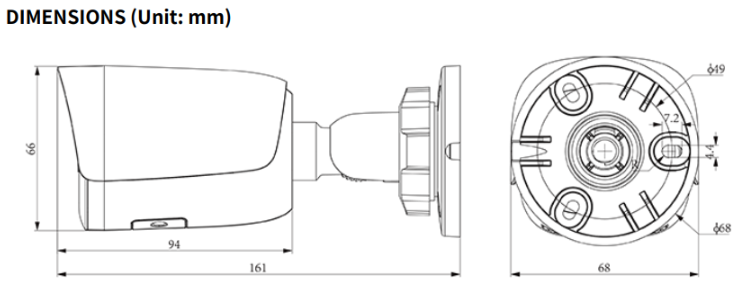

Device Dimensions (L×W×H) | 161 × 68 × 66 mm |
Package Dimensions | 215 × 95 × 120 mm |
Gross Weight | 0.47kg |
Release Date | 2024.06.24 |
