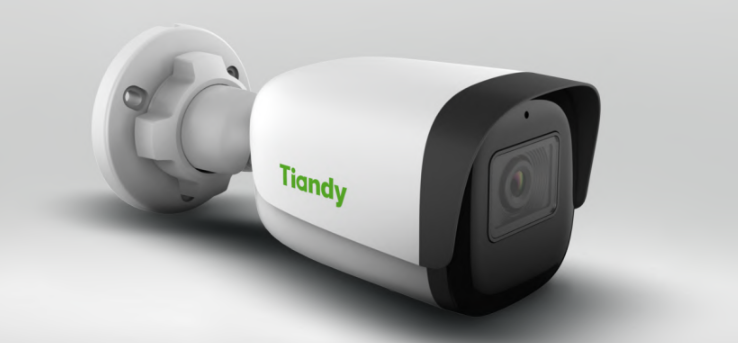

TC-C34WS – 4MP Fixed Starlight IR Bullet Camera
Lite Series | Model Spec: I5/E/Y/(M)/2.8mm(4mm)
📘 Product Description
The Tiandy TC-C34WS is a Lite Series 4MP Fixed Starlight IR Bullet Camera, offering ultra-low-light performance and Smart IR technology with an IR range of up to 50 meters. Featuring metal+plastic housing (optional all-metal) and IP67-rated protection, it's designed for durable outdoor surveillance. With support for tripwire, perimeter detection, built-in microphone, and local storage (up to 512GB), this camera is an excellent fit for intelligent perimeter monitoring. It delivers crisp video at 2592x1520 resolution and performs reliably in extreme environments with operating temperatures from -35°C to +65°C.
Tiandy TC-C34WS aik Lite Series 4MP Fixed Starlight IR Bullet Camera hai jo ultra-low-light performance ke sath aati hai. Isme Smart IR technology mojood hai jo andheray mein bhi clear video record karti hai, aur iska IR range 50 meter tak ka hai.
Is camera ka metal + plastic housing (aur optional all-metal variant) use outdoor use ke liye durable banata hai. Yeh IP67 rated hai, jo ise pani aur dhool se mehfooz rakhta hai. Camera mein tripwire aur perimeter intrusion detection jaise smart security features, built-in mic ke sath audio recording, aur 512GB tak ka local storage support bhi mojood hai.
Yeh camera 2592x1520 resolution par sharp aur clear video deliver karta hai. Iska operating temperature -35°C se +65°C tak hai, jiski wajah se yeh extreme outdoor environments mein bhi reliable surveillance provide karta hai. Yeh camera intelligent perimeter monitoring ke liye ek behtareen choice hai.
📋 Technical Specifications Table
Category | Specification |
Model | TC-C34WS (2.8mm / 4mm) |
Series | Lite Series |
Housing Material | Default: Metal+Plastic; Optional: Full Metal (M version) |
Image Sensor | 1/2.8" CMOS |
Signal System | PAL / NTSC |
Min. Illumination | Color: 0.002Lux@F1.6 (AGC ON); B/W: 0Lux with IR |
Shutter Speed | 1s ~ 1/100,000s |
Day & Night | Dual IR Cut Filter with Auto Switch |
WDR | 120dB |
S/N Ratio | >42dB |
Angle Adjustment | Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360° |
Lens Type | Fixed |
Focal Length Options | 2.8mm or 4mm |
Lens Mount | M12 |
Aperture | F1.6 (Fixed) |
Field of View (FOV) | 2.8mm: 93.8° H; 4mm: 78° H |
IR LEDs | 2 |
IR Range | Up to 50 meters |
IR Wavelength | 850nm |
Whitelight | N/A |
Max. Resolution | 2592 × 1520 @ 25fps |
Main Stream | PAL: 2592×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720 @25fps |
NTSC: 2592×1520, 2560×1440 @25fps; 2304×1296, 1920×1080, 1280×720 @30fps | |
Sub Stream | PAL: 704×576, 704×288, 640×360, 352×288 @25fps |
NTSC: 704×480, 704×240, 640×360, 352×240 @30fps | |
Third Stream | Not Available |
Video Compression | S+265 / H.265 / H.264 |
Bitrate (Video) | 32 Kbps ~ 6 Mbps |
Audio Compression | G.711A / G.711U / ADPCM |
Audio Bitrate | 8 Kbps ~ 48 Kbps |
Image Settings | Saturation, Brightness, Contrast, Sharpness (adjustable via client/web) |
Image Enhancements | BLC, 3D DNR, HLC |
Privacy Masking | Yes, 4 Regions |
Defog | Smart Defog |
OSD Overlay | Up to 3 Regions, Custom Text (Date, Time, Week), Sizes: 16x16 ~ 64x64 |
Smart Features | Tripwire, Perimeter |
Alarm Triggers | Motion Detection, Mask Alarm, IP Conflict |
Audio Input | Built-in Microphone |
Reset Button | Yes |
Onboard Storage | MicroSD/SDHC/SDXC up to 512GB |
ANR Support | Yes (with Tiandy ANR-compatible NVR) |
Network Protocols | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, Multicast, IPv4, NTP, UDP, Telnet |
System Compatibility | ONVIF (Profiles S/T/G), SDK, CGI (IE), P2P (exclusive with Profile G) |
Remote Connections | Max 7 Clients |
Client Software | Easy7, EasyLive |
Web Interface | Web5 (Browser: IE only) |
Languages Supported | 15 Languages including English, Russian, Spanish, Korean, Chinese, French, etc. |
Power Supply | DC12V±25%, PoE (IEEE 802.3af) |
Power Consumption | Max 6W (DC12V), Max 7W (PoE) |
Operating Temperature | -35°C to +65°C |
Operating Humidity | 0% ~ 95% RH (non-condensing) |
Protection Rating | IP67, Lightning / Surge / Voltage Transient Protection (EN 55035:2017) |
Heater | N/A |

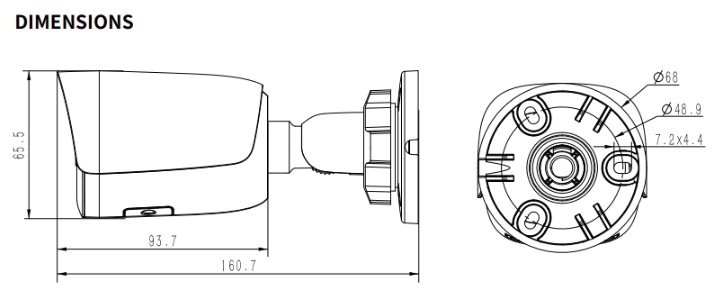

Dimensions | 160.8 × 68 × 74.5 mm (6.33" × 2.68" × 2.93") |
Weight | Metal+Plastic: 0.3kg (0.66lb); Metal: 0.48kg (1.06lb) |

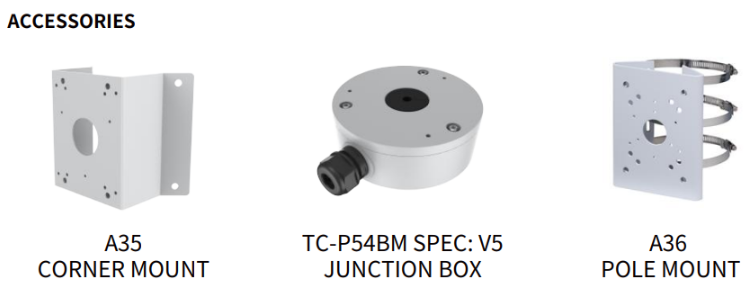

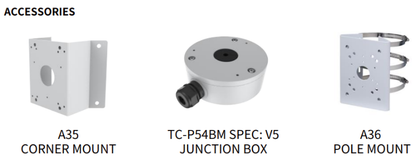

Accessories | A35 Corner Mount, TC-P54BM Junction Box, A36 Pole Mount |
