TC-C34XN Spec:I3/E/Y/2.8mm/V5.0 Tiandy Spark S+265 Turret 4MP Fixed 2.8mm PoE with DC Cable
TC-C34XN Spec:I3/E/Y/2.8mm/V5.0 Tiandy Spark S+265 Turret 4MP Fixed 2.8mm PoE with DC Cable
Sold by: MA Tech

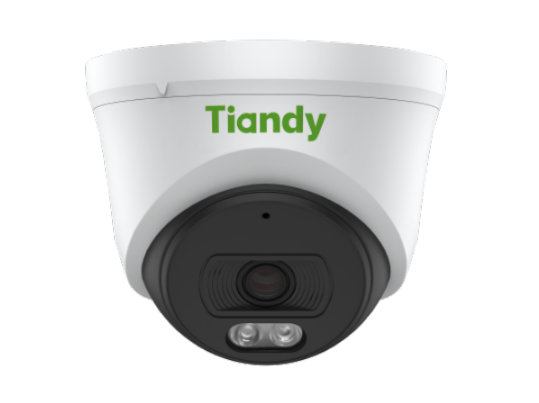

📷 Tiandy TC-C34XN (I3/E/Y/2.8mm/N/V5.0)
4MP Fixed Lens Turret Camera | Spark Series
✅ Key Features
- 4MP Resolution: Up to 2560×1440 @ 20fps
- 2.8mm Fixed Lens
- Smart IR: IR range up to 30m
- Low Light Sensitivity:
- Color: 0.02Lux @ F1.6 (AGC ON)
- B/W: 0Lux with IR
- Video Compression: S+265 / H.265 / H.264
- Built-in Microphone
- Digital WDR | BLC | 3D DNR | HLC
- Metal + Plastic Housing
- Weatherproof (IP Rating): Not specified
- Power over Ethernet (PoE, IEEE 802.3af)
- Operating Temp: -30°C ~ +60°C
- Power Consumption: ≤ 5W
📸 Camera Specifications
Image Sensor | 1/3" CMOS |
Min. Illumination | Color: 0.02Lux @ F1.6 (AGC ON) |
B/W: 0 Lux with IR | |
Shutter Time | 1s ~ 1/100,000s |
Day/Night Switching | Dual IR Cut Filter with Auto Switch (ICR) |
WDR | Digital WDR |
Angle Adjustment | Not Specified |
🔍 Lens Details
Type | Fixed |
Focal Length | 2.8mm |
Aperture | F1.6 (Fixed) |
Lens Mount | M12 |
Field of View | H: 92.8°, V: 52.8°, D: 104.8° |
💡 IR & Lighting
IR LEDs | 2 |
IR Range | Up to 30m |
Wavelength | 850nm |
White LEDs | N/A |
🎞️ Video & Audio Compression
Video Compression | S+265, H.265, H.264B/M/H |
Video Bit Rate | 32 kbps ~ 6 Mbps |
Audio Compression | G.711A, G.711U |
Audio Sampling | 8kHz |
🖼️ Image Settings & Enhancements
- Adjustable: Saturation, Brightness, Contrast, Sharpness
- Enhancements: BLC, 3D DNR, HLC, Defog
- OSD: Time, Date, Region (1 area, up to 48 characters)
- Privacy Masking: 4 regions
- ROI: Not available
- Picture Overlay: Not available
📡 Streaming Capabilities
Max. Resolution | 2560 × 1440 |
Main Stream | PAL/NTSC: 20fps @ 2560×1440, 2304×1296, 1920×1080, 1280×720 |
Sub Stream | PAL: 704×576, 704×288, 352×288, 640×360 @ 20fps |
NTSC: 704×480, 704×240, 352×240, 640×360 @ 20fps | |
Third Stream | Not Supported |
🛠️ Smart Features
Alarm Triggers | Motion Detection, IP Conflict |
Analytics | Not supported |
Behavior Analysis | Not supported |
Alarm Linkage | Triggered capture, white light, etc. (not specified) |
🌐 Network & Integration
Protocols | HTTP, TCP/IP, UDP, ICMP, DHCP, DNS, NTP, IPv4, Telnet, RTSP |
Remote Access | Max 2 users |
Software Clients | Easy7 (PC), EasyLive Plus (Mobile) |
Browser Support | IE, Firefox, Edge, Safari, Chrome |
Standards | CGI (ONVIF not listed) |
ANR Support | Not specified |
🔌 Interfaces
Ethernet | 1 × RJ-45 (10/100 Mbps) |
Audio I/O | Built-in Mic only |
Alarm I/O | Not available |
Reset Button | Not specified |
SD Card Slot | Not available |
Speaker | Not included |
🌦️ Environmental & Electrical
Operating Temp. | -30°C ~ +60°C |
Humidity | 0 ~ 95% RH (non-condensing) |
Power Supply | PoE (IEEE 802.3af) |
Power Consumption | ≤ 5W |
📐 Mechanical Details
Housing Material | Metal + Plastic |
Dimensions | Ø117 × 96 mm (D × H) |
Package Size | 138 × 138 × 110 mm |
Net Weight | 0.24 kg |
Gross Weight | 0.34 kg |
🌍 Languages Supported
English, Arabic, Spanish, Korean, Japanese, Portuguese, French, Traditional Chinese
(8 Languages)
📦 Model Information
Available Model:TC-C34XN SPEC: I3/E/Y/2.8MM/N/V5.0
