TC-C34XN Spec:I3W/E/Y/2.8mm/V4.2 Tiandy Spark Turret 4MP Fixed 2.8mm

TC-C34XN Spec:I3W/E/Y/2.8mm/V4.2 Tiandy Spark Turret 4MP Fixed 2.8mm

Sold by: MA Tech

Regular price PKR 18,018
Regular price Sale price PKR 18,018
Sale Sold out
Shipping calculated at checkout.

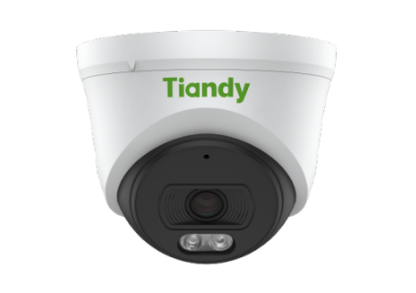

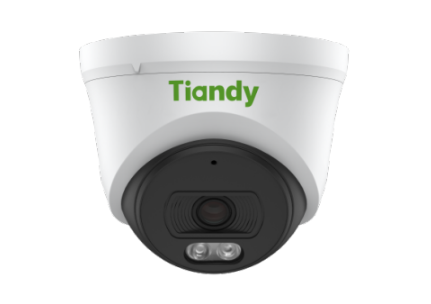

📷 Tiandy TC-C34XN – 4MP Fixed Turret Camera


Model: TC-C34XN Spec: I3/E/Y/2.8mm/N/V5.0
Series: Spark Series


Description:
The Tiandy TC-C34XN is a 4MP fixed turret network camera designed for reliable surveillance in varied environments. With a metal and plastic housing, it offers IP-rated protection and operates in extreme temperatures ranging from -30°C to 60°C. Equipped with Smart IR (up to 30 meters), built-in microphone, and wide dynamic range, it ensures clear footage even in low-light conditions. The camera supports advanced video compression (S+265/H.265/H.264), has a PoE interface, and can be easily managed via Tiandy’s Easy7 and EasyLive Plus platforms.


Tiandy TC-C34XN ek 4MP fixed turret network camera hai jo mukhtalif environments mein bharpoor surveillance provide karta hai. Iska metal aur plastic housing ise durable banata hai, jabkay IP-rated protection aur -30°C se 60°C tak ke extreme temperature mein kaam karne ki salahiyat isay har mausam ke liye ideal banati hai.

Camera Smart IR ke sath aata hai jo 30 meter tak ki range mein low-light mein bhi clear video deta hai. Ismein built-in microphone bhi hai taake audio monitoring bhi ki ja sake. Wide Dynamic Range (WDR) feature roshni ke mukhtalif halat mein behtar image quality faraham karta hai.

Advanced video compression formats jaise S+265, H.265, aur H.264 ka support available hai jo bandwidth aur storage bachata hai. Ye camera Power over Ethernet (PoE) interface ke zariye asani se install kiya ja sakta hai aur Tiandy ke Easy7 aur EasyLive Plus platforms se manage kiya ja sakta hai.

Yeh camera ghar, daftar, ya commercial jagahon ke liye ek reliable aur modern surveillance solution hai.


📋 Specifications Table

Category Specification
Model TC-C34XN Spec: I3/E/Y/2.8mm/N/V5.0
Series Spark Series
Housing Metal + Plastic
Image Sensor 1/3" CMOS
Signal System PAL / NTSC
Min. Illumination Color: 0.02Lux @ F1.6 (AGC ON), B/W: 0Lux with IR
Shutter Time 1s ~ 1/100,000s
Day & Night Dual IR Cut Filter with Auto Switch
WDR Digital WDR
Lens Type Fixed
Focal Length 2.8mm
Lens Mount M12
Aperture F1.6 (Fixed)
Field of View H: 92.8°, V: 52.8°, D: 104.8°
IR LEDs 2
IR Distance Up to 30m
IR Wavelength 850nm
White LEDs Not Available
Max. Resolution 2560 × 1440 (4MP)
Main Stream PAL/NTSC: 20fps @ 2560×1440, 2304×1296, 1920×1080, 1280×720
Sub Stream PAL: 704×576, 704×288, 352×288, 640×360
NTSC: 704×480, 704×240, 352×240, 640×360
Third Stream Not Available
Video Compression S+265 / H.265 / H.264B / H.264M / H.264H
Video Bit Rate 32Kbps ~ 6Mbps
Audio Compression G.711A / G.711U
Audio Sampling Rate 8kHz
Image Adjustments Saturation, Brightness, Contrast, Sharpness (via client or browser)
Image Enhancements BLC, 3D DNR, HLC, Smart Defog
Privacy Mask 4 Regions
OSD 1 Region, 16×16 to 64×64 (Date, Time, Week info)
Picture Overlay / ROI Not Available
Alarm Triggers Motion Detection, IP Address Conflict
Video Analytics Not Supported
ANR Not Supported
Network Protocols HTTP, TCP/IP, UDP, ICMP, DHCP, DNS, NTP, IPv4, Telnet, RTSP, CGI
Remote Connections Up to 2
Client Software Easy7, EasyLive Plus
Web Browser Support IE, Firefox, Edge, Safari, Chrome
Audio I/O Built-in Mic
Alarm I/O Not Available
Reset Button Not Available
Built-in Speaker Not Available
Storage Not Available (no SD card support listed)
Power Supply PoE (IEEE 802.3af)
Power Consumption ≤ 5W
Operating Temp. -30°C to 60°C (-22°F to 140°F)
Operating Humidity 0 ~ 95% RH (non-condensing)
Protection Not specified (likely IP-rated)
Heater Not Available
Languages English, Arabic, Spanish, Korean, Japanese, Portuguese, French, Traditional Chinese

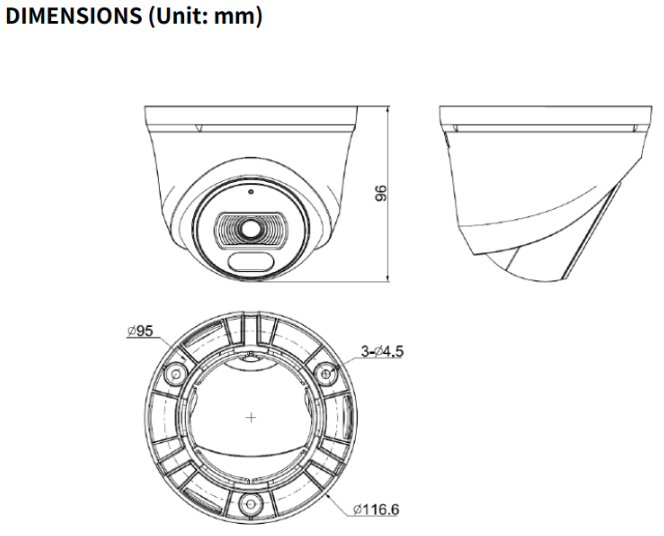

Camera Dimensions Ø117mm × 96mm (H)
Package Dimensions 138mm × 138mm × 110mm
Net Weight 0.24kg
Gross Weight 0.34kg
