TC-C34XP Spec:W/E/Y/2.8mm/V4.0 Tiandy Lite Turret 4MP Fixed 2.8mm
TC-C34XP Spec:W/E/Y/2.8mm/V4.0 Tiandy Lite Turret 4MP Fixed 2.8mm
Sold by: MA Tech

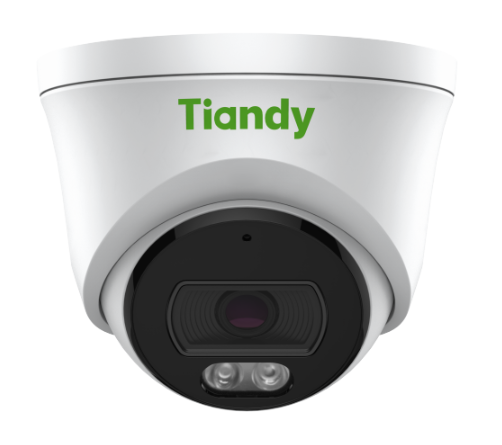

🎯 TC-C34XP 4MP Fixed Turret Camera – Lite Series
📘 Product Description
The TC-C34XP is a Lite Series 4MP turret camera with a 2.8mm fixed focal lens, delivering crystal-clear images even in near-total darkness, thanks to its 0.0004Lux ultra-low-light capability and two built-in white LEDs with 15m illumination. Its rugged metal+plastic IP66-rated housing ensures durability in harsh outdoor environments, while smart surveillance features like tripwire and perimeter intrusion detection enhance perimeter security.
Supporting S+265 video compression, up to 512GB local storage, and multi-protocol compatibility (ONVIF, P2P, Milestone), this camera is ideal for efficient and intelligent 24/7 monitoring. It performs reliably in extreme temperatures from -40°C to +65°C, making it a versatile solution for both commercial and industrial security systems.
TC-C34XP aik Lite Series 4MP turret camera hai jo 2.8mm fixed lens ke sath aata hai, aur bohot hi clear aur sharp images provide karta hai—even bilkul andheray mein bhi. Iski 0.0004Lux ultra-low-light capability aur built-in 2 white LEDs (15 meter tak ki roshni) isey low-light conditions mein bhi full-color video recording mein kamyab banati hain.
Yeh camera metal + plastic IP66 rated housing mein encased hai, jo ise dustproof aur waterproof banata hai, is liye yeh harsh outdoor environments mein bhi achi tarah perform karta hai. Isme smart features jaise tripwire aur perimeter intrusion detection shamil hain jo perimeter security ko aur bhi behtar banate hain.
Camera mein S+265 video compression, 512GB tak microSD storage, aur multi-protocol support (ONVIF, P2P, Milestone, waghera) mojood hai, jo isey modern surveillance systems ke sath asaani se integrate karne ke qabil banata hai. Yeh -40°C se +65°C tak ke temperature range mein reliable performance deta hai, jo ise commercial aur industrial security ke liye perfect 24/7 solution banata hai.
📋 Technical Specification Table
Category | Specification |
Model | TC-C34XP Spec: W/E/Y/2.8mm/V4.0 |
Series | Lite Series |
Housing | Metal + Plastic |
Image Sensor | 1/2.8" CMOS |
Min. Illumination | Color: 0.0004Lux@(F1.0, AGC ON); B/W: 0Lux with IR |
Shutter Time | 1s ~ 1/100000s |
WDR (Wide Dynamic Range) | 120dB |
S/N Ratio | >42dB |
Angle Adjustment | Pan: 0°–340°, Tilt: 0°–75°, Rotate: 0°–360° |
Lens Type | Fixed focal lens |
Focal Length | 2.8mm |
Lens Mount | M12 |
Aperture | F1.0 (Fixed) |
Field of View | H: 100.1°, V: 57.8°, D: 115.6° |
DORI Distance | Detect: 56.0m, Observe: 22.2m, Recognize: 11.2m, Identify: 5.6m |
Illumination | 2 White LEDs |
White Light Range | 15 meters |
Max Resolution | Up to 2592×1520@25fps |
Main Stream (PAL) | 25fps: 2592×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720 |
Main Stream (NTSC) | 24fps: 2592×1520, 2560×1440; 30fps: 2304×1296, 1920×1080, 1280×720 |
Sub Stream (PAL) | 25fps: 704×576, 704×288, 640×360, 352×288 |
Sub Stream (NTSC) | 30fps: 704×480, 704×240, 640×360, 352×240 |
Video Compression | S+265, H.265, H.264B, H.264M, H.264H |
Video Bitrate | 32kbps ~ 6Mbps |
Audio Compression | G.711A, G.711U, ADPCM_D |
Audio Sampling Rate | 8kHz / 32kHz / 48kHz |
Built-in Mic | Yes |
BLC / HLC / AGC | Yes |
3D DNR / Defog | Yes |
White Balance Modes | Auto, Semi-Auto, Manual, Sunshine, Nature Light, Warmlight Lamp, etc. |
ROI | 8 static rectangular areas |
OSD Overlay | 1 region, 1 line, up to 48 characters or 16 Chinese characters |
Privacy Mask | 4 black static areas |
Alarm Triggers | Motion Detection, Mask Alarm, Disk Full, Disk R/W Error, IP Conflict |
Alarm Linkage | Trigger recording, Capture, Notify Surveillance Center |
Video Analytics | Tripwire, Perimeter |
Rules of Behavior | 1 per scene |
Scene Modes | 2 |
ANR Support | Yes |
Network Protocols | HTTP, HTTPS, TCP/IP, UDP, UPnP, FTP, NTP, DHCP, DNS, DDNS, IPv4, SSH, RTSP, etc. |
System Compatibility | ONVIF (Profile S/T/G), P2P (exclusive with Profile G), CGI, Milestone |
Remote Connections | ≤2 |
Client Software | Easy7 Smart Client, EasyLive Plus |
Web Browser Support | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
Communication Interface | 1× RJ-45, 10/100 Mbps Ethernet (self-adaptive) |
Reset Button | Yes (Built-in) |
Onboard Storage | microSD/microSDHC/microSDXC, up to 512GB |
RTC (Real-Time Clock) | Yes |
Language Support | 19 Languages (English, Chinese, Spanish, Arabic, French, etc.) |
Operating Temperature | -40°C ~ 65°C (No lighting during boot) |
Operating Humidity | ≤95% RH (non-condensing) |
Storage Temperature | -40°C ~ 65°C |
Storage Humidity | ≤95% RH (non-condensing) |
Power Supply | DC12V±25%, Max 6W; PoE IEEE 802.3af, Max 7W |
Protection | IP66, Surge: 4000V, ESD: 6000V |

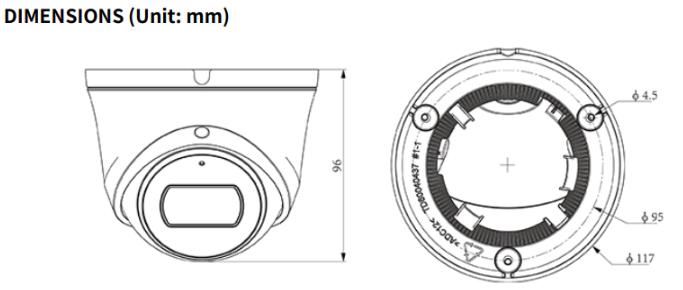

Device Dimensions (L×W×H) | 117 × 117 × 96 mm |
Package Dimensions | 140 × 140 × 120 mm |
Gross Weight | 0.53 kg |
Release Date | 3/25/2024 |
