TC-C34XS Spec:I3W/E/Y/2.8mm/V4.2 Tiandy Lite Color Maker Tri-Light Turret 4MP Fixed 2.8mm IP67 POE
TC-C34XS Spec:I3W/E/Y/2.8mm/V4.2 Tiandy Lite Color Maker Tri-Light Turret 4MP Fixed 2.8mm IP67 POE
Sold by: MA Tech

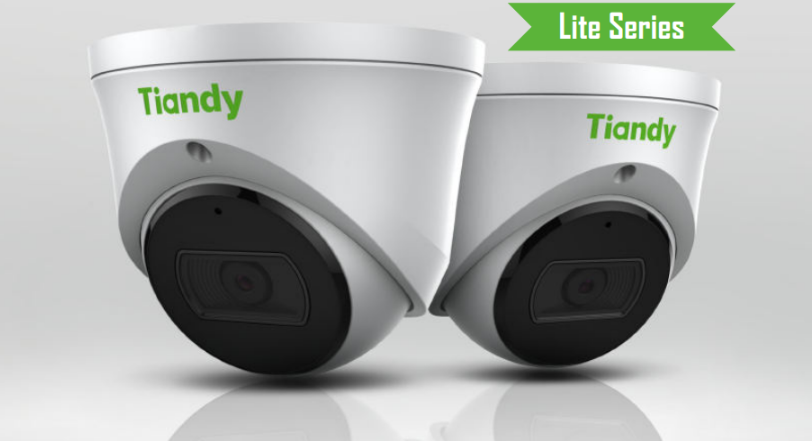

TC-C34XS – 4MP Fixed Starlight IR Turret Camera
Lite Series | Model Spec: I3/E/Y/(M)/2.8mm/V4.0
📘 Product Description
The TC-C34XS from Tiandy's Lite Series is a high-performance 4MP turret camera equipped with Starlight technology, Smart IR (30m range), and advanced perimeter surveillance features. With options for metal+plastic or full-metal housing, this IP67-rated camera is built for harsh environments, delivering superior image quality even in extremely low light (0.002Lux @ F1.6). Integrated audio, local storage support (up to 512GB), and video analytics make it ideal for commercial and perimeter protection applications.
Tiandy TC-C34XS Tiandy ki Lite Series ka ek high-performance 4MP turret camera hai jo Starlight technology aur Smart IR ke sath aata hai (IR range 30 meter tak). Isme advanced perimeter surveillance features bhi mojood hain jo ise commercial aur security applications ke liye ideal banate hain.
Camera mein metal + plastic housing ya full-metal housing ka option milta hai, aur iska IP67 rating ise harsh weather conditions mein bhi reliable banata hai. Iska low-light performance bohot acha hai — sirf 0.002Lux @ F1.6 tak bhi clear image de sakta hai.
Isme built-in microphone ke zariye audio recording, local storage support (up to 512GB), aur smart video analytics jaise features shamil hain. Yeh camera un jagahon ke liye behtareen hai jahan perimeter security aur round-the-clock monitoring zaroori ho — jaise ke factories, warehouses, commercial buildings, ya sensitive outdoor areas.
📋 Technical Specifications Table
Category | Specification |
Model | TC-C34XS Spec: I3/E/Y/(M)/2.8mm/V4.0 |
Series | Lite Series |
Camera Type | Fixed Lens Turret Camera |
Housing Material | Default: Metal+Plastic; Optional: Full Metal (M version) |
Image Sensor | 1/2.8" CMOS |
Signal System | PAL / NTSC |
Min. Illumination | Color: 0.002Lux @ F1.6 (AGC ON); B/W: 0Lux with IR |
Shutter Speed | 1s ~ 1/100,000s |
Day & Night | Dual IR Cut Filter with Auto Switch |
WDR (Wide Dynamic Range) | 120dB |
Angle Adjustment | Pan: 0°–340°, Tilt: 0°–75°, Rotate: 0°–360° |
Lens Type | Fixed |
Focal Length | 2.8mm |
Lens Mount | M12 |
Aperture | F1.6 (Fixed) |
Horizontal FOV | 92.1° |
IR LEDs | 2 |
IR Range | Up to 30m |
IR Wavelength | 850nm |
White LEDs / Warm Light | Not Available |
Max. Resolution | 2560 × 1440 (4MP) |
Main Stream | PAL: 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720) |
NTSC: 25fps (2560×1440), 30fps (2304×1296, 1920×1080, 1280×720) | |
Sub Stream | PAL: 704×576, 704×288, 640×360, 352×288 @25fps |
NTSC: 704×480, 704×240, 640×360, 352×240 @30fps | |
Third Stream | Not Available |
Video Compression | S+265 / H.265 / H.264 |
Video Bitrate | 32 Kbps ~ 6 Mbps |
Audio Compression | G.711 / G.711U / ADPCM |
Audio Bitrate | 8 Kbps ~ 48 Kbps |
Image Settings | Saturation, Brightness, Contrast, Sharpness (adjustable via client/web) |
Image Enhancements | BLC, 3D DNR, HLC |
ROI | Not Available |
OSD Overlay | Up to 3 Regions; Supports Date, Time, Week; Sizes: 16×16 ~ 64×64 |
Picture Overlay | Not Available |
Privacy Masking | Yes, 4 Regions |
Smart Defog | Yes |
Alarm Triggers | Motion Detection, Mask Alarm, IP Address Conflict |
Video Analytics | Tripwire, Perimeter |
Early Warning (EW) | Not Available |
ANR (Automatic Recovery) | Not Supported |
Network Protocols | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, Multicast, IPv4, NTP, UDP, Telnet, ICMP, RTP, RTSP, UPnP |
System Compatibility | ONVIF (Profiles S/T/G), SDK, CGI (IE), P2P (exclusive with Profile G) |
Remote Connection | Max 7 Clients |
Client Software | Easy7, EasyLive |
Web Interface | Web5 (IE Browser Required) |
Communication Interface | 1 × RJ45 (10/100 Mbps, Self-Adaptive Ethernet Port) |
Audio I/O | Built-in Mic In |
Alarm I/O | Not Available |
Reset Button | Yes |
Onboard Storage | MicroSD/SDHC/SDXC up to 512GB |
Languages Supported | 15 Languages including English, Russian, Chinese, Arabic, Korean, etc. |
Operating Temperature | -40°C to +60°C |
Operating Humidity | 0% ~ 95% RH (non-condensing) |
Power Supply | DC 12V ±25%, PoE (802.3af) |
Power Consumption | Max 6W (DC); Max 7W (PoE) |
Protection Rating | IP67, Lightning/Surge/Transient Protection (EN 55035:2017) |
Heater | Not Available |

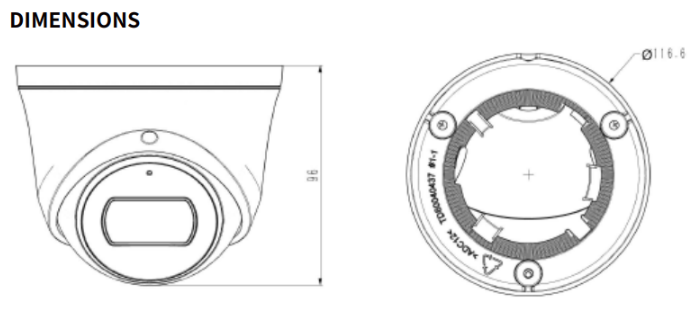

Dimensions | Ø116.6 × 83.7 mm (4.59" × 3.30") |
Weight | Metal+Plastic: 0.34kg (0.75lb); Metal: 0.47kg (1.04lb) |

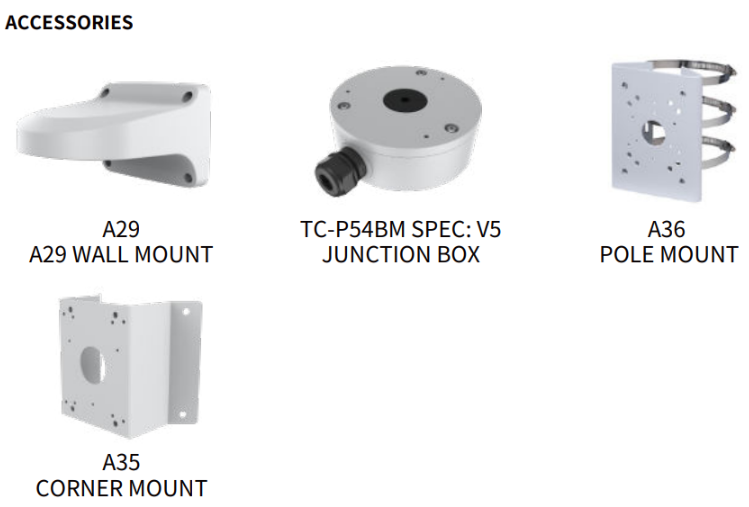

Accessories | A29 Wall Mount, A35 Corner Mount, A36 Pole Mount, TC-P54BM Junction Box |
