TC-C35MS I3/A/E/Y/M/C/H/2.7-13.5mm/V4.0 Tiandy Lite Lite Star-Full Dome 5MP Motorized 2.7-13.5mm IP66 Tiandy Lite Lite Star-Full Dome 5MP
TC-C35MS I3/A/E/Y/M/C/H/2.7-13.5mm/V4.0 Tiandy Lite Lite Star-Full Dome 5MP Motorized 2.7-13.5mm IP66 Tiandy Lite Lite Star-Full Dome 5MP
Sold by: MA Tech

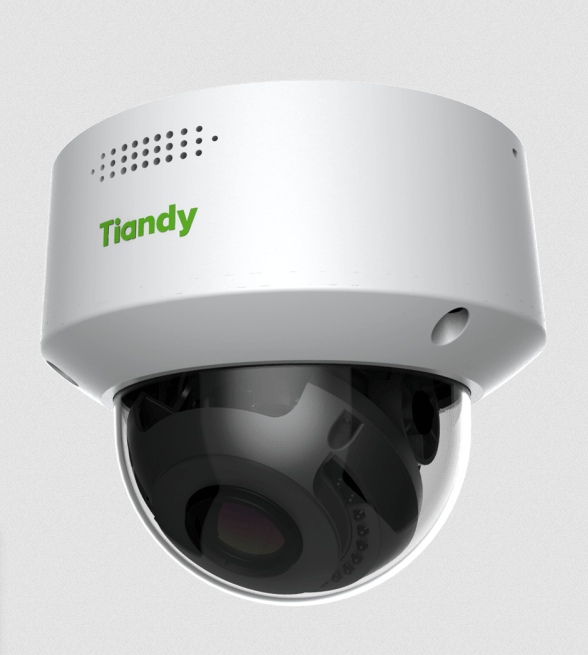

Tiandy TC-C35MS – 5MP Motorized Starlight IR Dome Camera
Model: I3/A/E/Y/M/2.8-12mm/V4.0 | Lite Series
The Tiandy TC-C35MS is a versatile, full-metal 5MP starlight dome camera engineered for demanding security applications. It features a motorized 2.8–12mm lens, offering a variable field of view (96.8° to 32.7°), making it suitable for a wide range of indoor and outdoor scenarios. With a maximum resolution of 2592×1944 at 20fps and support for S+265/H.265/H.264 compression standards, it ensures high-quality video with efficient bandwidth usage.
Equipped with 18 IR LEDs, this dome camera provides clear vision up to 30 meters in total darkness, while its 0.002Lux low-light sensitivity and 120dB wide dynamic range (WDR) guarantee exceptional image quality in both bright and low-light conditions. Integrated smart analytics, such as tripwire and perimeter detection, enhance proactive surveillance capabilities.
Additional features include a built-in microphone, SD card slot (supports up to 512GB) for local storage, and reset button for convenience. The camera is IP67 and IK10 rated, ensuring resistance to harsh weather and vandalism, and operates reliably in extreme temperatures from -40°C to 60°C. Compatible with ONVIF and third-party platforms, and accessible via Easy7 and EasyLive clients, the TC-C35MS offers reliable performance and smart features in a compact, rugged form.
Tiandy TC-C35MS aik versatile, full-metal 5MP starlight dome camera hai jo demanding security applications ke liye specially design ki gayi hai. Is mein motorized 2.8–12mm lens laga hua hai jo 96.8° se le kar 32.7° tak variable field of view offer karta hai — is wajah se yeh camera indoor aur outdoor dono scenarios ke liye perfect hai.
Is camera ki maximum resolution 2592×1944@20fps hai, aur yeh S+265, H.265, aur H.264 compression formats ko support karta hai, jo high-quality video ke sath efficient bandwidth usage bhi ensure karta hai.
Camera mein 18 IR LEDs lage hue hain jo 30 meter tak andheray mein bhi clear vision dete hain. Iski 0.002Lux low-light sensitivity aur 120dB WDR (Wide Dynamic Range) feature bright aur low-light dono conditions mein behtareen image quality provide karta hai.
Advanced surveillance ke liye is camera mein smart analytics jaise tripwire aur perimeter detection bhi shaamil hain, jo proactive monitoring ko asaan banate hain.
Additional features mein built-in microphone, SD card slot (jo 512GB tak support karta hai), aur ek reset button bhi shamil hai. Yeh camera IP67 aur IK10 rated hai — iska matlab hai ke yeh harsh weather aur vandalism se bachao ke liye design kiya gaya hai. Operating temperature range -40°C se le kar 60°C tak hai, jo ise tough environments mein bhi reliable banata hai.
Yeh camera ONVIF aur third-party platforms ke sath fully compatible hai, aur Easy7 aur EasyLive apps ke zariye remotely access bhi kiya ja sakta hai. TC-C35MS aik smart, reliable aur rugged surveillance solution hai jo modern security requirements ko pura karta hai.
📋 Specification Table
Category | Specification |
Model | TC-C35MS Spec: I3/A/E/Y/M/2.8-12mm/V4.0 |
Series | Lite Series |
Housing | Full Metal |
Form Factor | Dome Camera |
Max. Resolution | 2592×1944 (5MP) |
Image Sensor | 1/2.8" CMOS |
Signal System | PAL/NTSC |
Lens Type | Motorized |
Focal Length | 2.8–12mm (Varifocal) |
Aperture | F1.6 ~ F3.3 |
Lens Mount | M14 |
FOV (Horizontal) | 96.8° ~ 32.7° |
IR LEDs | 18 |
IR Range | Up to 30 meters |
Wavelength | 850nm |
Min. Illumination | Color: 0.002Lux@F1.6 (AGC ON); B/W: 0Lux with IR |
WDR | 120dB |
Shutter Time | 1s ~ 1/100,000s |
Day/Night | Dual IR Cut Filter with Auto Switch |
Angle Adjustment | Pan: 0–330°, Tilt: 0–75°, Rotate: 0–350° |
Video Compression | S+265 / H.265 / H.264 |
Video Bitrate | 32Kbps–6Mbps |
Audio Compression | G.711 / G.711U / ADPCM |
Audio Bitrate | 8Kbps–48Kbps |
Main Stream | PAL: 20fps (2592×1944, 2592×1520), 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720) |
NTSC: 20fps (2592×1944, 2592×1520), 25fps (2560×1440), 30fps (2304×1296, 1920×1080, 1280×720) | |
Sub Stream | PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
NTSC: 30fps (704×480, 704×240, 640×360, 352×240) | |
Third Stream | Not Supported |
Image Enhancements | BLC / 3D DNR / HLC |
Image Settings | Saturation, Brightness, Contrast, Sharpness (via client or browser) |
OSD | 3 regions, customizable text (16×16 – 64×64) |
Privacy Mask | Yes, 4 regions |
Smart Defog | Yes |
Picture Overlay | Not Supported |
Smart Features | Tripwire, Perimeter Detection |
Alarm Triggers | Motion Detection, Mask Alarm, IP Address Conflict |
Early Warning (EW) | Not Supported |
ANR (Auto Network Recovery) | Not Supported |
Storage | MicroSD Card Slot, Up to 512GB |
Protocols Supported | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, IPv4, NTP, UDP, Telnet, ICMP, RTP, RTSP, UPnP |
System Compatibility | ONVIF (Profile S/T/G), SDK, CGI (IE), P2P |
Web Interface | Web5 |
Remote Connections | Up to 7 |
Client Software | Easy7 (PC), EasyLive (Mobile) |
Audio I/O | Mic In |
Alarm I/O | Not Supported |
Communication Interface | 1× RJ45 (10M/100M adaptive Ethernet port) |
Reset Button | Yes |
Power Supply | DC 12V ±25% or PoE (802.3af) |
Power Consumption | Max 7.5W (DC); Max 9W (PoE) |
Operating Temperature | -40°C ~ +60°C |
Humidity | 0–95% RH |
Protection Rating | IP67 (Weatherproof), IK10 (Vandal-resistant) |
Surge Protection | Meets EN 55035:2017 |
Heater | Not Supported |

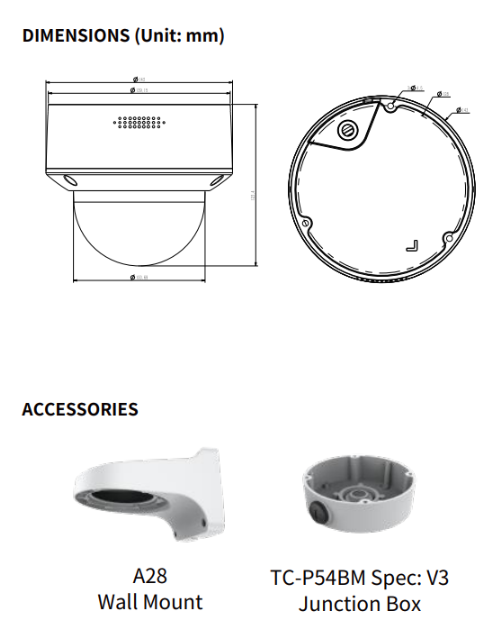

Dimensions | Ø143×124mm (5.63×4.88 inches) |
Weight | 0.86kg (1.90 lbs) |
Supported Languages | 15 (including English, Spanish, Chinese, French, Russian, Arabic, etc.) |
