TC-C35PS Spec:I3/E/Y/M/H/2.8mm/V4.2 Tiandy Pro SMD Turret 5MP Fixed 2.8mm IP67 Support Tripwire,perimeter+Human Vehicle Classification, Full Metal
TC-C35PS Spec:I3/E/Y/M/H/2.8mm/V4.2 Tiandy Pro SMD Turret 5MP Fixed 2.8mm IP67 Support Tripwire,perimeter+Human Vehicle Classification, Full Metal
Sold by: MA Tech

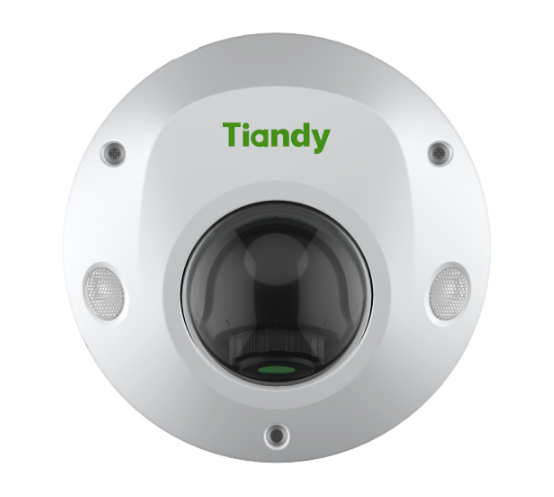

Tiandy TC-C35PS – 5MP Fixed IR Dome Camera
Model: I3/E/Y/M/H/2.8mm/V4.2 | Pro Series
The Tiandy TC-C35PS is a robust and intelligent 5MP fixed dome IP camera from the Pro Series, built to deliver exceptional image quality and advanced AI-powered features. Designed with a compact yet rugged metal housing, this camera is suited for both indoor and outdoor installations thanks to its IP66 weatherproof and IK08 vandal-resistant ratings.
Equipped with a 1/2.7” CMOS sensor, the TC-C35PS captures crisp video up to 2880×1620 resolution at 30fps, and its excellent low-light performance allows for clear color imaging down to 0.002Lux. The Smart IR functionality, with a range of up to 30 meters, ensures effective night surveillance without overexposure.
Its 2.8mm fixed wide-angle lens provides a 125.4° diagonal field of view, suitable for monitoring wide areas such as entrances, lobbies, and corridors. The camera supports face capture, human and vehicle classification, and multiple video analytics, making it ideal for intelligent security monitoring. Integrated audio features include a built-in microphone, 2-way audio, and a comprehensive set of alarm inputs/outputs.
The camera also supports microSD storage (up to 512GB), PoE, S+265/H.265 compression, and seamless integration with VMS platforms and ONVIF (Profiles S/T/G/M). This makes the TC-C35PS a feature-rich and reliable option for smart surveillance systems.
Tiandy TC-C35PS aik Pro Series ka robust aur smart 5MP fixed dome IP camera hai, jo zabardast image quality aur advanced AI-based features ke sath aata hai. Iska compact lekin strong metal housing use indoor aur outdoor dono installations ke liye ideal banata hai, aur yeh IP66 weatherproof aur IK08 vandal-resistant ratings ke sath protected hai.
Is camera mein 1/2.7” CMOS sensor laga hai jo 2880×1620 resolution tak ki crisp video 30fps par capture karta hai. Iska low-light performance itna achha hai ke 0.002Lux tak ki roshni mein bhi color image clear rehti hai. Smart IR functionality 30 meter tak ki night vision provide karti hai — bina glare ya overexposure ke.
2.8mm ka wide-angle fixed lens 125.4° ka diagonal field of view deta hai, jo ke entrance, lobbies, aur corridors jaise wide areas ki monitoring ke liye perfect hai. Ismein face capture, human aur vehicle classification, aur mukhtalif video analytics shamil hain jo ise ek intelligent security solution banate hain.
Audio ke liye built-in microphone aur 2-way audio ka support bhi diya gaya hai. Iske alawa, alarm I/O options bhi available hain. Camera microSD card (512GB tak) support karta hai, PoE ke through power leta hai, aur efficient streaming ke liye S+265/H.265 compression use karta hai.
Yeh camera ONVIF (Profiles S/T/G/M) aur mukhtalif VMS platforms ke sath seamlessly integrate hota hai, jo ise ek feature-rich aur reliable smart surveillance solution banata hai — chaahe commercial ho ya residential setup.
📋 Specification Table
| Category | Specification |
| Model | TC-C35PS Spec: I3/E/Y/M/H/2.8mm/V4.2 |
| Series | Pro Series |
| Camera Type | Fixed IR Dome |
| Housing Material | Metal |
| Image Sensor | 1/2.7" CMOS |
| Min. Illumination | Color: 0.002Lux @ F1.6 (AGC ON), B/W: 0Lux with IR |
| Shutter Time | 1s to 1/100,000s |
| Day/Night | IR-cut filter with auto switch (ICR) |
| WDR | 120dB |
| S/N Ratio | >39dB |
| Smart IR | Yes |
| IR LEDs | 2 |
| IR Distance | Up to 30m |
| IR Wavelength | 850nm |
| Lens Type | Fixed focal lens |
| Focal Length | 2.8mm |
| Aperture | F1.6 (Fixed) |
| Lens Mount | M12 |
| Field of View | H: 109°, V: 59°, D: 125.4° |
| DORI Distance | Detect: 56m, Observe: 22m, Recognize: 11m, Identify: 5.6m |
| Video Compression | S+265, H.265, H.264B/M/H, Motion JPEG |
| Audio Compression | G.711A/U, ADPCM_D, AAC_LC |
| Audio Sampling Rates | 8kHz / 32kHz / 48kHz |
| Max Resolution | 5MP (2880×1620) @30fps |
| Main Stream (PAL) | 25fps @ 2880×1620 to 2304×1296; 50fps @ 1920×1080, 1280×720 |
| Main Stream (NTSC) | 30fps @ 2880×1620 to 2304×1296; 60fps @ 1920×1080, 1280×720 |
| Sub Stream (PAL) | 25fps @ 704×576 to 352×288 |
| Sub Stream (NTSC) | 30fps @ 704×480 to 352×240 |
| Third Stream (PAL) | 25fps @ 1280×720 to 352×288 |
| Third Stream (NTSC) | 30fps @ 1280×720 to 352×240 |
| Image Enhancements | BLC, HLC, AGC, 3D DNR, Defog |
| White Balance | Auto, Semi-Auto, Manual, multiple preset modes |
| ROI (Regions of Interest) | 8 static rectangular areas |
| Corridor Mode | Yes |
| OSD | 5 regions, 2 lines each, max 127 characters or 42 Chinese characters |
| Picture Overlay | 1 BMP (200x200px, 24-bit color) |
| Privacy Mask | 4 regions |
| Face Mode | Face Capture |
| Face Detection | Detect up to 8 faces, capture up to 4 in the same scene |
| Video Analytics | Human/Vehicle Classification, Tripwire, Perimeter, Video/Audio Abnormalities |
| Scene Behavior Rules | 8 |
| General Alarms | Motion, Mask Alarm, Alarm Input |
| Exception Alarms | Voltage, Disk Full/Error, IP/MAC Conflict, FTP Exception |
| Alarm Linkage | Email, Sound, Recording, Snapshot, Notify CMS, Alarm Output |
| Audio I/O | 1 input / 1 output |
| Reset Button | Yes (Built-in) |
| Built-in Mic | Yes |
| Storage Support | microSD/microSDHC/microSDXC (up to 512GB) |
| RTC (Real-Time Clock) | Yes |
| ANR Support | Yes |
| Network Protocols | HTTP, HTTPS, TCP/IP, UDP, FTP/SFTP, SNMP, ICMP, IGMP, NTP, RTSP, RTMP, SRTP, etc. |
| System Compatibility | ONVIF (Profile S/T/G/M), SDK, CGI, Milestone |
| Remote Access | Max 7 connections |
| VMS Client | Easy7 |
| Mobile App | EasyLive Plus |
| Web Browser Support | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
| Operating Temp | -40°C to +65°C (-40°F to +149°F) |
| Operating Humidity | ≤95% RH |
| Storage Temp | -40°C to +65°C |
| Storage Humidity | 10%–95% RH (non-condensing) |
| Power Supply | DC12V ±25%, Max 6.5W; PoE (802.3af), Max 8W |
| Protection Rating | IP66, IK08, Surge: 4000V, ESD: 6000V |

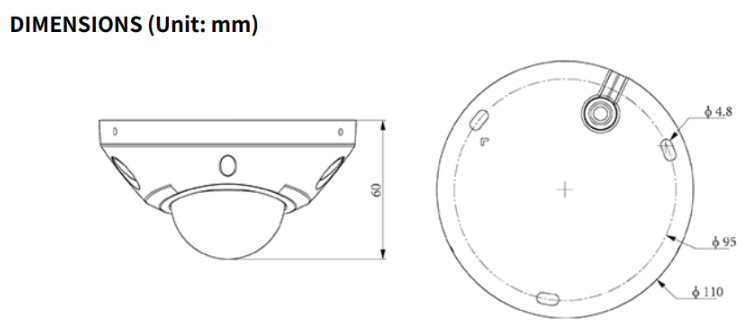

| Camera Dimensions | 110 × 110 × 60 mm |
| Package Dimensions | 140 × 140 × 120 mm |
| Weight | 0.5kg |
| Languages Supported | 19 (English, Chinese, Spanish, Russian, Arabic, Vietnamese, etc.) |
