TC-C35US I8/A/E/Y/M/C/H/2.7-13.5mm/V4. 0 Tiandy Lite Lite Star-Full Bullet 5MP Motorized 2. 7-13.5mm IP67 Support Tripwire,perimeter+Human/Vehicle Classification
TC-C35US I8/A/E/Y/M/C/H/2.7-13.5mm/V4. 0 Tiandy Lite Lite Star-Full Bullet 5MP Motorized 2. 7-13.5mm IP67 Support Tripwire,perimeter+Human/Vehicle Classification
Sold by: MA Tech

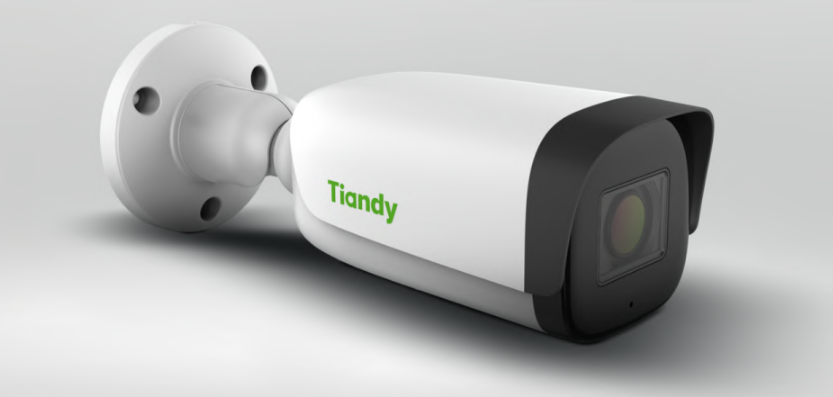

Tiandy TC-C35US – 5MP Motorized Starlight IR Bullet Camera
Model: I8/A/E/Y/M/2.8-12mm | Lite Series
The Tiandy TC-C35US is a rugged, full-metal 5MP starlight bullet camera built for demanding outdoor surveillance environments. Designed for long-range visibility and adaptable field of view, this camera features a motorized 2.8–12mm varifocal lens, allowing for remote zoom and focus adjustment to suit different monitoring scenarios. With a maximum resolution of 2592×1944 at 20fps, it delivers sharp, detailed imagery powered by advanced S+265/H.265/H.264 compression, optimizing bandwidth without compromising video quality.
This model is equipped with Smart IR illumination, offering up to 80 meters of night vision range. It excels in low-light conditions with a minimum color illumination of 0.002Lux@F1.6, and 0Lux in black and white with IR. The camera supports 120dB true WDR for superior image clarity in high-contrast lighting situations. A built-in microphone, microSD card slot (up to 512GB), and PoE support make this unit ideal for flexible installations.
Onboard intelligent analytics include tripwire and perimeter detection, allowing for proactive security automation. Additionally, the camera provides essential alarm triggers like motion detection, mask alarm, and IP conflict alerts. Built to withstand tough environments, the camera is IP67-rated for weatherproof protection and operates in a temperature range of -35°C to 65°C, making it suitable for diverse climate conditions. Compatible with ONVIF, P2P, and Easy7 VMS, the TC-C35US offers seamless integration into a wide range of surveillance systems.
Tiandy TC-C35US aik rugged, full-metal 5MP starlight bullet camera hai jo mushkil outdoor surveillance environments ke liye design kiya gaya hai. Yeh long-range visibility aur adaptable field of view ke liye motorized 2.8–12mm varifocal lens ke saath aata hai, jis se zoom aur focus remote se adjust kiya ja sakta hai taake mukhtalif monitoring scenarios ke liye behtareen fit ho jaye.
Is camera ki maximum resolution 2592×1944 at 20fps hai, aur yeh advanced S+265/H.265/H.264 compression use karta hai jo bandwidth ko optimize karta hai bina video quality ko compromise kiye. Is mein Smart IR illumination hai jo 80 meter tak ki night vision range provide karta hai.
Yeh low-light conditions mein bhi zabardast performance deta hai jiska minimum color illumination 0.002Lux@F1.6 hai, aur black & white mode mein 0Lux IR ke saath. Camera 120dB true WDR support karta hai jo high-contrast lighting mein bhi clear aur detailed images provide karta hai.
Is mein built-in microphone, microSD card slot (512GB tak support karta hai), aur PoE support bhi mojood hai jo installation ko flexible banata hai. Intelligent analytics features jese tripwire aur perimeter detection security ko proactive banate hain. Saath hi motion detection, mask alarm, aur IP conflict alerts jaise alarm triggers bhi available hain.
Yeh camera tough environments ke liye IP67 weatherproof rating ke saath bana hai, aur operating temperature range -35°C se 65°C tak hai, jo diverse climate conditions ke liye perfect hai. ONVIF, P2P, aur Easy7 VMS ke saath compatible hone ki wajah se yeh surveillance systems mein asaani se integrate ho jata hai.
📋 Specification Table
| Category | Specification |
| Model | TC-C35US Spec: I8/A/E/Y/M/2.8-12mm |
| Series | Lite Series |
| Housing | Full Metal |
| Max. Resolution | 2592×1944 (5MP) |
| Image Sensor | 1/2.8" CMOS |
| Lens Type | Motorized |
| Focal Length | 2.8–12mm (Varifocal) |
| Aperture Range | F1.6 ~ F3.3 |
| Lens Mount | 14 |
| Field of View (FOV) | 100.4° ~ 26.8° (Horizontal) |
| IR LEDs | 4 |
| IR Range | Up to 80 meters |
| Wavelength | 850nm |
| Min. Illumination | Color: 0.002Lux@F1.6 (AGC ON); B/W: 0Lux with IR |
| WDR | 120dB |
| Shutter Time | 1s ~ 1/100,000s |
| Day/Night | Dual IR Cut Filter with Auto Switch (ICR) |
| Angle Adjustment | Pan: 0–360°, Tilt: 0–75°, Rotate: 0–360° |
| Compression (Video) | S+265 / H.265 / H.264 |
| Compression (Audio) | G.711A/U, ADPCM |
| Audio Bitrate | 8K–48Kbps |
| Video Bitrate | 32Kbps–6Mbps |
| Audio I/O | Mic In |
| Alarm I/O | Not Supported |
| Built-in Mic | Yes |
| Reset Button | Yes |
| Max FPS (Main Stream) | PAL: 20fps (2592×1944), 25fps (2592×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720) |
| NTSC: 20fps (2592×1944), 25fps (2592×1520, 2560×1440), 30fps (2304×1296, 1920×1080, 1280×720) | |
| Max FPS (Sub Stream) | PAL: 25fps (704×576, 704×288, 640×360, 352×288) |
| NTSC: 30fps (704×480, 704×240, 640×360, 352×240) | |
| Third Stream | Not Supported |
| Image Enhancements | BLC / 3D DNR / HLC |
| Image Settings | Brightness, Saturation, Contrast, Sharpness (Client/Web adjustable) |
| OSD | 3 regions, adjustable size: 16×16 – 64×64 |
| Privacy Mask | Yes, 4 regions |
| Picture Overlay | Not Supported |
| Smart Defog | Yes |
| Smart Features | Tripwire, Perimeter Detection |
| Alarm Triggers | Motion Detection, Mask Alarm, IP Conflict |
| Analytics (EW) | Not Supported |
| ANR Support | Yes (Only with Tiandy ANR NVR) |
| Storage | MicroSD Card Slot, Up to 512GB |
| Protocols Supported | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, Multicast, IPv4, NTP, UDP, Telnet |
| System Compatibility | ONVIF (Profile S/T/G), SDK, CGI, P2P |
| Web Interface | Web5 |
| Remote Connections | Up to 7 |
| Client Software | Easy7 (PC), EasyLive (Mobile) |
| Power Supply | DC 12V ±25% or PoE (802.3af) |
| Power Consumption | Max 9W (DC); Max 10W (PoE) |
| Operating Conditions | -35°C ~ +65°C; 0–95% RH |
| Protection | IP67, Surge & Lightning Protection (EN 55035:2017) |
| Heater | Not Supported |

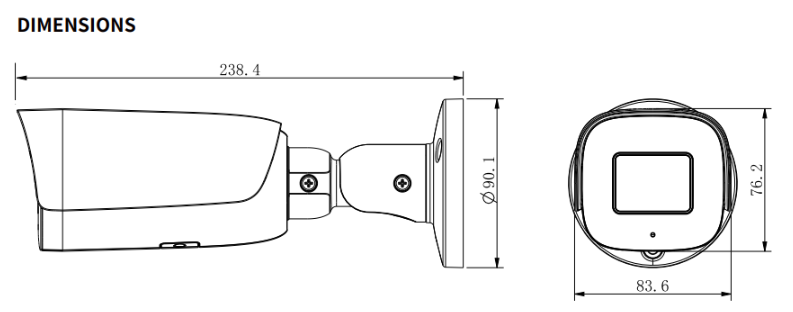

| Dimensions | 239×90×90 mm (9.41×3.54×3.54 inches) |
| Weight | 0.93 kg (2.05 lbs) |
| Languages Supported | 15 Languages including English, Chinese, Spanish, French, Arabic, Korean, etc. |
