TC-C35US Spec: I8/A/E/Y/M/S/H/2.7- 13.5mm/V4.0 Tiandy Pro SMD Bullet 5MP Motorized 2.7-13.5mm
TC-C35US Spec: I8/A/E/Y/M/S/H/2.7- 13.5mm/V4.0 Tiandy Pro SMD Bullet 5MP Motorized 2.7-13.5mm
Sold by: MA Tech

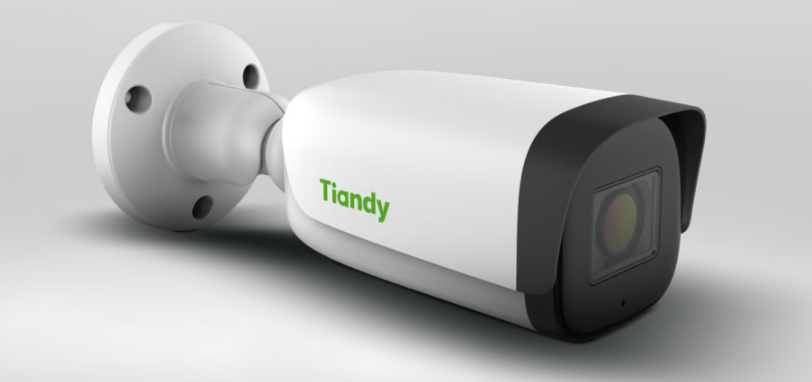

🛡️ Tiandy TC-C35US – 5MP Motorized Starlight IR Bullet Camera
Model: I8/A/E/Y/M/2.8-12mm | Lite Series
The TC-C35US is a high-performance 5MP motorized bullet camera designed for versatile outdoor surveillance. With its durable metal housing, long-range 80m Smart IR, and motorized 2.8–12mm lens, this camera provides precision zoom control and clear imaging in both wide and narrow scenes — ideal for perimeter monitoring, parking lots, industrial areas, and more.
It features Starlight low-light performance (0.002Lux), 120dB WDR, and S+265 video compression, reducing bandwidth and storage usage while preserving image quality. The motorized zoom lens allows for remote focal adjustments without manual intervention.
Equipped with built-in microphone, microSD slot (up to 512GB), and IP67 protection, it supports Tiandy's ANR function for data redundancy and is fully compatible with ONVIF platforms and Tiandy's own Easy7 VMS. This bullet camera is rugged, intelligent, and easy to deploy.
TC-C35US aik high-performance 5MP motorized bullet camera hai jo versatile outdoor surveillance ke liye design kiya gaya hai. Iska full-metal durable housing, 80 meter tak ka Smart IR, aur motorized 2.8–12mm lens isay ideal banate hain un jagahon ke liye jahan precision zoom aur wide-to-narrow monitoring required ho — jaise perimeter security, parking lots, aur industrial areas.
Yeh camera Starlight low-light performance (0.002Lux), 120dB WDR, aur S+265 video compression offer karta hai jo bandwidth aur storage use ko kam karta hai magar image quality ko maintain karta hai. Motorized zoom lens ka matlab hai ke aap remotely focus aur zoom adjust kar sakte hain bina manual interference ke.
Is camera mein built-in microphone, microSD card slot (512GB tak), aur IP67-rated protection bhi hai. Yeh Tiandy ki ANR technology ko support karta hai jo data redundancy ke liye important hai. Saath hi yeh ONVIF protocols aur Tiandy Easy7 VMS ke sath fully compatible hai.
Yeh bullet camera rugged, smart aur asaani se deploy hone wala solution hai jo har tarah ke outdoor surveillance needs ke liye perfect hai.
📋 Technical Specifications Table
Category | Specification |
Model | TC-C35US Spec: I8/A/E/Y/M/2.8-12mm |
Series | Lite Series |
Camera Type | 5MP Motorized Starlight IR Bullet Camera |
Housing | Full Metal |
Image Sensor | 1/2.8" CMOS |
Signal System | PAL/NTSC |
Min. Illumination | Color: 0.002Lux @ F1.6 (AGC ON), B/W: 0Lux with IR |
Shutter Time | 1s to 1/100,000s |
Day/Night Switching | Dual IR Cut Filter with Auto Switch (ICR) |
WDR | 120dB |
Angle Adjustment | Pan: 0360°, Tilt: 075°, Rotate: 0~360° |
Lens Type | Motorized |
Focal Length | 2.8–12mm |
Aperture | F1.6 ~ F3.3 (Fixed) |
Field of View (FOV) | Horizontal: 100.4° ~ 26.8° |
Lens Mount | M14 |
IR LEDs | 4 LEDs |
IR Range | Up to 80m (Smart IR) |
IR Wavelength | 850nm |
Compression | Video: S+265, H.265, H.264 |
Audio: G.711A/U, ADPCM | |
Bit Rates | Video: 32Kbps6Mbps<br>Audio: 8K48Kbps |
Max Resolution | 2592 × 1944 (5MP) |
Frame Rate (Main Stream) | PAL: 20fps @ 2592×1944 |
NTSC: 20fps @ 2592×1944 | |
Other Resolutions | Up to 30fps @ 2304×1296, 1920×1080, 1280×720 |
Sub Stream | PAL: 25fps (704×576 ~ 352×288) |
NTSC: 30fps (704×480 ~ 352×240) | |
Third Stream | Not Supported |
Image Settings | Saturation, brightness, contrast, sharpness (adjustable via client or browser) |
Image Enhancements | BLC, HLC, 3D DNR, Smart Defog |
OSD | Up to 3 regions, with adaptable font size (16x16 to 64x64) |
Privacy Mask | 4 Regions |
ROI | Not Supported |
Audio Input | Built-in Mic |
Audio I/O | 1 Input (Mic) |
Alarm I/O | Not Supported |
Reset Button | Yes |
On-board Storage | Built-in MicroSD slot, up to 512GB |
Video Analytics | Tripwire, Perimeter |
Alarm Triggers | Motion Detection, Mask Alarm, IP Conflict |
ANR (Auto Network Recovery) | Yes (Only with Tiandy ANR-compatible NVRs) |
Protocols | TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, MULTICAST, IPV4, NTP, UDP, Telnet |
System Compatibility | ONVIF (Profile S/T/G), SDK, CGI (IE), P2P |
Remote Access | Up to 7 Connections |
Client Software | Easy7, EasyLive |
Web Interface | Web5 |
Languages Supported | 15 languages (English, Spanish, Russian, Arabic, etc.) |
Operating Temperature | -35°C to +65°C |
Operating Humidity | 0–95% RH |
Power Supply | DC 12V ±25% / PoE (802.3af) |
Power Consumption | Max. 9W (DC), Max. 10W (PoE) |
Protection | IP67, Lightning/Surge/Transient protection (EN 55035:2017) |
Heater | Not Included |

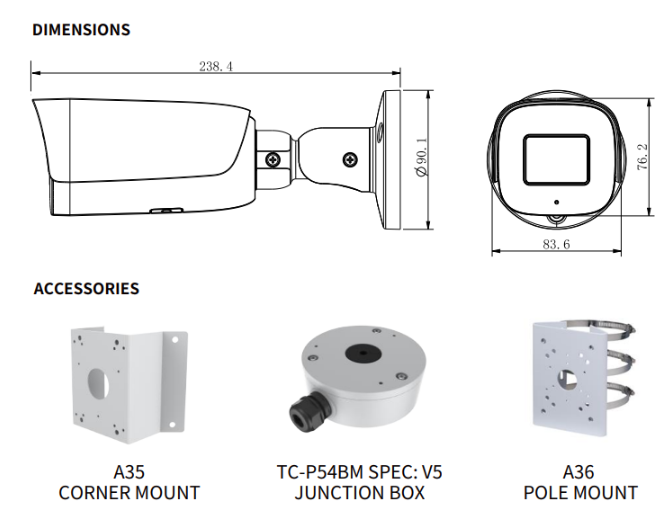

Dimensions | 239 × 90 × 90 mm (9.41 × 3.54 × 3.54 in) |
Weight | 0.93kg (2.05lb) |
Mounting Accessories | A35 Corner Mount, A36 Pole Mount, TC-P54BM Junction Box |
