TC-C35VN Spec:I3/E/Y/1.4mm/V4.2 Tiandy Lite S+265-Full Fish Eye 5MP Fixed 1.4mm Non-waterproof, IONVIF Profile S/T/G?Support Tripwire, Petrimeter, Heatmap

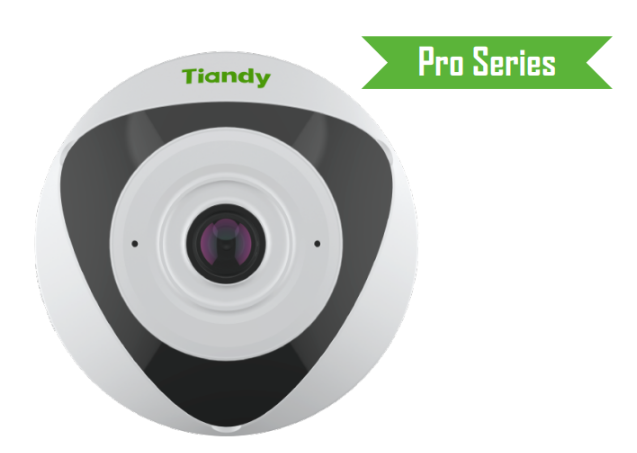

Tiandy TC-C35VN – 5MP Fisheye Camera

Model: I3/E/Y/1.4mm/V4.2 | Pro Series

The Tiandy TC-C35VN is a compact 5MP fisheye IP camera designed to deliver comprehensive panoramic surveillance for indoor environments. Encased in a lightweight plastic housing, the camera provides 180° horizontal, vertical, and diagonal field of view, making it ideal for wide-area coverage without blind spots. It supports a maximum resolution of 2592×1944 at 25fps, powered by S+265, H.265, and H.264 video compression technologies, ensuring efficient bandwidth and storage usage.

This camera features Smart IR technology with an IR range of up to 30 meters, delivering clear images even in total darkness. With a minimum illumination of 0.02Lux (Color) and 0Lux in B/W with IR, it performs well in low-light conditions. A built-in microphone, audio I/O (1/1), alarm I/O (1/1), and a microSD card slot supporting up to 512GB offer versatile integration and standalone recording capabilities. The camera also includes advanced video analytics such as tripwire, perimeter detection, double tripwire, and heatmap, enhancing its ability to detect and analyze human or vehicle activity.

The TC-C35VN supports multiple fisheye dewarping modes, including panorama + PTZ views, allowing users to monitor from various angles on a single screen. With a wide operating temperature range of -10°C to 50°C, and support for PoE or 12V DC power, it provides flexible installation options. The camera complies with major protocols and platforms, including ONVIF, Milestone, RTSP, and RTMP, and supports up to 2 remote connections simultaneously. Despite its compact size and lightweight form factor, this camera delivers professional-grade features suitable for retail, education, and office applications.

Tiandy TC-C35VN aik compact 5MP fisheye IP camera hai jo indoor environments ke liye panoramic surveillance provide karta hai. Yeh halki plastic housing mein bana hai aur 180° horizontal, vertical, aur diagonal field of view deta hai, jiski wajah se yeh wide-area coverage ke liye behtareen hai bina kisi blind spot ke.

Is camera ki maximum resolution 2592×1944 at 25fps hai, aur yeh S+265, H.265, aur H.264 video compression technologies use karta hai jo bandwidth aur storage ki efficiency ko ensure karti hain. Is mein Smart IR technology bhi mojood hai jo 30 meter tak ki IR range provide karti hai, jisse bilkul andhere mein bhi wazeh tasveer milti hai. Minimum illumination 0.02Lux (color) aur 0Lux (B/W with IR) hai, jo low-light conditions mein behtareen performance deta hai.

Is camera mein built-in microphone, audio I/O (1/1), alarm I/O (1/1), aur microSD card slot hai jo 512GB tak support karta hai, jisse standalone recording aur integration asaan ho jati hai. Advanced video analytics features jese tripwire, perimeter detection, double tripwire, aur heatmap bhi mojood hain jo insan aur gaadi ki harkat ko detect aur analyze karte hain.

TC-C35VN multiple fisheye dewarping modes support karta hai, jisme panorama aur PTZ views shamil hain, taake users ek hi screen par mukhtalif angles se monitoring kar saken. Operating temperature range -10°C se 50°C tak hai, aur PoE ya 12V DC power support karta hai, jis se installation mein flexibility milti hai.

Yeh camera major protocols aur platforms jese ONVIF, Milestone, RTSP, aur RTMP ke saath compatible hai, aur aik waqt mein do remote connections ko support karta hai. Apne compact size aur halki weight ke bawajood, yeh camera professional-grade features offer karta hai jo retail, education, aur office environments ke liye ideal hain.

📋 Specifications Table
