TC-C35WQ Spec:I5W/E/Y/4mm/V4.2 Tiandy Pro Early Warning+SMD Dome 5MP Fixed 4mm IP67 Support tripwire Perimeter+Human/Vehicle Classification
TC-C35WQ Spec:I5W/E/Y/4mm/V4.2 Tiandy Pro Early Warning+SMD Dome 5MP Fixed 4mm IP67 Support tripwire Perimeter+Human/Vehicle Classification
Sold by: MA Tech

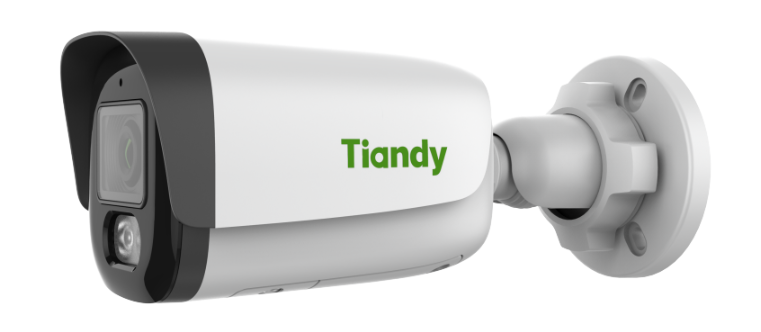

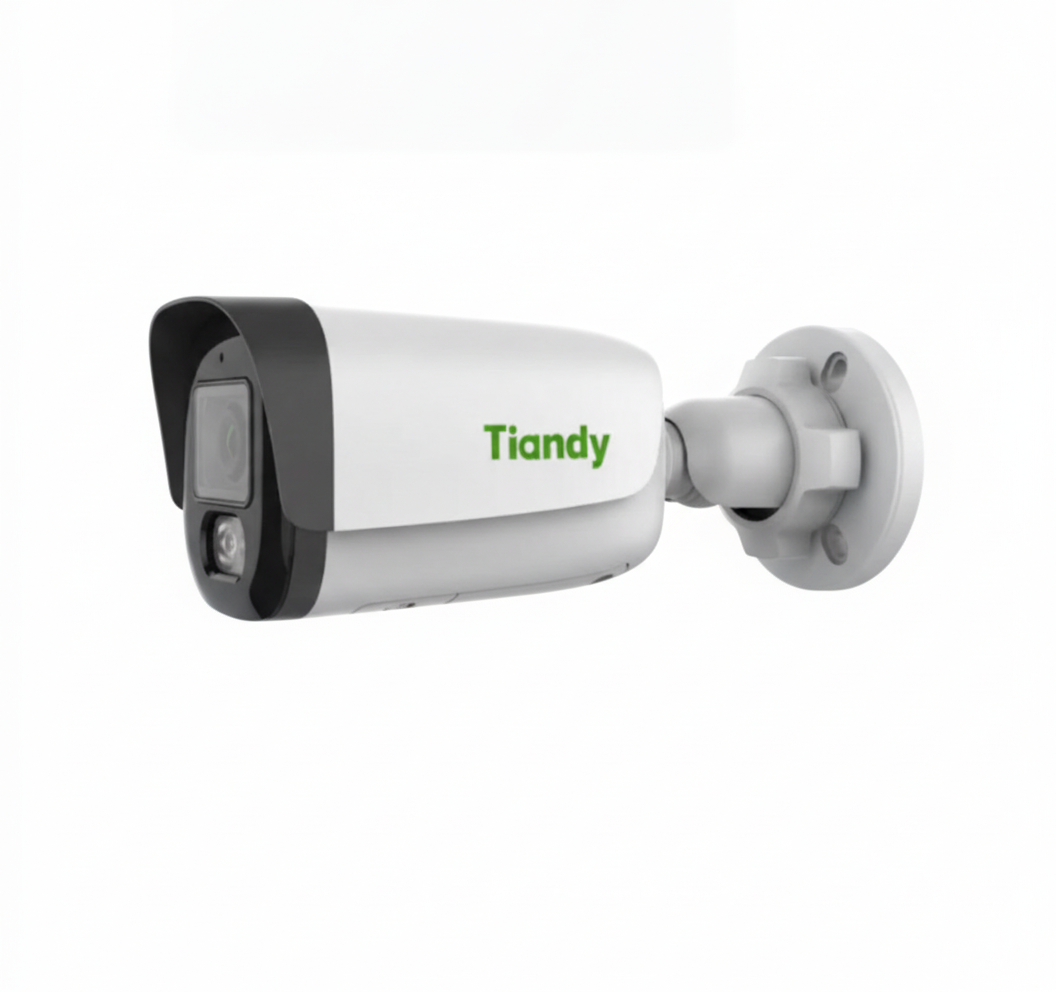

🎯 Tiandy TC-C35WQ – 5MP Fixed Color Maker Bullet Camera
Model: I5W/E/Y/4mm/V4.2 | Pro Series
The TC-C35WQ is a high-end 5MP fixed bullet camera designed for color-rich video surveillance, even in low-light environments. Featuring smart IR and warm light LEDs, this camera captures vibrant color details 24/7. With WDR 120dB, Starlight performance, and support for AI-based analytics, it ensures reliable image quality and intelligent behavior detection.
The camera also includes a built-in microphone and speaker, enabling two-way audio, face detection, perimeter protection, and early warning triggers like sound alerts or light flashes. Ideal for critical areas needing proactive deterrence and vivid detail capture in low light.
TC-C35WQ aik high-end 5MP fixed bullet camera hai jo low-light environments mein bhi color-rich video surveillance provide karta hai. Is camera mein Smart IR aur warm light LEDs mojood hain jo 24 ghante vibrant aur clear color details record karte hain.
Iske andar 120dB WDR, Starlight low-light technology, aur AI-based analytics ka support bhi hai — jo reliable image quality aur smart behavior detection ensure karta hai.
Camera mein built-in microphone aur speaker bhi hain jo two-way audio communication ko possible banate hain. Yeh device face detection, perimeter protection, aur early warning features jaise ke sound alerts ya light flashes ke zariye proactive deterrence provide karta hai.
Yeh camera un jagahon ke liye ideal hai jahan high-security, real-time alerts aur vivid detail capturing zaroori ho — khas taur par low-light ya night-time conditions mein.
📋 Technical Specifications Table
Category | Specification |
Model | TC-C35WQ Spec: I5W/E/Y/4mm/V4.2 |
Series | Pro Series |
Camera Type | 5MP Fixed Color Maker IR Bullet Camera |
Housing | Metal Housing |
Image Sensor | 1/2.7" CMOS |
Min. Illumination | Color: 0.002Lux @ F1.6 (AGC ON), B/W: 0Lux with IR |
Shutter Time | 1s to 1/100,000s |
Day/Night Switching | IR-cut filter with auto switch (ICR) |
Smart IR | Yes |
WDR | 120dB |
S/N Ratio | >39dB |
Angle Adjustment | Pan: 0360°, Tilt: 090°, Rotate: 0~360° |
Lens Type | Fixed focal |
Focal Length | 4mm |
Aperture | F1.6 (Fixed) |
Field of View | H: 91°, V: 46.4°, D: 107° |
Lens Mount | M12 |
DORI Distances | Detect: 80m, Observe: 31.5m, Recognize: 16m, Identify: 8m |
IR LEDs | 2 LEDs (850nm) |
IR Range | Up to 50m |
White LEDs (Warmlight) | 2 LEDs, 15m range |
Compression (Video) | S+265, H.265, H.264 (B/M/H), Motion JPEG |
Compression (Audio) | G.711A/U, ADPCM_D, AAC_LC |
Video Bitrate | 32kbps to 16Mbps |
Audio Sampling Rate | 8kHz / 32kHz / 48kHz |
Max. Resolution | 5MP (2880×1620 @ 30fps) |
Main Stream | PAL: Up to 25fps @ 5MP, NTSC: Up to 30fps @ 5MP |
High Frame Rates | Up to 50/60fps @ 1080p and 720p |
Sub Stream | Up to 25/30fps @ 704×576 ~ 352×240 |
Third Stream | Up to 25/30fps @ 1280×720, 704×576, etc. |
BLC / HLC / AGC | Yes (All supported) |
3D DNR / Defog | Yes / Yes |
White Balance Modes | Auto, Manual, Lock, Sunshine, Nature Light, Warmlight, etc. |
ROI | 8 rectangular areas |
Corridor Mode | Yes |
OSD Regions | 5 regions, 2 lines per region, max 127 characters or 42 Chinese characters |
Picture Overlay | 1 × 200×200 BMP (24-bit color) |
Privacy Mask | 4 areas |
Smart Features | Tripwire, Perimeter, Human/Vehicle Classification, Video/Audio Abnormality |
Early Warning (EW) | Yes (e.g. trigger sound/light) |
Face Detection | Detects up to 8 faces, Captures up to 4 simultaneously |
Face Mode | Face Capture supported |
Alarms (Trigger) | Motion, Mask, IP Conflict, Disk Full/Error, Voltage, etc. |
Alarms (Linkage) | Email, Sound, Warmlight, Recording, Capture, Center Notify, Alarm Output |
Network ANR | Yes |
Protocols | HTTP, HTTPS, TCP/IP, FTP, UDP, SNMP, NTP, IGMP, RTMP, RTSP, IPv6, etc. |
System Compatibility | ONVIF (Profile S/T/G/M), Milestone, SDK, CGI |
Remote Access | Up to 7 simultaneous connections |
Client Software | Easy7 VMS, EasyLive Plus (Mobile) |
Web Interface | IE10+, Chrome57+, Firefox52+, Edge89+, Safari11+ |
Audio I/O | 1 in / 1 out (Built-in Mic & Speaker) |
Alarm I/O | 1 Input (TTL, 3mA, 3.3VDC), 1 Output (TTL, 30mA, 12VDC) |
Reset Button | Yes |
MicroSD Storage | Up to 512GB (microSD / microSDHC / microSDXC) |
RTC | Yes |
Languages | 19 Supported (EN, CN, RU, AR, FR, DE, IT, KO, etc.) |
Operating Temp. | -40℃ ~ +65℃ (-40℉ ~ +149℉) |
Operating Humidity | ≤95% RH |
Storage Temp. | -40℃ ~ +65℃ |
Storage Humidity | 10% ~ 95% RH (non-condensing) |
Power Supply | DC12V ±25% / PoE (IEEE 802.3af) |
Power Consumption | Max. 6.5W (DC), Max. 8W (PoE) |
Protection | IP67, Surge 4000V, ESD 6000V |

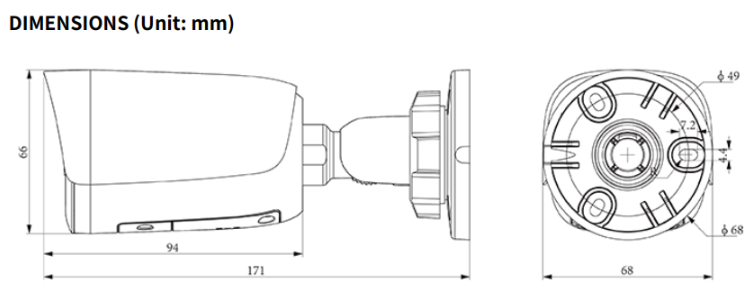

Dimensions | 171 × 68 × 66 mm |
Package Dimensions | 195 × 95 × 105 mm |
Weight (Gross) | 0.73kg |
✅ Key Strengths at a Glance
- 🔍 5MP High-Definition Color Video
- 🌒 0.002 Lux Starlight + IR + Warmlight
- 🎤🔊 Built-in Mic + Speaker (Two-way audio)
- 🔔 Smart Analytics + Early Warning
- 🧠 Face Detection & Human/Vehicle Classification
- 📦 Local Storage up to 512GB
- 🔧 IP67 Rated | Wide Temperature Range
