TC-C35XS Spec:I3/E/Y/C/H/2.8mm/V4.0 5MP Fixed Starlight IR Turret Camera Metal+Plastic POE IP66
TC-C35XS Spec:I3/E/Y/C/H/2.8mm/V4.0 5MP Fixed Starlight IR Turret Camera Metal+Plastic POE IP66
Sold by: MA Tech

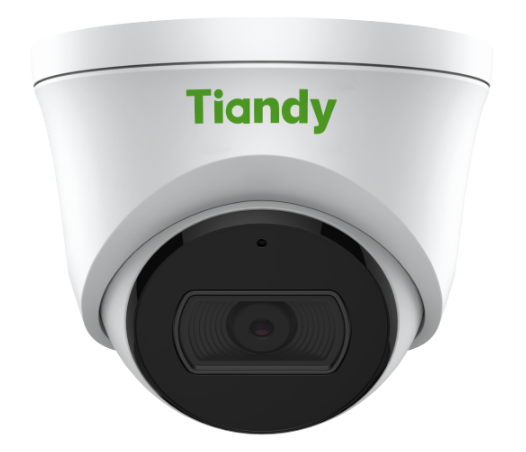

Tiandy TC-C35XS Lite Series 5MP Fixed IR Turret Camera
The Tiandy TC-C35XS is a robust, high-performance 5MP fixed IR turret camera from the Lite Series designed for versatile surveillance applications. Housed in a durable metal and plastic casing, it delivers crisp video at a maximum resolution of 2592×1944 pixels at 20 frames per second. The camera features a sensitive 1/2.8" CMOS sensor with an ultra-low minimum illumination of 0.002 Lux in color mode and 0 Lux in black and white with IR, supported by dual IR LEDs providing an effective night vision range up to 30 meters. It employs advanced video compression technologies including S+265, H.265, and H.264 variants to optimize bandwidth and storage efficiency. The camera supports multiple video streams with WDR of 120dB and incorporates noise reduction technologies for clear images under challenging lighting. Its 2.8mm fixed focal lens offers a wide horizontal field of view of approximately 95 degrees, suitable for broad area coverage. Enhanced functionality includes smart IR, defog, privacy masking, and video analytics such as tripwire and perimeter detection. The device supports on-board storage via microSD cards up to 512GB and provides built-in audio with a microphone. It operates reliably in extreme environmental conditions from -40°C to 65°C with humidity up to 95% non-condensing and meets IP66 standards for dust and water resistance. Power options include DC 12V and PoE IEEE 802.3af, ensuring flexible deployment. The camera integrates smoothly with ONVIF-compliant systems and popular VMS platforms, supporting up to two simultaneous remote connections, and offers extensive protocol compatibility and multi-language web client support.
Tiandy TC-C35XS aik robust aur high-performance 5MP fixed IR turret camera hai jo Lite Series ka hissa hai, aur har qisam ke surveillance applications ke liye design kiya gaya hai. Yeh camera metal aur plastic housing mein band hai aur 2592×1944 pixels tak ki crisp video 20 frames per second par deliver karta hai.
Ismein 1/2.8" CMOS sensor laga hai jo color mode mein sirf 0.002 Lux aur IR ke sath 0 Lux tak ki ultra-low light sensitivity deta hai. Do IR LEDs ki madad se yeh camera 30 meters tak night vision provide karta hai.
Camera mein advanced video compression technologies shamil hain, jaise ke S+265, H.265, aur H.264, jo bandwidth aur storage kaafi efficiently use karti hain. Iska 2.8mm fixed lens kareeb 95-degree horizontal field of view deta hai, jo ke wide area coverage ke liye ideal hai.
Is camera ke smart features mein shamil hain:
- Smart IR taake raat mein overexposure na ho
- Defog function jo dhund mein bhi clear video deta hai
- Privacy masking
- Tripwire aur perimeter detection jaise video analytics
Is camera mein built-in microphone bhi hai aur yeh microSD card (512GB tak) ka support deta hai local storage ke liye. Yeh -40°C se 65°C tak ke extreme temperatures mein reliable kaam karta hai, aur 95% humidity (non-condensing) environment mein bhi perform karta hai. Yeh IP66-rated hai, jo ise dust aur water resistant banata hai.
Power options mein DC 12V aur PoE (IEEE 802.3af) shamil hain, jo flexible installation allow karte hain. Camera ONVIF-compliant hai aur popular VMS platforms ke sath seamlessly integrate ho jata hai. Ismein multi-language web client support aur do remote connections ka option bhi available hai.
Technical Specifications Table
| Category | Specification |
| Model | TC-C35XS |
| Series | Lite Series |
| Housing | Metal + Plastic |
| Image Sensor | 1/2.8" CMOS |
| Max Resolution | 5MP (2592×1944) @ 20fps |
| Min Illumination | Color: 0.002 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1s ~ 1/100000s |
| Day/Night | IR-cut filter with auto switch (ICR) |
| WDR | 120 dB |
| S/N Ratio | >42 dB |
| Lens Type | Fixed focal, M12 mount |
| Focal Length | 2.8 mm |
| Aperture | F1.6, Fixed |
| Field of View (H/V/D) | 94.7° / 52.5° / 118.5° |
| IR LEDs | 2 |
| IR Range | Up to 30 m |
| Wavelength | 850 nm |
| Video Compression | S+265, H.265, H.264B/M/H |
| Video Bit Rate | 32 kbps ~ 6 Mbps |
| Audio Compression | G.711A, G.711U, ADPCM_D |
| Audio Sampling Rate | 8 kHz / 32 kHz / 48 kHz |
| Streams (PAL/NTSC) | Main: Up to 20-30 fps @ various resolutions |
| BLC / HLC / AGC | Yes / Yes / Yes |
| 3D DNR | Yes |
| White Balance Modes | Auto, Semi-Auto, Manual, Sunshine, Nature Light, Warm Light, Daylight, Filament Lamp, Lock |
| Privacy Mask | 4 static areas |
| Defog | Yes |
| Video Analytics | Tripwire, Perimeter |
| Alarm Types | Motion Detection, Mask Alarm, Alarm Input |
| Network Protocols | HTTP, HTTPS, TCP/IP, UDP, UPnP, ICMP, DHCP, DNS, DDNS, Easy DDNS, NTP, TLS v1.2, QoS, IPv4, SSH, FTP, ARP |
| System Compatibility | P2P, ONVIF Profile S/T/G, SDK, CGI, Milestone, RTSP |
| Remote Connections | Up to 2 simultaneous |
| Interface | 1x RJ-45 10/100 Base-T Ethernet |
| Audio I/O | 1 input, 1 output |
| Alarm I/O | 1-ch TTL input, 1-ch TTL output |
| Built-in Mic | Yes |
| On-board Storage | Supports microSD/microSDHC/microSDXC up to 512 GB |
| Operating Temperature | -40°C to 65°C (-40℉ to 149℉) |
| Operating Humidity | ≤95% RH (non-condensing) |
| Storage Temperature | -40°C to 65°C |
| Storage Humidity | 10% to 95% RH (non-condensing) |
| Power Supply | DC12V ±25%, Max 6.5W; PoE IEEE 802.3af, Max 7W |
| Protection | Surge 4000V; ESD 6000V; IP66 |

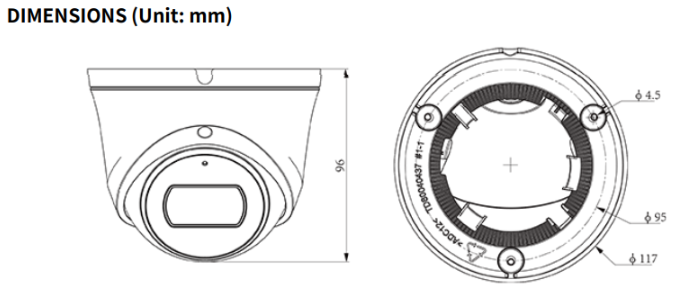

| Dimensions (L×W×H) | 117 × 117 × 96 mm |
| Weight | 0.53 kg |
