TC-C38KS Spec:I3/E/Y/2.8mm/V4.0 Tiandy Lite Lite Star Dome 8MP Fixed 2.8mm IP67, IK10, PoE, Metal+Plastic Housing

TC-C38KS Spec:I3/E/Y/2.8mm/V4.0 Tiandy Lite Lite Star Dome 8MP Fixed 2.8mm IP67, IK10, PoE, Metal+Plastic Housing

Sold by: MA Tech

Regular price PKR 32,666
Regular price Sale price PKR 32,666
Sale Sold out
Shipping calculated at checkout.

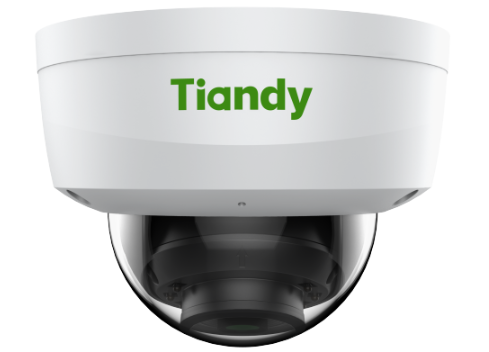

📷 TC-C38KS – 8MP Fixed IR Dome Camera


Lite Series | Model: I3/E/Y/2.8mm/V4.0


📘 Key Features

  • 8MP resolution (3840×2160@20fps)
  • Full HD starlight low-light performance (Color: 0.002Lux)
  • IR range up to 30 meters (Smart IR, 8 LEDs)
  • Human/vehicle classification, tripwire, and perimeter detection
  • Supports S+265, H.265, H.264B/M/H, MJPEG compression
  • Built-in microphone and microSD slot (up to 512GB)
  • Dome with metal+plastic IK10/IP66-rated housing
  • Wide-angle fixed lens: 2.8mm with 104.9° HFOV
  • 120dB WDR, BLC, HLC, 3D DNR, Defog, ROI, OSD overlays
  • Advanced alarm triggers and smart surveillance functions
  • -40℃~65℃ operating temperature, PoE or 12V DC power

  • 8MP resolution (3840×2160@20fps)
  • Full HD starlight low-light performance (rangin: 0.002Lux)
  • IR range takreeban 30 meter (Smart IR, 8 LEDs)
  • Insan aur gaadi ki pehchan, tripwire aur perimeter detection
  • S+265, H.265, H.264B/M/H, MJPEG compression ki support
  • Built-in microphone aur microSD slot (512GB tak)
  • Dome housing jo metal aur plastic se bani hai, IK10/IP66-rated
  • Wide-angle fixed lens: 2.8mm aur 104.9° HFOV
  • 120dB WDR, BLC, HLC, 3D DNR, Defog, ROI, OSD overlays
  • Advanced alarm triggers aur smart surveillance features
  • Operating temperature -40℃ se 65℃ tak, PoE ya 12V DC power support

📋 Technical Specifications

Category Specification
Camera
Image Sensor 1/2.8" CMOS
Min. Illumination Color: 0.002Lux@(F1.6, AGC ON), B/W: 0Lux with IR
Shutter Time 1s ~ 1/100000s
Day/Night IR-cut filter (ICR) with Auto Switch
Smart IR Yes
IR LEDs / Range 8 LEDs / Up to 30m
Wavelength 850nm
WDR 120dB
S/N Ratio >42dB
Angle Adjustment Pan: 0330°, Tilt: 075°, Rotation: 0~350°
Type Fixed focal lens
Focal Length 2.8mm
Aperture F1.6 (Fixed)
Mount M12
Field of View H: 104.9°, V: 56.5°, D: 119.2°
DORI (Detect/Observe/Recognize/Identify) 77m / 30.5m / 15.5m / 7.5m
Max. Resolution 3840×2160 (8MP)
Main Stream PAL: 20fps (3840×2160, 3072×2048), 25fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
NTSC: 20fps (3840×2160, 3072×2048), 30fps (2560×1440, 2304×1296, 1920×1080, 1280×720)
Sub Stream PAL: 25fps (704×576, 704×288, 640×360, 352×288)
NTSC: 30fps (704×480, 704×240, 640×360, 352×240)
Third Stream PAL: 25fps (704×576, 704×288, 352×288, 640×480)
NTSC: 30fps (704×480, 704×240, 352×240, 640×360)
Compression S+265, H.265, H.264B/M/H, Motion JPEG
Bitrate 32Kbps ~ 16Mbps
Image Enhancements BLC, HLC, AGC, 3D DNR, Smart Defog
White Balance Auto / Semi-Auto / Manual / Scene Modes
ROI 8 Fixed Regions
OSD Up to 5 regions, 1 line each; max 127 characters or 42 Chinese characters
Picture Overlay 1× BMP (200×200, 16-color)
Privacy Mask 4 black static areas
Corridor Mode Yes
Built-in Mic Yes
Audio Compression G.711A/U, ADPCM_D, AAC_LC
Sampling Rate 8kHz, 32kHz, 48kHz
Video Analytics Human/Vehicle Classification, Tripwire, Perimeter
General Alarms Motion Detection, Mask Alarm
Exception Alarms Voltage Abnormal, Disk Full/RW Error, IP/MAC Conflict, FTP Exception
Behavior Analysis Rules Up to 8 Rules in 1 Scene
Alarm Linkage Send Email, Record, Capture, Notify Center
Interface 1× RJ-45 (10/100 Base-T Ethernet)
Protocols HTTP, HTTPS, TCP/IP, UDP, UPnP, DHCP, DNS, DDNS, NTP, FTP, SFTP, RTSP, RTMP, IGMP, SNMP, QoS, ARP, PPPoE, IPv4/IPv6, SRTP, SSH, 802.1X, TLS, SSL
Compatibility ONVIF (Profiles S/T/G/M), SDK, CGI, Milestone
ANR Yes
Remote Connections ≤2 Users
Client Software Easy7 (VMS), EasyLive Plus (Mobile)
Web Browsers IE10+, Firefox52+, Edge89+, Chrome57+, Safari11+
On-board Storage microSD/microSDHC/microSDXC, up to 512GB
RTC Yes
Reset Button Yes (Internal)
Operating Temp. -40℃ ~ +65℃ (-40℉ ~ +149℉)
Storage Temp./Humidity -40℃ ~ +65℃, 10%~95% RH (non-condensing)
Operating Humidity ≤95% RH
Power Supply DC12V±25%, PoE (IEEE 802.3af)
Power Consumption Max. 6W (DC), Max. 7.5W (PoE)
Protection Rating IP66, IK10, Surge 4000V, ESD 6000V

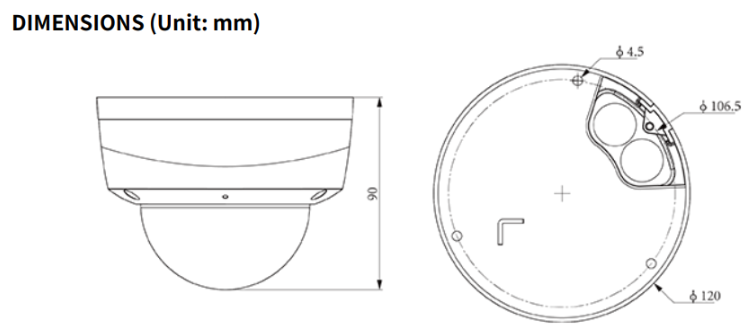

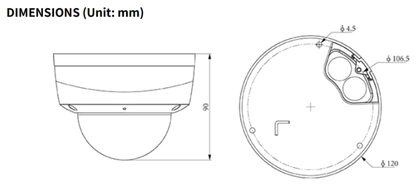

Dimensions (Camera) 120 × 120 × 90 mm
Package Dimensions 140 × 140 × 120 mm
Weight (Gross) 0.61 kg
Languages English, Chinese (Simplified & Traditional), Spanish, Korean, Italian, Turkish, Russian, Thai, French, Polish, Dutch, Hebrew, Arabic, Vietnamese, German, Ukrainian, Portuguese, Albanian
