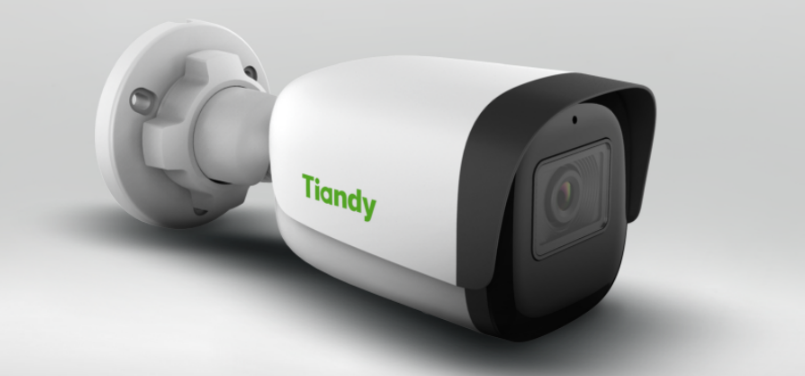

TC-C38WS – 8MP Fixed Starlight IR Bullet Camera
Pro Series | Model Spec: I5/E/Y/M/H/2.8mm(4mm)/V4.0
📘 Product Overview
Tiandy’s TC-C38WS is an 8MP Pro Series IP bullet camera with Starlight capabilities, advanced video analytics, and human/vehicle classification. Engineered with a full-metal housing, Smart IR (50m), and plugin-free web access, it delivers exceptional clarity and security intelligence—perfect for enterprise, perimeter, and public surveillance applications.
Tiandy ka TC-C38WS ek 8MP Pro Series IP bullet camera hai jo Starlight technology, advanced video analytics, aur insaan aur gaadi ki pehchaan (human/vehicle classification) ke features ke sath aata hai. Iska full-metal housing bohat mazboot hai, aur Smart IR ki range 50 meter tak hai.
Ye camera plugin-free web access support karta hai, jis se ise asani se manage kiya ja sakta hai. Yeh camera behtareen tasveer ki quality aur security intelligence provide karta hai, jo ise enterprise, perimeter, aur public surveillance ke liye perfect banata hai.
📋 Technical Specification Table
Category | Specification |
Model | TC-C38WS Spec: I5/E/Y/M/H/2.8mm(4mm)/V4.0 |
Series | Pro Series |
Camera Type | Fixed Lens Bullet Camera |
Housing Material | Full Metal |
Image Sensor | 1/2.8" CMOS |
Signal System | PAL / NTSC |
Min. Illumination | Color: 0.003Lux @ F1.6 (AGC ON); B/W: 0Lux with IR |
Shutter Speed | 1s ~ 1/100,000s |
Day & Night | Dual IR Cut Filter with Auto Switch |
WDR (Wide Dynamic Range) | 120dB |
Angle Adjustment | Pan: 0–360°, Tilt: 0–75°, Rotate: 0–360° |
Lens Type | Fixed |
Focal Length Options | 2.8mm / 4mm |
Lens Mount | M12 |
Aperture | F1.6 (Fixed) |
Horizontal FOV | 96° (2.8mm) / 84.8° (4mm) |
IR LEDs | 2 |
IR Range | Up to 50m |
IR Wavelength | 850nm |
White/Warmlight LEDs | Not Available |
Max. Resolution | 3840 × 2160 (8MP) |
Main Stream | PAL: 25fps (3840×2160, 3072×2048, 2560×1440, etc.) |
NTSC: 30fps (same resolutions) | |
Sub Stream | PAL: 25fps (704×576, 704×288, etc.) |
NTSC: 30fps (704×480, 704×240, etc.) | |
Third Stream | PAL: 25fps (704×576, 704×288, etc.) |
NTSC: 30fps (704×480, 704×240, etc.) | |
Video Compression | S+265 / H.265 / H.264 / M-JPEG |
Video Bitrate | 32 Kbps ~ 16 Mbps |
Audio Compression | G.711A / G.711U / ADPCM / AAC |
Audio Bitrate | 8 Kbps ~ 48 Kbps |
Image Settings | Brightness, Contrast, Sharpness, Saturation (via client/web) |
Image Enhancements | BLC, 3D DNR, HLC, Corridor Format |
ROI | 8 Fixed Regions |
OSD Overlay | Up to 8 Regions; Resolutions: 16×16 to 96×96; Info: Week, Date, Time |
Picture Overlay | Yes |
Privacy Masking | Yes, 4 Regions |
Smart Defog | Yes |
Alarm Triggers | Motion, Mask Alarm, Disk Events, IP/MAC Conflict, Video/Audio Abnormal, etc. |
Video Analytics | Tripwire, Double Tripwire, Perimeter, Object Abandon/Lost, Loitering, Running, Parking, Crowd, People Counting, On Duty Detection, Heatmap, Safety Helmet Detection, Human/Vehicle Classification |
Early Warning (EW) | Not Available |
ANR (Automatic Recovery) | Yes (Only with Tiandy NVRs) |
Network Protocols | IPv4/IPv6, IGMP, ICMP, TCP, UDP, DHCP, PPPoE, RTP/RTSP/RTCP, DNS, DDNS, FTP, NTP, HTTPS, SNMP, SSL, QoS, RTMP, SFTP, Multicast, NFS |
System Compatibility | ONVIF (Profiles S/T/G), SDK, CGI, Milestone, P2P |
Remote Connections | Max 7 Clients |
Client Software | Easy7, EasyLive |
Web Interface | Web6 (Plugin-Free) |
Communication Interface | 1 × RJ45 (10/100 Mbps, Self-Adaptive) |
Audio I/O | 1 Input / 1 Output, Built-in Mic |
Alarm I/O | 1 Input / 1 Output |
Reset Button | Yes |
Onboard Storage | MicroSD/SDHC/SDXC card, up to 512GB |
Languages Supported | 17 Languages (EN, RU, CN, FR, ES, TH, DE, etc.) |
Operating Temperature | -40°C to +65°C |
Operating Humidity | 0% ~ 95% RH (non-condensing) |
Power Supply | DC12V ±25% / PoE (802.3af) |
Power Consumption | Max 6W (DC); Max 7W (PoE) |
Protection Rating | IP67, Surge/Lightning/Transient Protection (EN 55035:2017) |
Heater | Not Available |

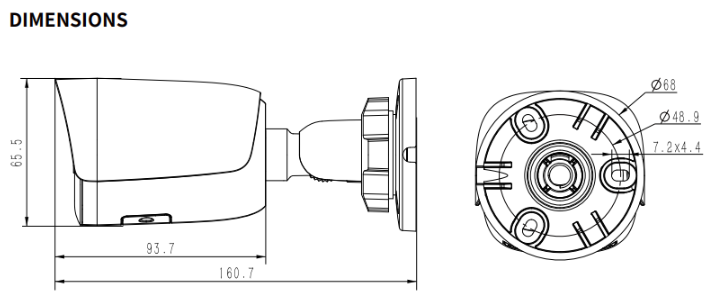

Dimensions | 160.8 × 68 × 74.5 mm (6.33 × 2.68 × 2.93 in) |
Weight | 0.50 kg (1.10 lb) |

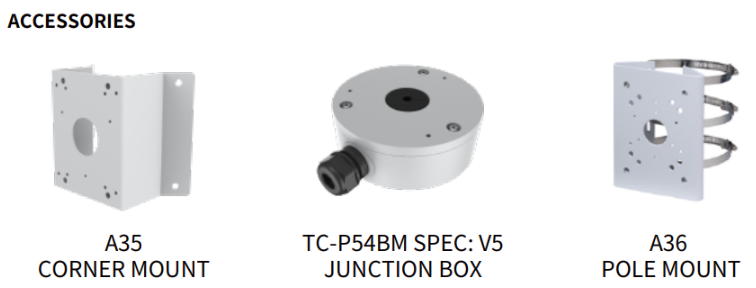

Accessories | A35 Corner Mount, A36 Pole Mount, TC-P54BM Junction Box |
