TC-C38XS Spec:I3/E/Y/M/2.8mm/V4.0 Tiandy Lite Lite Star Turret 8MP Fixed 2.8mm IP67 POE Full metal housing
TC-C38XS Spec:I3/E/Y/M/2.8mm/V4.0 Tiandy Lite Lite Star Turret 8MP Fixed 2.8mm IP67 POE Full metal housing
Sold by: MA Tech
TC-C38XS – 8MP Fixed Starlight IR Turret Camera
Lite Series | Model: I3/E/Y/M/2.8mm/V4.0
📘 Product Overview

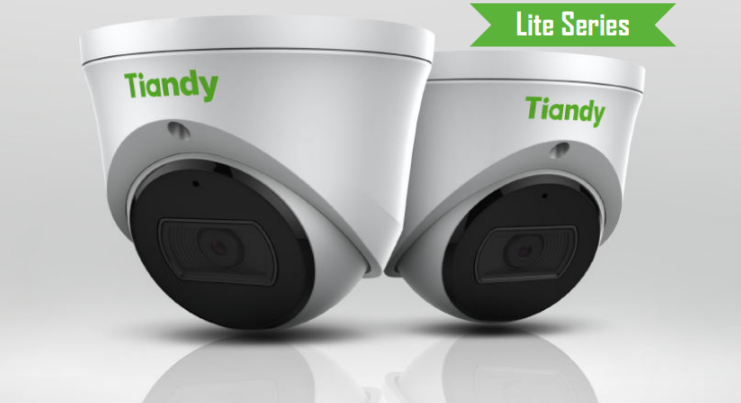

The Tiandy TC-C38XS is a high-performance 8MP turret-style camera in a compact, full-metal housing, delivering 4K resolution, starlight low-light performance, tripwire/perimeter analytics, and robust IP67 protection. Ideal for indoor/outdoor surveillance, this camera combines value and clarity in a versatile form factor.
Tiandy ka TC-C38XS ek high-performance 8MP turret-style camera hai jo chhoti aur mazboot full-metal housing mein bana hai. Yeh camera 4K resolution, starlight low-light performance, aur tripwire/perimeter analytics jaise advanced features ke sath aata hai. Iska IP67 protection ise indoor aur outdoor dono surveillance ke liye behtareen banata hai.
Yeh camera apni versatility aur behtareen tasveer ki wazahat ke sath value bhi provide karta hai, jo use mukhtalif jagahon par use karne ke liye ideal banata hai.
📋 Technical Specifications
Category | Specification |
Product Type | 8MP Fixed Lens Turret Camera |
Model | TC-C38XS SPEC: I3/E/Y/M/2.8MM/V4.0 |
Series | Lite Series |
Housing | Full Metal |
Image Sensor | 1/2.8" CMOS |
Signal System | PAL / NTSC |
Minimum Illumination | Color: 0.003 Lux @ F1.6 (AGC ON); B/W: 0 Lux with IR |
Shutter Speed | 1s ~ 1/100,000s |
Day & Night | Dual IR Cut Filter with Auto Switch |
WDR | 120dB |
Angle Adjustment | Pan: 0–340°, Tilt: 0–75°, Rotate: 0–360° |
Lens Type | Fixed |
Focal Length | 2.8mm |
Aperture | F1.6 (Fixed) |
Horizontal FOV | 100.1° |
Lens Mount | M12 |
IR LEDs | 2 |
IR Range | Up to 30m |
IR Wavelength | 850nm |
Max. Resolution | 3840 × 2160 (8MP) |
Main Stream | PAL: 20fps (3840×2160, 3072×2048), 25fps (2560×1440, etc.) |
NTSC: 20/30fps | |
Sub Stream | PAL: 25fps (704×576, etc.) |
NTSC: 30fps (704×480, etc.) | |
Third Stream | PAL: 25fps (704×576, etc.) |
NTSC: 30fps (704×480, etc.) | |
Video Compression | S+265 / H.265 / H.264 / M-JPEG |
Video Bitrate | 32 Kbps ~ 16 Mbps |
Audio Compression | G.711A / G.711U / ADPCM / AAC |
Audio Bitrate | 8 ~ 48 Kbps |
Image Settings | Brightness, Contrast, Sharpness, Saturation (via client/web) |
Image Enhancements | BLC, 3D DNR, HLC, Corridor Format |
ROI (Region of Interest) | 8 Fixed Regions |
OSD Overlay | Up to 8 Regions; Size Options: 16×16 to 96×96; Includes Week, Date, Time |
Picture Overlay | Yes |
Privacy Masking | Yes, 4 Regions |
Smart Defog | Yes |
Alarm Triggers | Motion, Mask Alarm, Disk Full, IP Conflict, Voltage Abnormal, FTP Exception |
Video Analytics | Tripwire, Perimeter |
Early Warning (EW) | Not Available |
ANR (Auto Network Recovery) | Not Supported |
Supported Protocols | TCP/IP, HTTP(S), FTP, DHCP, DNS, DDNS, RTP/RTSP/RTCP, PPPoE, Multicast, NTP, UPnP, SMTP, IGMP, IPv4/IPv6, ARP, UDP, SNMP, SSL, Telnet, RTMP, SFTP, NFS |
System Compatibility | ONVIF (Profiles S/T/G), SDK, CGI, P2P |
Client Software | Easy7, EasyLive |
Web Interface | Web6 (Plugin-Free) |
Remote Connections | Up to 7 Clients |
Network Interface | 1 × RJ45 (10M/100M, Self-Adaptive) |
Audio I/O | Mic In |
Alarm I/O | Not Available |
Reset Button | Yes |
Onboard Storage | Built-in MicroSD Slot, up to 512 GB |
Web UI Languages | 15 Languages (EN, RU, CN, FR, ES, IT, TH, DE, etc.) |
Operating Temp. | -40°C ~ +65°C |
Operating Humidity | 0 ~ 95% RH (non-condensing) |
Power Supply | DC 12V ±25% / PoE (802.3af) |
Power Consumption | Max: 7W (DC), Max: 8W (PoE) |
Protection | IP67, Lightning/Surge/Transient Protection (EN 55035:2017) |
Heater | Not Available |

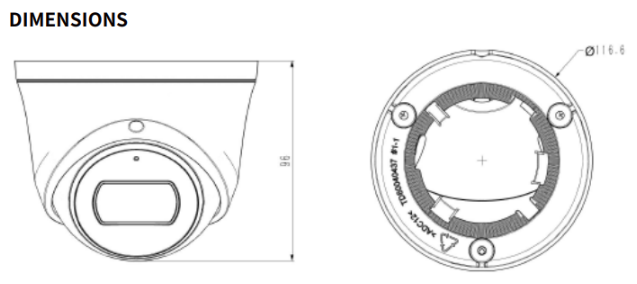

Dimensions | Ø116.6 × 83.7 mm (4.59 × 3.30 in) |
Weight | 0.47 kg (1.04 lb) |

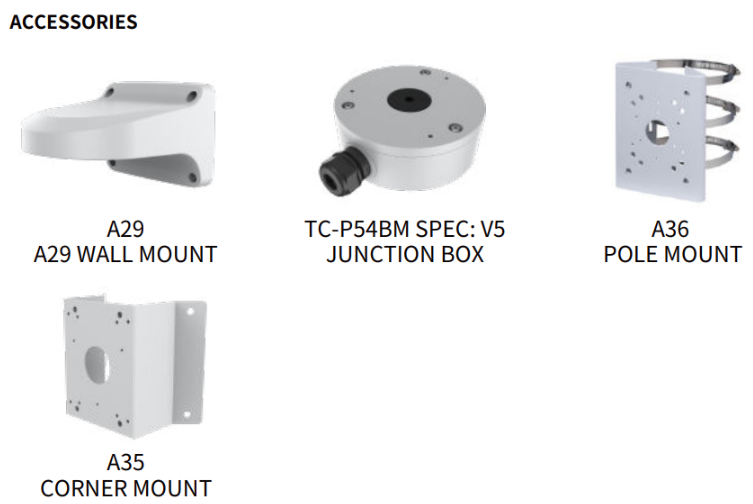

Mounting Accessories | A29 Wall Mount, A35 Corner Mount, A36 Pole Mount, TC-P54BM Junction Box |
