TC-H3169M Spec:63X/LW/P/A/AR Tiandy Ultra Panorama PTZ 16MP 63X IP66
TC-H3169M Spec:63X/LW/P/A/AR Tiandy Ultra Panorama PTZ 16MP 63X IP66
Sold by: MA Tech

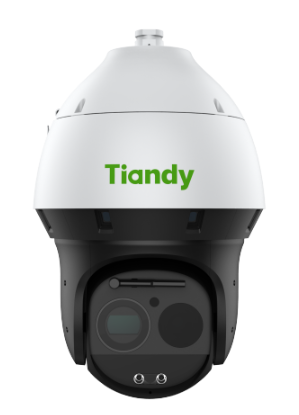

Tiandy TC-H3169M Pro Series Dual-Lens 63× PTZ Camera with Laser, IR, and Smart Surveillance
📄 Product Description:
The Tiandy TC-H3169M is a high-end Pro Series PTZ camera combining an ultra-wide panoramic view with detailed long-range zoom in a dual-lens system. Featuring 63× optical zoom, 6 laser LEDs (up to 500m), and 11 IR LEDs (up to 300m), this camera delivers top-tier imaging performance in ultra-low-light conditions (0.0004 lux). The panorama lens captures 5520×2400 resolution at 25fps, while the detail lens provides precise close-ups with smart features such as auto-tracking, video analytics, safety detection, and human/vehicle classification.
Engineered for mission-critical environments, it boasts an IP66-rated metal body, surge/lightning protection, and operation down to -40°C. With powerful image analytics, 512GB onboard storage, and extensive network protocol support including ONVIF (S/T/G/M) and RTMP, it's ideal for smart city surveillance, border control, and large-scale industrial security.
Tiandy TC-H3169M ek high-end Pro Series PTZ camera hai jo dual-lens system ke sath ultra-wide panoramic view aur detailed long-range zoom dono provide karta hai.
Is camera mein 63× optical zoom, 6 laser LEDs (jo 500 meter tak ki roshni deti hain), aur 11 IR LEDs (jo 300 meter tak ka IR range cover karti hain) shamil hain. Yeh camera ultra-low-light conditions mein bhi zabardast imaging deta hai, jiska minimum illumination sirf 0.0004 lux hai.
- Panorama lens 5520×2400 resolution pe 25fps video capture karta hai,
- Jabke detail lens precise close-ups provide karta hai.
Ismein advanced smart features bhi hain jaise:
- Auto-tracking
- Video analytics
- Safety detection
- Human aur vehicle classification
Yeh camera mission-critical environments ke liye banaya gaya hai, aur iska metal body IP66-rated hai jo dust aur paani se puri tarah mehfooz rakhta hai. Is mein surge aur lightning protection bhi hoti hai aur yeh -40°C tak ke extreme temperature mein kaam karta hai.
Ismein powerful image analytics, 512GB onboard storage, aur extensive network protocol support shamil hain, jismain ONVIF (S/T/G/M) aur RTMP bhi hain.
Yeh camera smart city surveillance, border control, aur large-scale industrial security ke liye behtareen choice hai.
📊 Technical Specifications
Category | Panorama Lens | Detail Lens |
Image Sensor | 1/1.8" CMOS | 1/1.8" CMOS |
Max. Resolution | 5520×2400 @ 25fps | 2560×1440 @ 25fps |
Min. Illumination | 0.0004 lux | 0.001 lux |
WDR | DWDR | 120dB |
Focal Length | 2.8mm (fixed) | 5.7mm – 359mm (63× Optical Zoom) |
Digital Zoom | N/A | 16× |
Aperture | F1.0 | F1.63 – F4.94 |
Field of View (H/V/D) | H: 180° ±10°, V: 90° ±10° | H: 60° – 1.5°, V: 35.5° – 0.87°, D: 67.5° – 1.77° |
Shutter Time | 1s – 1/100,000s | 1s – 1/100,000s |
Focus Control | N/A | Auto / Semi-auto / Manual |
Iris Control | Fixed | Auto |
Close Focus Distance | 200mm | 1000mm – 3000mm |
DORI Distance (Detect/Identify) | 63m / 6m | 3800m / 380m |
Pan Range | N/A | 360° endless |
Tilt Range | N/A | -21° to 90° (Auto Flip) |
Pan/Tilt Speed | N/A | Pan/Tilt Manual: 0.1°–120°/s, Preset: 180°/s |
Zoom Speed | N/A | <8s |
Preset / Cruise / Scan / Pattern | N/A | 500 Presets, 16 Cruises, 8 Scans, 8 Patterns |
Power-off Memory / Preset Freeze | — | Yes / Yes |
IR LEDs / Distance | N/A | 11 LEDs / 300m |
IR Wavelength | N/A | 850nm |
Laser LEDs / Distance | N/A | 6 LEDs / 500m |
White LEDs / Distance | N/A | 2 LEDs / 30m |
Red/Blue Alarm Flash | N/A | Yes |
Video Compression | S+265 / H.265 / H.264 / M-JPEG | S+265 / H.265 / H.264 / M-JPEG |
Audio Compression | G.711A / G.711U / ADPCM_D / AAC_LC | G.711A / G.711U / ADPCM_D / AAC_LC |
Audio Sampling Rate | 8kHz / 32kHz / 48kHz | 8kHz / 32kHz / 48kHz |
Video Bitrate | 32 Kbps – 16 Mbps | 32 Kbps – 16 Mbps |
Storage | MicroSD slot up to 512 GB (shared) | Same |
Defog / Demist | Yes / Yes | Yes / Yes |
Image Stabilization (EIS) | N/A | Yes |
Privacy Mask | 8 regions | 24 regions |
OSD | Up to 5 regions, multi-size (16×16–128×128) | Same + vector/lattice fonts |
Video Analytics (VCA) | Human/Vehicle Class., Tripwire, Perimeter | All Panorama features + Object Abandon/Lost, Loitering, People Counting, Safety Helmet Detection, Audio/Video Abnormal |
Auto-Tracking | Yes | Yes |
Early Warning | Yes | Yes |
Face Capture | N/A | Yes |
Network Protocols | HTTP, HTTPS, TCP/IP, UDP, NTP, FTP, SNMP, RTSP, P2P, IPv6 | Same |
ONVIF | Profile S / T / G / M | Same |
Remote Users | ≤7 concurrent | Up to 32 users / 4 access levels |
Client Software | Easy7 Smart Client | Same |
Interface Ports | 1× RJ45 (10/100/1000M), 1 Audio In/Out, RS-485, 8 In / 2 Out Alarms | Same |
Reset Button / Wiper / Compass | Yes / Yes / Yes | Yes |
Power Supply | DC36V ±25% | Same |
Power Consumption | — | (Varies with IR/Laser, not specified) |
Operating Temp (IR OFF/ON) | -40°C ~ 70°C (IR OFF), -40°C ~ 40°C (IR ON) | Same |
Humidity (Op/Storage) | 0–95% RH | 0–95% RH (non-condensing) |
Protection Ratings | IP66, Surge: 4000V, Lightning: 6000V | Same |
Material | Metal | Same |

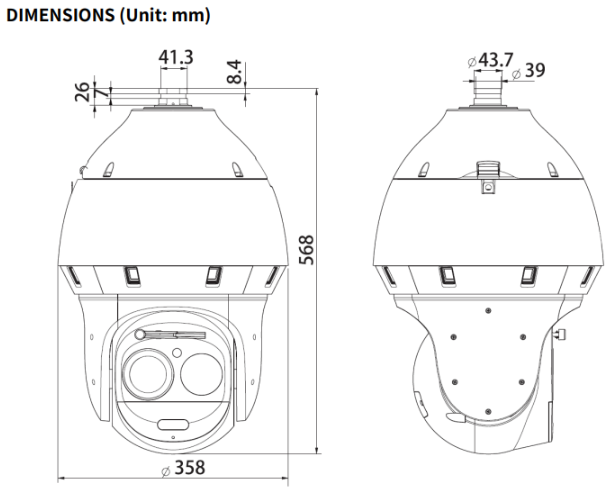

Dimensions (Camera) | 358mm (D) × 568mm (H) | Same |
Weight (Net / Gross) | 14.8kg / 21.7kg | Same |
