TC-H322N Spec:I2W/WIFI/Eu/4mm/V4.1 Tiandy Superlite Wi-Fi PT/Desk 2MP Fixed 4mm (New Arrival)
TC-H322N Spec:I2W/WIFI/Eu/4mm/V4.1 Tiandy Superlite Wi-Fi PT/Desk 2MP Fixed 4mm (New Arrival)
Sold by: MA Tech
📄 Product Overview
The Tiandy TC-H322N is a compact and intelligent 2MP Wi-Fi PT camera from the Wi-Fi Series, designed for home or small business surveillance with both convenience and advanced features in mind. It delivers crisp 1080p video at 20fps, enhanced by Smart IR with a 20-meter range, ensuring clear night vision.
Equipped with a 4mm fixed lens, the camera provides a wide 87.4° diagonal field of view. With pan-tilt control (350° pan / -90° to 25° tilt), auto-tracking, built-in mic and speaker, and smart alarms, it’s ideal for real-time monitoring and interactive communication.
The camera supports dual connectivity—wired and Wi-Fi (2.4GHz)—and offers local recording via microSD (up to 512GB). With intelligent alerts, sound and warmlight trigger, and support for ONVIF, RTSP, and SDK, it is easy to integrate and deploy in most IP surveillance systems.
Tiandy TC-H322N ek chhota aur smart 2MP Wi-Fi PT camera hai jo Wi-Fi Series ka hissa hai, aur ghar ya chhoti business surveillance ke liye design kiya gaya hai jahan asaani aur advanced features dono zaruri hon.
Yeh camera 1080p video 20fps par deliver karta hai, jisme Smart IR ka 20-meter range shamil hai, jo raat ko bhi wazeh aur saaf tasveer deta hai.
Ismein 4mm fixed lens laga hai jo 87.4° diagonal field of view provide karta hai. Camera mein pan-tilt control hota hai (350° pan aur -90° se 25° tilt), saath hi auto-tracking, built-in microphone aur speaker, aur smart alarms bhi hain, jo real-time monitoring aur interactive communication ke liye behtareen hain.
Yeh camera dual connectivity support karta hai — wired aur Wi-Fi (2.4GHz), aur microSD card ke zariye local recording (512GB tak) ki sahulat deta hai.
Iske smart alerts, sound aur warm light trigger, aur ONVIF, RTSP, SDK support ki wajah se yeh aasani se kisi bhi IP surveillance system mein integrate aur deploy kiya ja sakta hai.
📊 Technical Specifications
Category | Specification |
Model | TC-H322N Spec: I2W/WIFI/Eu/4mm/V4.1 |
Camera Type | 2MP Fixed Color Maker Wi-Fi PT Camera |
Housing Material | Plastic |
Image Sensor | 1/3" CMOS |
Min. Illumination | Color: 0.02Lux @F2.0 (AGC ON), B/W: 0Lux with IR |
Shutter Speed | 1s ~ 1/100000s |
Day/Night Mode | IR-cut filter with auto switch (ICR) |
WDR | Digital WDR (DWDR) |
S/N Ratio | >38dB |
Pan Range / Speed | 0°–350°, 45°/s |
Tilt Range / Speed | -90° to 25°, 30°/s |
Preset Points | 255 |
Lens Type | Fixed Focal |
Focal Length | 4mm |
Lens Mount | M12 |
Aperture | F2.0 (Fixed) |
Field of View | H: 75°, V: 41°, D: 87.4° |
DORI Distance | D: 59.3m, O: 23.5m, R: 11.9m, I: 5.9m |
IR LEDs / Distance | 4 LEDs / Up to 20m |
White LED / Distance | 1 LED / 10m |
IR Wavelength | 850nm |
Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
Video Bit Rate | 32Kbps ~ 4Mbps |
Audio Compression | G.711A / G.711U |
Audio Sampling Rate | 8kHz / 16kHz |
Max. Resolution | 2MP (1920×1080) @20fps |
Main Stream (PAL/NTSC) | PAL: 25fps / NTSC: 30fps (1920×1080 down to 640×480) |
Sub Stream (PAL/NTSC) | PAL: 25fps / NTSC: 30fps (704×576 down to 352×240) |
BLC / HLC / AGC / 3D DNR | Yes |
Defog / White Balance | Yes / Auto, Semi-Auto, Manual, Multiple Presets |
OSD / Privacy Mask | 1 region, 1 line, 48 characters / 4 black static areas |
Audio Features | Built-in Mic and Speaker |
Smart Features | Auto-Tracking, Smart Alarm |
Alarms | Mask Alarm, Disk Full, Disk R/W Error, IP Conflict |
Alarm Linkage | Trigger Sound, Warmlight, Recording, Capture, Notify Surveillance Center |
Wi-Fi Standards | IEEE 802.11b/g/n, 2.4GHz ~ 2.4835GHz |
Wi-Fi Transmission | Up to 30m (environment-dependent) |
Wi-Fi Security | WPA-PSK / WPA2-PSK |
Network Protocols | HTTP, TCP/IP, UDP, ICMP, DHCP, DNS, NTP, FTP, TLS v1.2, IPv4, SSH, Unicast |
System Compatibility | ONVIF (Profile S/T), SDK, CGI, RTSP, Milestone |
Remote Connection | Up to 2 users |
Client Software | Easy7 VMS, EasyLive Plus |
Web Compatibility | IE10+, Firefox 52+, Chrome 57+, Edge 89+, Safari 11+ |
Reset Button | Yes |
Storage | microSD/microSDHC/microSDXC, up to 512GB |
Languages Supported | English, Simplified Chinese, Vietnamese |
Operating Temperature | -10°C to 45°C (14℉ to 113℉) |
Operating Humidity | ≤95% RH |
Storage Temperature | -10°C to 45°C |
Storage Humidity | 10%–95% RH (non-condensing) |
Power Supply | DC12V±25%, Max. 11W |
Protection | Surge: 500V, ESD: 6000V |

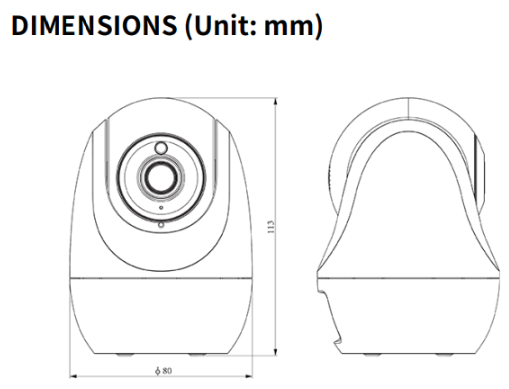

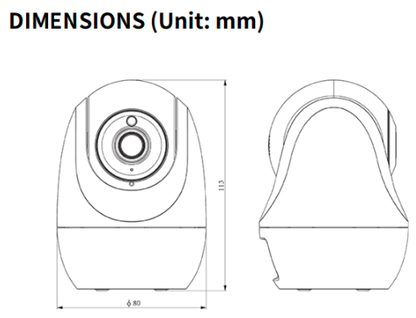

Dimensions (Camera) | 80×80×113mm |
Dimensions (Package) | 97×97×165mm |
Weight | 0.38kg |
