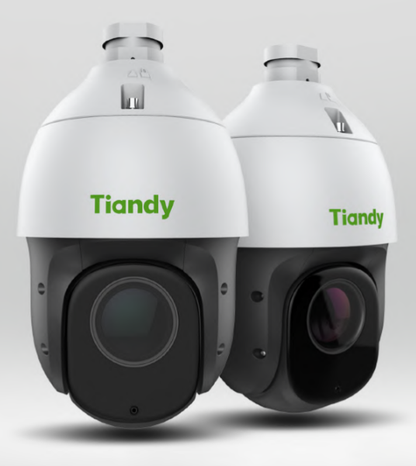

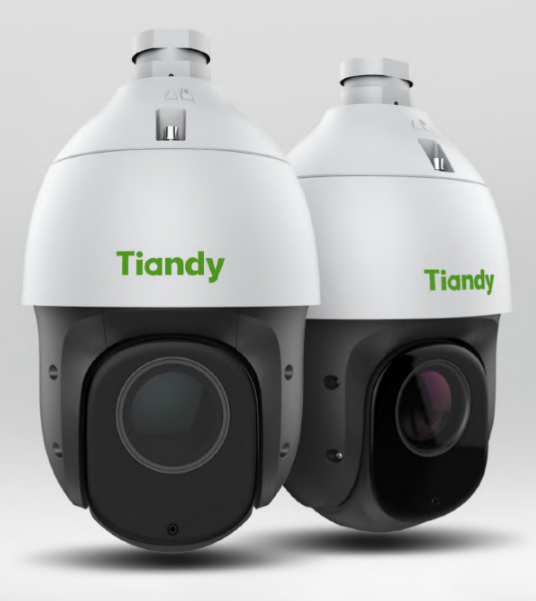

Tiandy TC-H324S Lite Series 2MP 25× Starlight IR PTZ Camera
Product Summary:
The Tiandy TC-H324S is a Lite Series 2MP PTZ camera featuring powerful 25× optical zoom combined with 16× digital zoom, designed for high-performance surveillance with crystal-clear 1080p video at 30fps. Its advanced 1/2.8" CMOS sensor delivers exceptional low-light performance with a minimum illumination of just 0.001 Lux (color) and 0 Lux in black and white with IR, supported by 6 IR LEDs offering up to 150 meters of night vision. The camera offers a wide dynamic range of 140dB for vivid image details in challenging lighting conditions. With comprehensive video compression options (S+265, H.265, H.264, MJPEG), intelligent monitoring including face capture, built-in heater for extreme weather, and robust IP66 and IK10 ratings, this PTZ is suitable for a variety of demanding security applications. It supports multiple network protocols and remote connections, on-board storage up to 256GB, and is compatible with Tiandy’s Easy7 and EasyLive clients.
Tiandy TC-H324S ek Lite Series ka 2MP PTZ camera hai jo 25× optical zoom aur 16× digital zoom ke sath aata hai. Yeh camera high-performance surveillance ke liye design kiya gaya hai, jo 1080p Full HD video 30fps par deliver karta hai.
Is camera ka 1/2.8" CMOS sensor bohat achi low-light performance deta hai, jisme minimum illumination sirf 0.001 Lux (color) aur 0 Lux (B/W with IR) hai. Yeh camera 6 IR LEDs ke sath aata hai jo 150 meters tak night vision provide karti hain.
Camera mein 140dB Wide Dynamic Range (WDR) bhi hai jo difficult lighting conditions mein bhi clear aur detailed image deta hai.
Yeh device support karta hai:
- Advanced video compression formats: S+265, H.265, H.264, aur MJPEG
- Intelligent features: jaise ke face capture
- Built-in heater: jo extreme weather conditions mein bhi camera ko protect karta hai
- IP66 aur IK10 rating: jo ise waterproof aur vandal-resistant banati hain
Is PTZ camera mein on-board storage up to 256GB, multiple network protocols, aur remote access ka support hai. Yeh Tiandy Easy7 aur EasyLive software clients ke sath compatible hai, jo ise flexible aur powerful surveillance solution banata hai har qisam ke demanding environments ke liye.
Key Specifications Table
| Feature | Specification |
| Model | TC-H324S |
| Series | Lite Series |
| Sensor | 1/2.8" CMOS |
| Resolution | 2MP (1920×1080) @ 30fps |
| Min Illumination | 0.001 Lux (Color @ F1.5, AGC ON), 0 Lux with IR |
| Zoom | Optical 25×, Digital 16× |
| Focal Length | 4.8mm – 120mm |
| Aperture | F1.5 – F3.8 |
| Angle of View (H/V) | 58.5°–2.8° Horizontal, 33.2°–1.5° Vertical |
| Pan/Tilt Range | Pan: 360°, Tilt: -16° to 90° (auto flip) |
| Pan Speed | Manual 0.1°–200°/s, Preset 240°/s |
| Tilt Speed | Manual 0.1°–120°/s, Preset 180°/s |
| IR LEDs | 6 |
| IR Range | Up to 150 m |
| Video Compression | S+265, H.265, H.264, MJPEG |
| WDR | 140 dB |
| Video Bitrate | 32 Kbps – 16 Mbps |
| Audio | G.711A/U, ADPCM_D, AAC_LC Compression |
| Alarm & Analytics | Motion, Mask, Network, IP/MAC Conflicts, Tripwire, Perimeter, Face Capture, People Counting, Heatmap, Crowd Analysis, etc. |
| Face Detection | Up to 16 faces detected simultaneously |
| On-board Storage | microSD up to 256 GB |
| Operating Temp. | -40°C to 70°C (IR OFF), -40°C to 40°C (IR ON) |
| Ingress Protection | IP66, IK10 |
| Power Supply | DC 12V ±10%, PoE |
| Power Consumption | 10.7W (IR OFF), 20.6W (IR ON) |

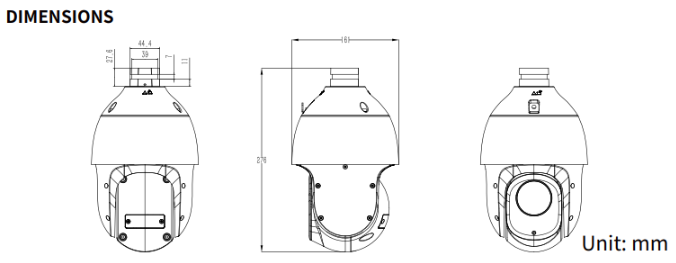

| Dimensions | Φ161 × 276 mm (Φ6.34" × 10.87") |
| Weight | 2.9 kg (6.39 lb) |
