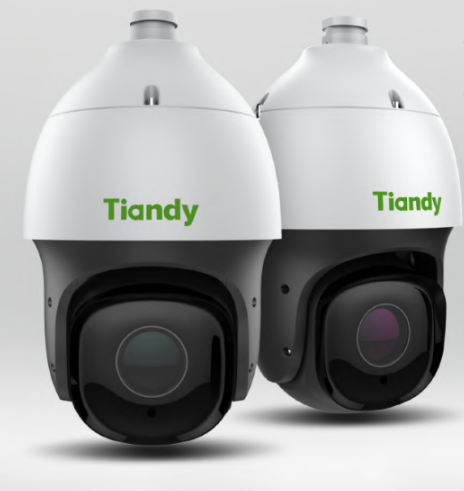

Tiandy TC-H326S Pro Series 2MP 33× Starlight IR PoE PTZ Camera
📄 Technical Description:
The Tiandy TC-H326S is a Pro Series 2MP PTZ (Pan-Tilt-Zoom) camera designed for long-range, high-precision surveillance in both indoor and outdoor environments. Equipped with a 1/2.8" CMOS sensor, it delivers full HD resolution of 1920×1080 at up to 60fps (NTSC), ensuring smooth and clear video capture. The camera supports a powerful 33× optical zoom (4.6–152mm), 16× digital zoom, and an impressive IR range of up to 150 meters with smart IR control, making it ideal for wide-area monitoring and long-distance target identification even in complete darkness. With features like auto-tracking, video analytics (including perimeter detection, tripwire, and object tracking), and smart image enhancements such as 140dB WDR, BLC, and 3D DNR, the TC-H326S ensures optimal clarity and reliability.

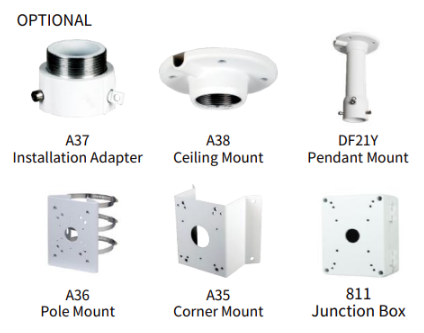

Its rugged design meets IP66 standards, making it suitable for harsh weather conditions. This camera also supports advanced compression formats (S+265/H.265/H.264/MJPEG), PoE+ power input, built-in SD card storage up to 128GB, and multiple integration protocols including ONVIF. With built-in alarms, audio I/O, and a wide range of compatible mounting accessories, the TC-H326S is an ideal solution for high-security applications such as airports, transportation hubs, public areas, and perimeter protection.
Tiandy TC-H326S ek Pro Series 2MP PTZ (Pan-Tilt-Zoom) camera hai jo indoor aur outdoor dono environments ke liye design kiya gaya hai. Yeh camera 1/2.8" CMOS sensor ke sath aata hai aur Full HD resolution (1920×1080) tak 60fps par smooth aur clear video capture karta hai.
Is camera mein powerful 33× optical zoom (4.6–152mm) aur 16× digital zoom available hai. Saath hi, isme Smart IR LEDs lagay hain jo 150 meters tak ki night vision provide karte hain — andheray mein bhi long-distance monitoring possible banate hain.
Advanced features mein shamil hain:
- Auto-tracking
- Video analytics: jese ke tripwire, perimeter detection, aur object tracking
- Image enhancements: 140dB WDR, BLC, aur 3D DNR for clear visuals har light condition mein
Yeh camera IP66-rated hai, is ka matlab yeh harsh weather mein bhi reliably kaam karta hai. Isme support hai:
- S+265/H.265/H.264/MJPEG compression
- PoE+ power input
- Built-in SD card storage (upto 128GB)
- ONVIF aur multiple integration protocols
Camera mein audio I/O, alarm features, aur multiple mounting options bhi hain — jo ise ideal banata hai high-security areas ke liye jese ke:
- Airports
- Transport hubs
- Public spaces
- Perimeter security zones
📊 Technical Specifications Table
Category | Specification |
Model | TC-H326S (33X/I/E/A) |
Image Sensor | 1/2.8" CMOS |
Resolution | 2MP (1920×1080) |
Min. Illumination | Color: 0.002Lux@F1.5, B/W: 0Lux with IR |
Optical Zoom | 33× (4.6mm – 152mm) |
Digital Zoom | 16× |
Zoom Speed | <5s |
IR Range | Up to 150m (Smart IR, 4 IR LEDs) |
WDR | 140dB |
Pan/Tilt Range | Pan: 360°, Tilt: -16° to 90° (Auto Flip) |
Pan Speed | Manual: 0.1–180°/s, Preset: 240°/s |
Tilt Speed | Manual: 0.1–120°/s, Preset: 180°/s |
Compression | S+265 / H.265 / H.264 / MJPEG |
Video Bitrate | 32 Kbps – 16 Mbps |
Audio Compression | G.711A/U, ADPCM, AAC |
Streams | Main, Sub, Third Stream (All selectable resolutions) |
Frame Rates | PAL: up to 50fps, NTSC: up to 60fps |
Auto Tracking | Yes |
Smart Features | Tripwire, Object Detection, Loitering, Heatmap, etc. |
Face Detection | Yes |
Alarm I/O | 1 input / 1 output |
Audio I/O | 1 input / 1 output |
On-board Storage | MicroSD slot (up to 128GB) |
Power Supply | AC24V ±15% / PoE+ |
Power Consumption | 21W (IR OFF), 26W (IR ON) |
Operating Temp. | -30°C to 65°C |
Humidity | 0–95% RH |
Ingress Protection | IP66 |
Auto Defog | Yes |
Preset Points | 500, Accuracy ±0.4° |
Cruise/Scan/Pattern | Cruise: 16, Scan: 8, Pattern: 8 |
Web Interface | Web5 |
Client Support | Easy7, EasyLive |
Protocols | TCP/IP, HTTP, HTTPS, FTP, RTSP, ONVIF (Profile S), etc. |
Network Interface | RJ45 (10M/100M Ethernet) |

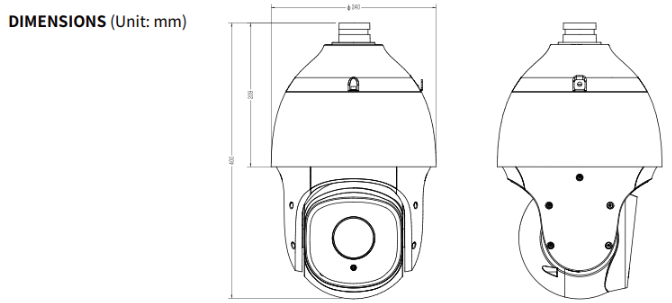

Dimensions | Φ222 × 372 mm |
Weight | 5 kg (11.02 lb) |
