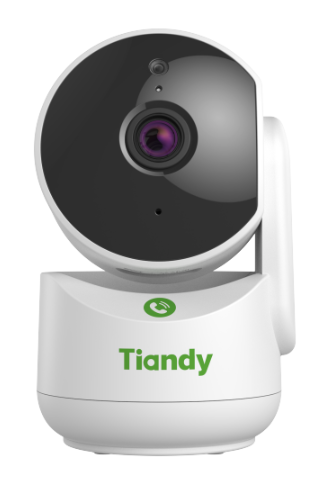

TC-H332A Spec:I2W/WIFI/Eu/4mm Wi-Fi 3MP Fixed Color Maker PT Camera (New Arrival)

TC-H332A Spec:I2W/WIFI/Eu/4mm Wi-Fi 3MP Fixed Color Maker PT Camera (New Arrival)

Sold by: MA Tech

Regular price PKR 12,238
Regular price Sale price PKR 12,238
Sale Sold out
Shipping calculated at checkout.

📄 Product Overview – TC-H332A (Wi-Fi Series)

The Tiandy TC-H332A is a compact and versatile 3MP Wi-Fi PT camera, offering high-resolution video (2304×1296) at 20fps with Smart IR night vision, pan-tilt control, and auto-tracking. With integrated mic and speaker, this model supports two-way audio, smart alarms, and local SD card recording up to 512GB. It’s designed for home or small business use, with easy installation over Wi-Fi (2.4GHz) and ONVIF integration.


Tiandy TC-H332A ek chhota aur bahu-mansuba 3MP Wi-Fi PT camera hai, jo high-resolution video (2304×1296) 20fps par provide karta hai. Ismein Smart IR night vision, pan-tilt control, aur auto-tracking features maujood hain.

Camera mein built-in microphone aur speaker hain, jo two-way audio ki sahulat dete hain. Iske smart alarms aur local SD card recording (512GB tak) bhi support karta hai.

Yeh model khaas tor par ghar aur chhoti business jagahon ke liye design kiya gaya hai, aur Wi-Fi (2.4GHz) ke zariye asani se install ho jata hai. Saath hi yeh ONVIF integration bhi support karta hai, jo compatibility ko barhata hai.


📊 Technical Specifications – TC-H332A

Category Specification
Model TC-H332A Spec: I2W/WIFI/Eu/4mm
Series Wi-Fi Series
Camera Type 3MP Fixed Color Maker Wi-Fi PT Camera
Housing Material Plastic
Image Sensor 1/3" CMOS
Max. Resolution 2304 × 1296 @20fps
Min. Illumination Color: 0.02Lux @F2.0 (AGC ON), B/W: 0Lux with IR
Shutter Speed 1s ~ 1/100000s
Day/Night Mode IR-cut filter with auto switch (ICR)
WDR DWDR
S/N Ratio >38dB
Field of View (4mm lens) H: 82.5°, V: 44°, D: 97.8°
DORI Distance D: 65.3m, O: 25.9m, R: 13.1m, I: 6.5m
Pan Range / Speed 0°–350°, 45°/s
Tilt Range / Speed -90° to 90°, 30°/s
Presets 255
Lens Mount / Aperture M12 / F2.0 (Fixed)
IR LEDs / Range 4 LEDs / Up to 15m
White LED / Range 1 LED / 8m
IR Wavelength 850nm
Video Compression S+265 / H.265 / H.264B / H.264M / H.264H
Video Bitrate 32kbps ~ 4Mbps
Audio Compression G.711A / G.711U
Audio Sampling Rate 8kHz / 16kHz
Main Stream PAL: 20fps (2304×1296, 1920×1080, 1280×720, 704×576)
NTSC: 20fps (2304×1296, 1920×1080, 1280×720, 704×480)
Sub Stream PAL/NTSC: 20fps (704×576/480 to 352×240/288)
Image Enhancements BLC, HLC, AGC, 3D DNR, Defog
White Balance Modes Auto, Semi-Auto, Manual, Presets
OSD Overlay 1 region, 1 line, up to 48 characters
Privacy Mask 4 areas
Audio Built-in Mic and Speaker
Smart Features Auto-Tracking, Smart Alarm
Alarm Linkage Sound, Warmlight, Recording, Capture
Exception Alarms Disk Full, R/W Error, IP Conflict
Storage microSD/SDHC/SDXC, up to 512GB
Wi-Fi IEEE 802.11 b/g/n (2.4GHz), 20/40MHz, WPA-PSK/WPA2-PSK
Transmission Distance Up to 30m (environment-dependent)
Protocols TCP/IP, UDP, ICMP, DHCP, DNS, NTP, IPv4, SSH, Unicast
System Compatibility ONVIF (Profile S/T), SDK, CGI, RTSP, Milestone
Remote Connections ≤2
Client Software Easy7 VMS, EasyLive Plus
Web Browsers Supported IE10+, Firefox 52+, Chrome 57+, Edge 89+, Safari 11+
Reset Button Yes
Operating Temp -10℃ ~ 45℃ (14℉ ~ 113℉)
Operating Humidity ≤95% RH
Storage Temp/Humidity -10℃ ~ 45℃ / 10%–95% RH (non-condensing)
Power Supply DC5V ±25%, Max. 7W
Surge / ESD Protection Surge: 500V, ESD: 6000V

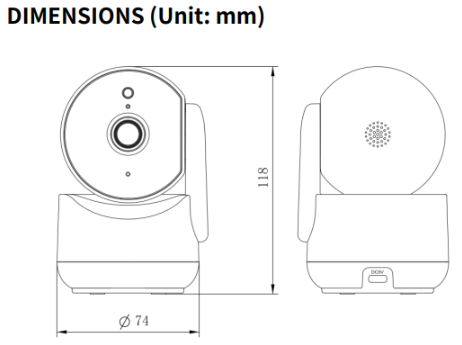

Dimensions 74 × 74 × 118mm
Package Dimensions 97 × 97 × 165mm
Weight 0.38kg
