TC-H332N Spec:I2W/WIFI/4mm/V4.0 Tiandy Superlite Wi-Fi PT/Desk 3MP Fixed 4mm

TC-H332N Spec:I2W/WIFI/4mm/V4.0 Tiandy Superlite Wi-Fi PT/Desk 3MP Fixed 4mm

Sold by: MA Tech

Regular price PKR 10,994
Regular price Sale price PKR 10,994
Sale Sold out
Shipping calculated at checkout.

📄 Product Description

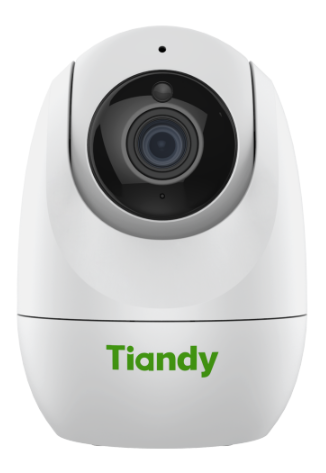

The Tiandy TC-H332N 9DA-4 is a compact and versatile 3MP Wi-Fi Pan-Tilt (PT) camera, designed for flexible home and small business surveillance. It features a 1/3" CMOS sensor and delivers crisp 2304×1296 video at 20fps, ensuring detailed coverage both day and night. With a 4mm fixed lens and motorized 350° pan and -25° to 90° tilt, the camera provides a wide monitoring range, making it ideal for tracking movement across rooms or open areas.

Thanks to Smart IR technology, the IR LEDs support night vision up to 15 meters, while an integrated white LED offers additional illumination up to 10 meters when triggered. Its low-light performance stands out with 0.05 Lux in color mode and 0 Lux in B/W. Audio support includes a built-in microphone and loudspeaker, enabling two-way communication for interactive surveillance or deterrence.

Advanced video compression using S+265/H.265/H.264 ensures efficient bandwidth usage and storage savings. The camera supports auto-tracking, smart motion alarms, and real-time event notifications. It is compatible with microSD cards up to 256GB, supports remote access through Easy7 VMS and EasyLive Plus, and can connect via Wi-Fi (IEEE802.11 b/g/n) or Ethernet.

Housed in a plastic body, the camera is suitable for indoor use and operates reliably between -10℃ to 45℃, with protection against surge and electrostatic discharge (ESD). It is powered by a DC 5V USB Type-C connector, consuming a maximum of 5W, which makes it easy to integrate into modern home setups with minimal wiring.


Tiandy TC-H332N 9DA-4 ek chhota aur bahu-mansuba 3MP Wi-Fi Pan-Tilt (PT) camera hai, jo ghar aur chhoti businesses ke liye flexible surveillance ka behtareen hal hai. Ismein 1/3" CMOS sensor laga hua hai jo 2304×1296 resolution par 20fps video capture karta hai, jis se din aur raat dono mein tafseeli coverage milti hai.

Iska 4mm fixed lens hai aur motorized pan 350° aur tilt -25° se 90° tak hota hai, jo wide monitoring area provide karta hai, aur movement ko asani se track karta hai, chaahe kamra ho ya khuli jagah.

Smart IR technology ki wajah se, IR LEDs raat mein 15 meter tak night vision dete hain, aur built-in white LED zarurat par 10 meter tak extra roshni deta hai. Low-light performance bhi kamal ki hai — color mode mein sirf 0.05 Lux aur black & white mode mein 0 Lux sensitivity.

Audio ke liye built-in microphone aur loudspeaker maujood hain, jisse two-way communication mumkin hoti hai, jo surveillance ya kisi ko rokne ke liye bohat mufeed hai.

Video compression S+265, H.265, aur H.264 standards ke zariye hoti hai, jo bandwidth aur storage bachata hai. Camera mein auto-tracking, smart motion alarms, aur real-time notifications bhi hain.

Yeh microSD cards ko 256GB tak support karta hai, remote access ke liye Easy7 VMS aur EasyLive Plus ke saath kaam karta hai, aur Wi-Fi (IEEE802.11 b/g/n) ya Ethernet connection se connect hota hai.

Plastic casing mein bana yeh camera indoor use ke liye best hai aur -10℃ se 45℃ tak ke temperature mein reliable kaam karta hai. Ismein surge aur electrostatic discharge (ESD) protection bhi hai.

Power supply ke liye yeh DC 5V USB Type-C connector use karta hai aur maximum 5W power consume karta hai, jis se modern gharon mein wiring bohat asaan ho jati hai.


📊 Technical Data Table

Category Specification
Model TC-H332N 9DA-4
Camera Type 3MP Fixed Color Maker Wi-Fi PT Camera
Image Sensor 1/3" CMOS
Max. Resolution 2304×1296 @ 20fps
Min. Illumination Color: 0.05Lux (F2.0, AGC ON); B/W: 0Lux (IR ON)
Lens 4mm Fixed, F2.0, M12 mount
Field of View H: 51°, V: 26.3°, D: 60.3°
Pan/Tilt Range Pan: 0–350° @ 45°/s; Tilt: -25–90° @ 30°/s
Presets 255
DORI Distance D: 59.3m, O: 23.5m, R: 11.9m, I: 5.9m
IR Range Up to 15m (850nm wavelength)
White Light Range Up to 10m
IR LEDs / White LEDs 1-Apr
WDR Digital WDR (DWDR)
Audio Built-in Microphone and Loudspeaker (2-Way Audio)
Video Compression S+265 / H.265 / H.264B / H.264M / H.264H
Audio Compression G.711A / G.711U
Storage microSD/microSDHC/microSDXC, up to 256GB
Video Analytics Smart Alarm, Auto-Tracking
Alarms Motion, Sound, Disk Full, R/W Error, IP & MAC Conflict
OSD / Privacy Mask 1 Region OSD / 4 Privacy Masks
Image Enhancements BLC, HLC, AGC, 3D DNR, Defog
White Balance Auto, Manual, and Lighting Modes
Network Protocols RTSP, HTTP, TCP, UDP, ICMP, DHCP, DNS, NTP, IPv4, FTP, SSH, Unicast
ONVIF Support Profiles S and T
Remote Connections Max. 2
Wi-Fi Standard IEEE 802.11 b/g/n, 2.4GHz
Wi-Fi Range Up to 30m (depends on environment)
Security WPA-PSK/WPA2-PSK
Client Software Easy7 VMS (PC), EasyLive Plus (Mobile)
Web Browser Support IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+
Power Supply DC 5V ±5%, USB Type-C, Max. 5W
Operating Temp. -10℃ ~ 45℃ (14℉ ~ 113℉)
Humidity ≤95% RH (Non-condensing)
Protection Surge: 500V, ESD: 6000V

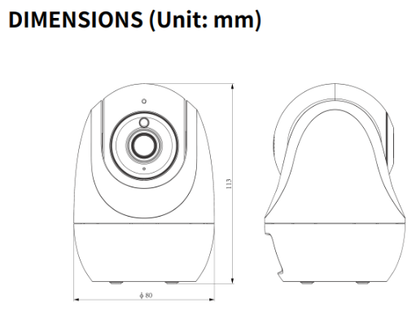

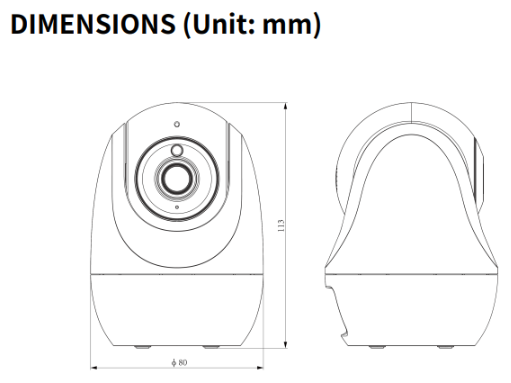

Dimensions (mm) 80(L) × 80(W) × 113(H)
Weight 0.36 kg
Languages Supported Simplified Chinese, English, Vietnamese
