"TC-H334S Spec:I5W/C/WIFI/4mm/V4.1 Tiandy Spark Wi-Fi PT 3MP Fixed 4mm IP67, Adapter"
"TC-H334S Spec:I5W/C/WIFI/4mm/V4.1 Tiandy Spark Wi-Fi PT 3MP Fixed 4mm IP67, Adapter"
Sold by: MA Tech
📄 Product Description

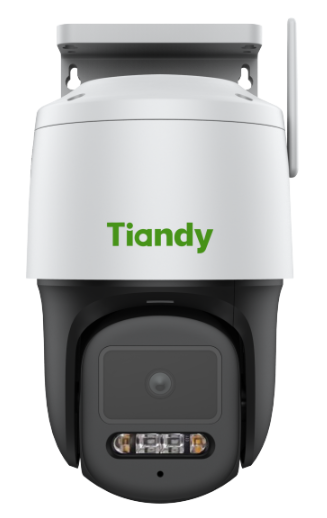

The Tiandy TC-H334S is a rugged and high-performance 3MP Wi-Fi Pan-Tilt (PT) security camera designed for demanding outdoor environments. Built with a durable metal+plastic housing and rated IP66, it delivers excellent protection against dust, rain, and harsh temperatures ranging from -30°C to 60°C. The camera boasts a 1/2.8" CMOS sensor capable of streaming 2304×1296 resolution at up to 25fps, providing crisp, high-definition video suitable for critical surveillance tasks.
Its 4mm fixed lens with a wide 87.7° horizontal field of view, coupled with infrared night vision up to 50 meters and white LED support for 15 meters, ensures round-the-clock clarity even in pitch-dark conditions. Enhanced with Smart IR, DWDR, and 3D DNR, the camera optimizes image quality in varying lighting conditions.
The TC-H334S supports two-way audio via its built-in microphone and speaker, along with intelligent auto-tracking, smart event alarms, and linkage features such as triggering warmlight or recordings upon motion. It’s compatible with ONVIF profiles S/T/G, Easy7 VMS, and EasyLive Plus for flexible integration.
With support for microSD cards up to 512GB, S+265 compression, and robust network protocol support, this camera is ideal for perimeter surveillance, parking lots, and industrial installations where performance and reliability are critical.
Tiandy TC-H334S aik mazboot aur high-performance 3MP Wi-Fi Pan-Tilt (PT) security camera hai jo mushkil outdoor mahalat ke liye design kiya gaya hai. Iska metal aur plastic ka housing durable hai aur IP66 rating ke sath aata hai, jis se yeh dhool, barish, aur sakht temperature (-30°C se 60°C tak) se puri tarah mehfooz rehta hai.
Is camera mein 1/2.8" CMOS sensor laga hua hai jo 2304×1296 resolution par 25fps tak video stream karta hai, jis se bohat clear aur high-definition footage milti hai jo important surveillance ke liye bilkul munasib hai.
Iska 4mm fixed lens wide 87.7° horizontal field of view deta hai, aur night vision ke liye infrared LEDs 50 meter tak roshni faraham karti hain, jabke white LED support 15 meter tak hota hai, jis se andheray mein bhi wazeh tasveerain milti hain. Smart IR, DWDR, aur 3D DNR jaise advanced technologies se camera mukhtalif roshni ke halaat mein behtareen image quality provide karta hai.
TC-H334S built-in microphone aur speaker ke zariye two-way audio support karta hai, aur ismein auto-tracking, smart event alarms, aur linkage features hain jo motion detect hone par warmlight ya recording trigger karte hain. Yeh ONVIF profiles S/T/G, Easy7 VMS, aur EasyLive Plus ke sath bhi compatible hai, jo flexible integration ki sahulat deta hai.
MicroSD cards 512GB tak support karta hai, S+265 compression use karta hai, aur robust network protocols ko bhi support deta hai. Yeh camera perimeter surveillance, parking lots, aur industrial sites ke liye bohat acha hai jahan performance aur reliability zaroori hoti hai.
📊 Technical Specifications Table
Category | Specification |
Model | TC-H334S Spec:I5W/C/WIFI/Eu/4mm/V4.1 |
Camera Type | 3MP Fixed Color Maker Wi-Fi PT Camera |
Housing Material | Metal + Plastic |
Image Sensor | 1/2.8" CMOS |
Max. Resolution | 2304×1296 @ 25fps (PAL), 24fps (NTSC) |
Min. Illumination | Color: 0.02Lux (F1.6, AGC ON); B/W: 0Lux (IR ON) |
Lens | 4mm Fixed, F1.6, M12 Mount |
Field of View (FoV) | H: 87.7°, V: 46.7°, D: 98.6° |
Pan/Tilt Range | Pan: 0–340°, Tilt: 15°–110° |
DORI Distances | Detect: 65.3m; Observe: 25.9m; Recognize: 13.1m; Identify: 6.5m |
IR LEDs / Distance | 2 LEDs / Up to 50m |
White LEDs / Distance | 2 LEDs / Up to 15m |
Shutter Speed | 1s ~ 1/100000s |
WDR | Digital WDR (DWDR) |
S/N Ratio | >38dB |
Audio | Built-in Microphone & Speaker |
Video Compression | S+265 / H.265 / H.264B / H.264M / H.264H |
Audio Compression | G.711A / G.711U |
Audio Sampling Rate | 8kHz / 16kHz |
Image Enhancements | BLC, HLC, AGC, 3D DNR, Defog |
White Balance Modes | Auto, Semi-Auto, Manual, Multi-light Presets |
OSD Support | 1 Region, 1 Line; Max. 48 Characters or 16 Chinese Characters |
Privacy Mask | Up to 4 Black Areas |
Smart Features | Auto-Tracking, Smart Alarm, Linkage Triggers |
Alarm Events | Voltage Alarm, Disk Full, Disk R/W Error, IP Conflict |
Alarm Output | Yes |
Network Protocols | HTTP, TCP/IP, UDP, ICMP, DHCP, DNS, NTP, TLS v1.2, IPv4, Telnet, FTP, Unicast |
ONVIF Support | Profiles S / T / G |
Client Software | Easy7 VMS (PC), EasyLive Plus (Mobile) |
Browser Support | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
Remote Connections | Max. 2 |
Wi-Fi Standard | IEEE 802.11 b/g/n |
Wi-Fi Frequency | 2.4GHz (2.4 – 2.4835 GHz) |
Wi-Fi Security | WPA-PSK / WPA2-PSK |
Transmission Distance | Up to 30m (depending on environment) |
Onboard Storage | microSD/SDHC/SDXC, up to 512GB |
Communication Ports | 1× RJ-45 (10/100 Base-T), Reset Button |
Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
Operating Humidity | ≤95% RH (Non-condensing) |
Storage Temp / Humidity | -30°C ~ 60°C / 10%~95% RH |
Power Supply | DC12V ±25%, Max. 12W |
Protection Ratings | Surge: 4000V; ESD: 6000V; IP66 |
Dimensions (mm) | 264(L) × 165(W) × 140(H) |
Package Dimensions | 185(L) × 155(W) × 285(H) |
Weight | Not specified (estimated >0.5kg with packaging) |
Languages | English, Turkish |
