TC-H342A Spec:I2W/WIFI/Eu/4mm Wi-Fi 4MP Fixed Color Maker PT Camera (New Arrival)

TC-H342A Spec:I2W/WIFI/Eu/4mm Wi-Fi 4MP Fixed Color Maker PT Camera (New Arrival)

Sold by: MA Tech

Regular price PKR 16,632
Regular price Sale price PKR 16,632
Sale Sold out
Shipping calculated at checkout.

📄 Product Description

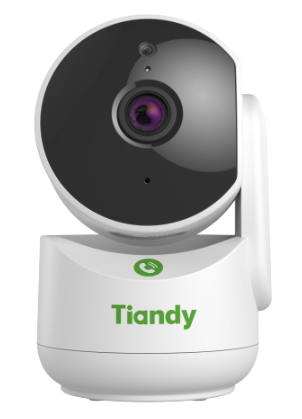

The Tiandy TC-H342A is a powerful and compact 4MP Wi-Fi Pan-Tilt (PT) security camera, tailored for smart indoor and small-scale surveillance applications. Featuring a 1/2.8" CMOS sensor, it delivers high-resolution 2560×1440 video at 20fps, ensuring clear image detail and sharp color reproduction. This camera supports 350° pan and ±90° tilt functions, allowing users to monitor wide areas with a single device and easily track moving objects via auto-tracking.

Equipped with Smart IR and white LED technology, the camera provides up to 15 meters of night vision and 8 meters of white light illumination, enhancing visibility in low-light environments. Its 4mm fixed lens offers a wide field of view (79° horizontal), making it ideal for covering entryways, living areas, offices, or retail spaces.

The device supports two-way audio with a built-in microphone and speaker, allowing real-time communication or alerts through mobile apps. Its advanced S+265 video compression ensures minimal storage use without compromising image quality. The camera supports microSD storage up to 512GB, reducing dependency on cloud or NVR storage solutions.

Designed with Wi-Fi connectivity (2.4GHz) and a compact form factor, this plastic-housed camera is easy to install and integrates seamlessly with Easy7 VMS and EasyLive Plus mobile app. It operates efficiently between -10°C to 45°C, is ESD and surge protected, and includes intelligent features like motion detection, smart alarm linkage, and ONVIF compatibility.


Tiandy TC-H342A ek taqatwar aur chhota 4MP Wi-Fi Pan-Tilt (PT) security camera hai, jo indoor aur chhoti jagahon ke liye smart surveillance ke liye design kiya gaya hai. Ismein 1/2.8" CMOS sensor laga hua hai jo 2560×1440 resolution par 20fps video capture karta hai, jis se tasveerain bohat clear aur rang tez nazar aate hain.

Yeh camera 350° pan aur ±90° tilt ki sahulat deta hai, jis se aap aik hi camera se wide area ko cover kar sakte hain aur moving objects ko auto-tracking ke zariye asaani se follow kar sakte hain.

Smart IR aur white LED technology ki madad se, yeh camera raat mein 15 meter tak night vision aur 8 meter tak white light illumination provide karta hai, jis se kam roshni mein bhi acha nazara milta hai. Iska 4mm fixed lens 79° horizontal field of view deta hai, jo entryways, living rooms, offices, ya retail spaces ke liye ideal hai.

Is device mein built-in microphone aur speaker hain, jo two-way audio ki sahulat dete hain, jisse aap mobile apps ke zariye real-time baat cheet ya alerts bhej sakte hain. Advanced S+265 video compression use karta hai, jo storage bachata hai bina image quality ko compromise kiye.

Yeh camera microSD card par 512GB tak storage support karta hai, jis se aap cloud ya NVR storage par kam depend rahte hain.

Wi-Fi (2.4GHz) connectivity aur chhoti plastic housing ke saath, yeh camera asaani se install ho jata hai aur Easy7 VMS aur EasyLive Plus mobile apps ke saath seamlessly integrate hota hai. Yeh -10°C se 45°C ke darmiyan behtareen taur par kaam karta hai, ESD aur surge protection ke sath aata hai, aur smart features jaise motion detection, smart alarm linkage, aur ONVIF compatibility bhi provide karta hai.


📊 Technical Specifications Table

Category Specification
Model TC-H342A Spec:I2W/WIFI/Eu/4mm
Camera Type 4MP Fixed Color Maker Wi-Fi PT Camera
Image Sensor 1/2.8" CMOS
Max. Resolution 2560×1440 @ 20fps
Min. Illumination Color: 0.02Lux (F2.0, AGC ON); B/W: 0Lux (IR ON)
Lens 4mm Fixed, F2.0, M12 mount
Field of View (FoV) H: 78.9°, V: 41°, D: 92.9°
Pan/Tilt Range Pan: 0–350°, Tilt: -90° to +90°
Pan/Tilt Speed Pan: 45°/s, Tilt: 30°/s
Presets 255
DORI Distances Detect: 80m; Observe: 31.75m; Recognize: 16m; Identify: 8m
IR LEDs / Range 4 LEDs / Up to 15m
White LEDs / Range 1 LED / Up to 8m
WDR Digital WDR (DWDR)
Audio Built-in Mic & Speaker (2-Way Audio)
Video Compression S+265 / H.265 / H.264B / H.264M / H.264H
Audio Compression G.711A / G.711U
Audio Sampling Rate 8kHz / 16kHz
Storage microSD/SDHC/SDXC, up to 512GB
Image Enhancements BLC, HLC, AGC, 3D DNR, Defog
White Balance Modes Auto, Semi-Auto, Manual, Multiple Lighting Presets
OSD 1 Region, 1 Line, Max. 48 Characters or 16 Chinese Characters
Privacy Mask Up to 4 black areas
Video Analytics Smart Alarm, Auto-Tracking
Alarm Functions Disk Full, Disk R/W Error, IP Conflict
Linkage Methods Trigger Sound, Trigger Warmlight, Capture, Recording
Network Protocols TCP/IP, UDP, ICMP, DHCP, DNS, NTP, IPv4, SSH, RTSP, FTP, Unicast
ONVIF Support Profile S / T
Client Software Easy7 VMS (PC), EasyLive Plus (Mobile)
Browser Support IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+
Remote Connections Max. 2
Wi-Fi Standard IEEE 802.11 b/g/n
Wi-Fi Frequency 2.4GHz (2.4 – 2.4835 GHz)
Wi-Fi Security WPA-PSK / WPA2-PSK
Transmission Distance Up to 30m (depending on environment)
Power Supply DC5V ±25%, Max. 7W
Operating Temp. -10°C ~ 45°C (14°F ~ 113°F)
Humidity ≤95% RH (Non-condensing)
Protection Surge: 500V; ESD: 6000V

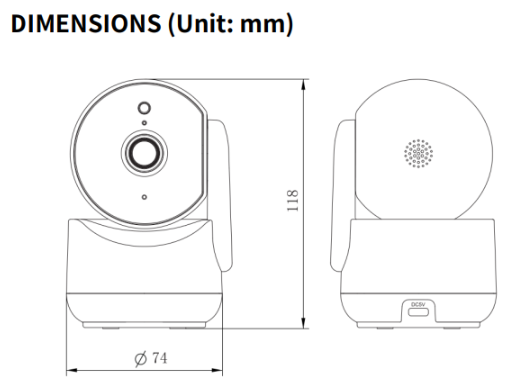

Dimensions (mm) 74(L) × 74(W) × 118(H)
Package Dimensions 97(L) × 97(W) × 165(H)
Weight 0.38 kg
