TC-H356S Spec: 30X/I/E++/A/V3.0 Tiandy Pro Turbo AI + PTZ 5MP 30X POE++

TC-H356S Spec: 30X/I/E++/A/V3.0 Tiandy Pro Turbo AI + PTZ 5MP 30X POE++

Sold by: MA Tech

Regular price PKR 197,741
Regular price Sale price PKR 197,741
Sale Sold out
Shipping calculated at checkout.

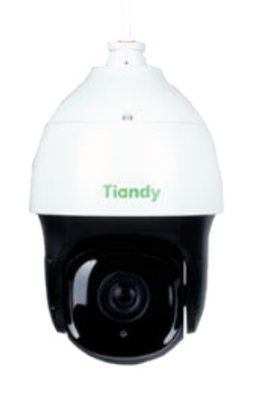

Tiandy TC-H356S Pro Series 5MP 30× Starlight IR PTZ Camera


📄 Technical Description:

The Tiandy TC-H356S is a high-performance 5MP Starlight PTZ camera designed for long-range surveillance in challenging environments. Equipped with a powerful 30× optical zoom, 400m smart IR range, and ultra-low light sensitivity (0.002Lux), it provides excellent image quality both day and night. Featuring S+265 video compression, 120dB mechanical WDR, and comprehensive video content analytics (VCA) like tripwire, object detection, and perimeter protection, this camera ensures smart and efficient monitoring.

Its rugged IP66-rated housing, wide operating temperature range (-40°C~70°C), and 6000V TVS surge protection make it suitable for demanding outdoor applications. With 3 video streams, integrated audio and alarm I/Os, microSD storage (up to 128GB), and ONVIF compliance, the TC-H356S is ideal for critical security installations such as city surveillance, industrial perimeters, and transportation hubs.


Tiandy TC-H356S ek high-performance 5MP Starlight PTZ camera hai jo ke long-range surveillance ke liye specially design kiya gaya hai, khas tor par un environments ke liye jo tough aur challenging hotay hain.

Is camera mein powerful 30× optical zoom aur 400 meter tak ka smart IR range hai. Iski ultra-low light sensitivity (0.002Lux) ke zariye yeh camera din raat, dono waqt behtareen image quality deta hai — chahe roshni kam ho ya bilkul na ho.

Advanced features mein shamil hain:

  • S+265 video compression jo bandwidth aur storage bachata hai
  • 120dB mechanical WDR for balanced brightness
  • Video Content Analytics (VCA): tripwire, object detection, aur perimeter protection jese smart features for intelligent monitoring

Yeh camera rugged design mein aata hai:

  • IP66-rated housing (dust & paani se bachao)
  • -40°C se +70°C tak ka temperature withstand karta hai
  • 6000V TVS surge protection ke sath outdoor safety ko ensure karta hai

Additional features:

  • 3 video streams for flexible use
  • Integrated audio I/O aur alarm I/O
  • microSD card support (upto 128GB)
  • ONVIF compliance for third-party compatibility

Yeh camera ideal hai critical security installations ke liye jaise:

  • City surveillance
  • Industrial perimeters
  • Transportation hubs

📊 Technical Specifications Table

Category Specification
Model TC-H356S (30X/I)
Image Sensor 1/2.8" CMOS
Max. Resolution 5MP (2592×1944)
Minimum Illumination Color: 0.002 Lux @F1.6, AGC ON; B/W: 0.001 Lux; 0 Lux with IR
WDR 120dB Mechanical WDR
Optical Zoom 30× (Focal Length: 4.7–141mm)
Digital Zoom 16×
Zoom Speed Approx. 5s (Wide to Tele)
Angle of View 69.5° (Wide) ~ 2.7° (Tele)
IR Range Up to 400m (10 IR LEDs, Adjustable by Zoom)
Image Enhancement 3D DNR, BLC, HLC, Smart Defog, Dual ICR, AGC, AWB
Pan Range 360° Endless, Manual: 0.1°–240°/s, Preset: 240°/s
Tilt Range -16° to 90°, Auto Flip, Manual: 0.1°–240°/s, Preset: 240°/s
Presets 500 (±0.2° accuracy), 8 Scan, 8 Cruise (32 presets each), 8 Pattern
Guard Action Preset, Cruise, Pattern, Scan
Video Compression S+265, H.265 (HP/MP/BP), H.264, M-JPEG
Max Frame Rate 2592×1944@18fps, 1920×1080@30fps, 1280×720@30fps (Main Stream)
ROI 7 Dynamic Areas (Main/Sub stream)
Audio I/O 1 input (mic in), 1 output (line level)
Alarm I/O 1 input / 1 output
Smart Functions Tripwire, Perimeter, Object Abandon/Lost, Loitering, Parking, Audio/Video Abnormal
Auto Tracking Not Supported
On-board Storage MicroSD card slot (up to 128GB)
Video Streams Main, Sub, Third
Protocols TCP, UDP, HTTP, FTP, NTP, RTSP, DHCP, SNMP, SMTP, ONVIF (Profile S), P2P
Remote Users Up to 5 simultaneous users
Power Supply AC24V 3A
Power Consumption Max. 38.6W
Protection IP66, TVS 6000V, Lightning/Surge 4000V
Operating Temp -40°C to 70°C, 0–95% RH
Languages EN, CN, RU, ES, FR, PL, KR, IT, TR, TH, etc.

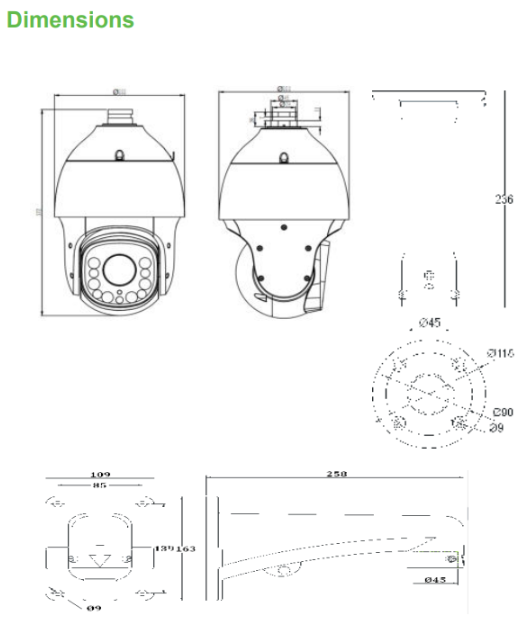

Dimensions 372mm × 222mm × 222mm
Weight 4.8kg (camera only), 7.5kg (with packaging)
