"TC-P3S010 Spec:2/E/HP 8 Port PoE Switch (New Arrival)"
"TC-P3S010 Spec:2/E/HP 8 Port PoE Switch (New Arrival)"
Sold by: MA Tech

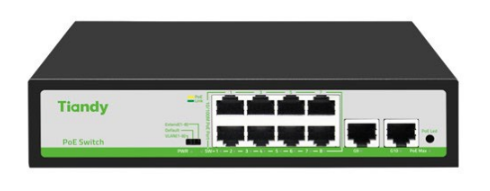

Tiandy TC-P3S010
8-Port PoE Switch with 2 Uplink Ports
Key Features
- 8 × 10/100 Mbps PoE ports
- 2 × 10/100/1000 Mbps RJ45 uplink ports
- Complies with IEEE 802.3, 802.3u, 802.3ab, and 802.3x standards
- Supports adaptive Ethernet speeds: 10/100/1000 Mbps
- PoE priority (QoS): Port 1 has highest priority, descending to port 8
- Full-duplex flow control (IEEE 802.3x), half-duplex back pressure
- Auto MDI/MDIX support on all ports
- Store-and-forward switching method
- Three-mode intelligent DIP switch (VLAN, Default, Extend)
- Surge protection: 4KV common mode lightning, ESD air 8KV/contact 6KV (Level C)
- 8 × 10/100 Mbps PoE ports
- 2 × 10/100/1000 Mbps RJ45 uplink ports
- IEEE 802.3, 802.3u, 802.3ab, aur 802.3x standards ke mutabiq
- Adaptive Ethernet speeds support karta hai: 10/100/1000 Mbps
- PoE priority (QoS): Port 1 sab se zyada priority rakhta hai, phir port 2 se le kar port 8 tak kam hoti hai
- Full-duplex flow control (IEEE 802.3x), half-duplex back pressure support
- Sab ports par Auto MDI/MDIX support
- Store-and-forward switching method istemal karta hai
- Teen mode intelligent DIP switch (VLAN, Default, Extend)
- Surge protection: 4KV common mode lightning, ESD air 8KV/contact 6KV (Level C)
Technical Specifications
Category | Specification |
Power Input | AC 100–240V |
PoE Ports | 8 × 10/100 Mbps PoE ports |
Uplink Ports | 2 × 10/100/1000 Mbps RJ45 |
Switching Bandwidth | 5.6 Gbps |
Throughput | 4.166 Mpps |
Packet Buffer | 448 Kbit |
MAC Address Table | 2K entries |
Transfer Mode | Store and Forward |
PoE Standards | IEEE 802.3af (15.4W), IEEE 802.3at (30W) |
PoE Output Voltage | DC 52V |
PoE Power Core | Pins 1/2 (+), 3/6 (-) |
Network Protocols | IEEE 802.3, 802.3u, 802.3ab, 802.3x |
Network Medium | Cat3/4/5 UTP/STP (10Base-T ≤100m) |
Cat5 or better UTP/STP (100Base-TX, 1000Base-TX ≤100m) | |
LED Indicators | PWR, DIP mode, Ports 1-10 Link/Data (Green), POE Max (Power) |
DIP Switch Modes | VLAN: PoE ports isolated, only communicate uplinks (PoE Watchdog ON) |
Default: all ports communicate (PoE Watchdog OFF) | |
Extend: ports 1-8 forced 10 Mbps, distance up to 220m (PoE Watchdog ON) | |
Operating Temp. | -10°C to +50°C |
Storage Temp. | -40°C to +70°C |
Operating Humidity | 10% to 90% (non-condensing) |
Storage Humidity | 5% to 95% (non-condensing) |

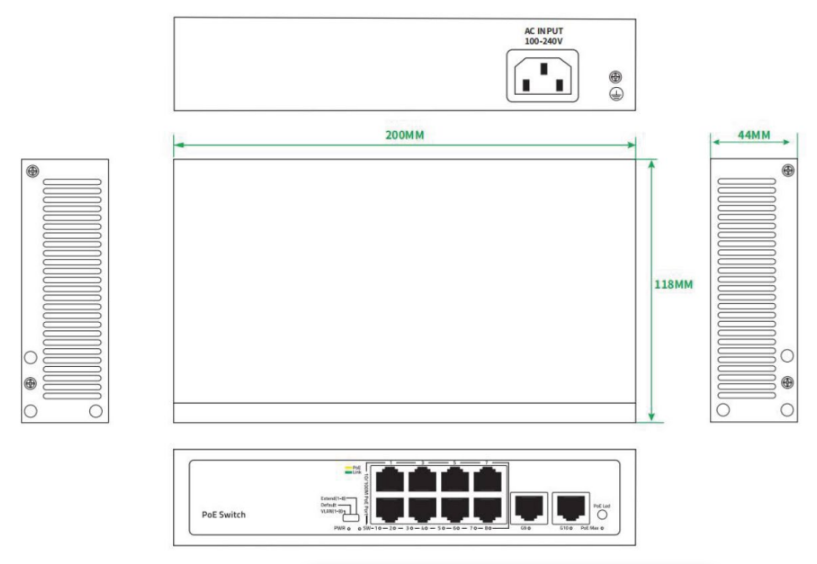

Dimensions | 200 × 118 × 44 mm |
Package Dimensions | 245 × 190 × 60 mm |
Net Weight | 0.69 kg |
Gross Weight | 0.98 kg |
Carton Size | 520 × 320 × 400 mm |
Units per Carton | 20 |
Carton Weight | 20.6 kg |
Power Supply Output | 52V / 1.92A |
Max Power Consumption | Mainboard: 10W, PoE: 90W |
