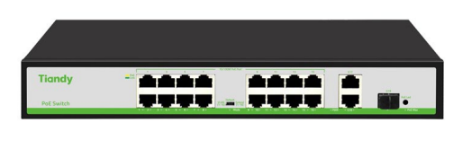

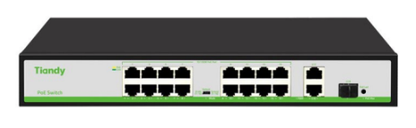

Tiandy TC-P3S019


16-Port PoE Switch with 2 Gigabit Ethernet Uplinks + 1 Gigabit SFP Port


Key Features

  • 16 × 10/100 Mbps PoE ports
  • 2 × 1000 Mbps (1 Gbps) Ethernet uplink ports
  • 1 × 1000 Mbps (1 Gbps) SFP port for fiber connectivity
  • Complies with IEEE 802.3, 802.3u, 802.3ab, and 802.3z standards
  • Ethernet ports auto-adaptive for 10/100 Mbps rates
  • PoE ports in Extend mode force 10 Mbps and enable AI mode automatically
  • PoE priority support, ports 1-16 prioritized by default
  • Full duplex flow control (IEEE 802.3x), half duplex back pressure control
  • Zero configuration, auto power supply adaptation
  • Intelligent 3-gear DIP switch supports VLAN, Default, and Extend modes
  • Lightning surge protection: 4KV common mode, 2KV differential mode
  • Electrostatic discharge protection: Air 8KV, Contact 6KV (Level B)

  • 16 × 10/100 Mbps PoE ports
  • 2 × 1000 Mbps (1 Gbps) Ethernet uplink ports
  • 1 × 1000 Mbps (1 Gbps) SFP port fiber connectivity ke liye
  • IEEE 802.3, 802.3u, 802.3ab, aur 802.3z standards ke mutabiq
  • Ethernet ports auto-adaptive hain 10/100 Mbps speeds ke liye
  • PoE ports jab Extend mode mein hon tou wo automatically 10 Mbps par chalenge aur AI mode enable karenge
  • PoE priority support karta hai, ports 1 se 16 tak default priority ke saath
  • Full duplex flow control (IEEE 802.3x) aur half duplex back pressure control support
  • Zero configuration, auto power supply adaptation
  • Intelligent 3-gear DIP switch jo VLAN, Default, aur Extend modes support karta hai
  • Lightning surge protection: 4KV common mode, 2KV differential mode
  • Electrostatic discharge protection: Air 8KV, Contact 6KV (Level B)

Technical Specifications

Category Specification
Power Input AC 100–240V, 50-60 Hz
PoE Ports 16 × 10/100 Mbps PoE
Uplink Ports 2 × 1000 Mbps RJ45 Ethernet
SFP Port 1 × 1000 Mbps SFP fiber
Switching Bandwidth 9.2 Gbps
Throughput 6.84 Mpps
Packet Buffer 3 Mbit
MAC Address Table 2K entries
Transfer Mode Store and Forward
PoE Standards IEEE 802.3af (15.4W), IEEE 802.3at (30W)
PoE Output Voltage DC 52V
PoE Power Core Pins 1/2 (+), 3/6 (-)
Network Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3z
Network Medium Cat3/4/5 UTP (10BASE-T ≤100m)
Cat5 or better UTP/STP (100BASE-TX, 1000BASE-TX ≤100m)
Optical Medium Multimode Fiber (50/125, 62.5/125, 100/140 µm)
Singlemode Fiber (8/125, 8.7/125, 9/125, 10/125 µm)
LED Indicators PWR, Mode (DIP), Ports 1-19 Link/Data (Green), POE Max Power (Yellow/Green)
DIP Switch Modes VLAN, Default, Extend
Operating Temperature -10°C to +50°C
Storage Temperature -40°C to +70°C
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)

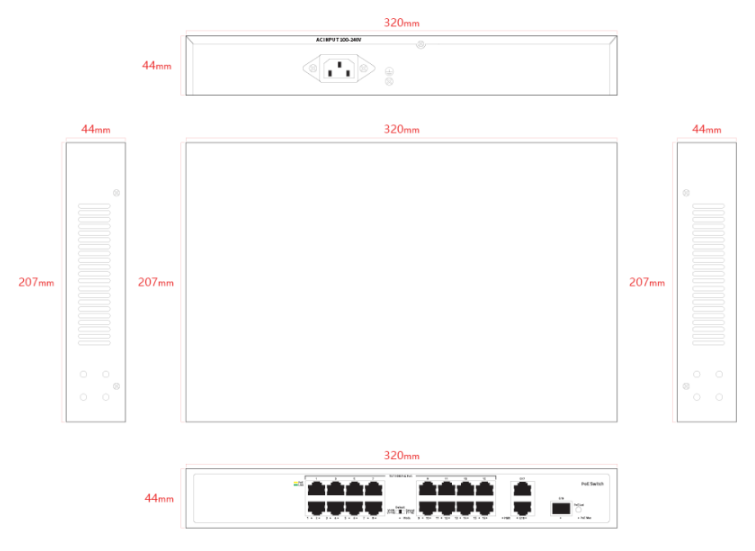

Dimensions 320 × 207 × 45 mm
Package Dimensions 370 × 290 × 85 mm
Net Weight 1.61 kg
Gross Weight 2.14 kg
Carton Size 445 × 310 × 390 mm
Units per Carton 5 sets
Carton Weight 11.7 kg
Power Supply Output 52V / 3.84A
Max Power Consumption Non-PoE Board: 6W, PoE: 180W
