"TC-P3S06 Spec:1/E/HP 4 Port PoE Switch (New Arrival)"
"TC-P3S06 Spec:1/E/HP 4 Port PoE Switch (New Arrival)"
Sold by: MA Tech

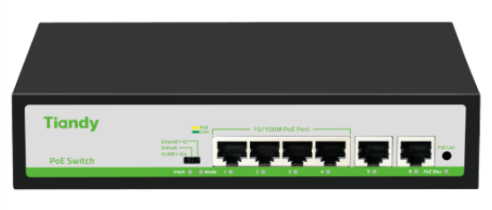

Tiandy TC-P3S06 – 6-Port 10/100Mbps PoE Switch
📘 Product Description:
The Tiandy TC-P3S06 is a compact and reliable unmanaged PoE switch designed for small to medium-sized surveillance networks. Featuring 4 PoE ports (IEEE 802.3af/at) and 2 uplink ports, this switch delivers both power and data over a single cable to compatible IP cameras and devices.
Built for performance and efficiency, it offers 1.2Gbps switching bandwidth, PoE watchdog, and extend/VLAN modes to optimize deployment flexibility and fault tolerance. The 52V PoE output supports up to 60W total power, making it ideal for powering multiple IP cameras, VoIP phones, or wireless APs in a surveillance setting.
The DIP switch allows for easy mode switching between Default, VLAN isolation, and Extend (long-distance up to 220m at 10Mbps), with PoE watchdog enabled in VLAN and Extend modes. With a durable metal housing and operating temperature range of -10°C to 50°C, this switch is designed for robust performance in professional environments.
Tiandy TC-P3S06 aik chhota aur reliable unmanaged PoE switch hai jo chhoti se medium size surveillance networks ke liye banaaya gaya hai. Ismein 4 PoE ports (IEEE 802.3af/at) aur 2 uplink ports mojood hain, jo compatible IP cameras aur devices ko power aur data aik hi cable ke zariye provide karta hai.
Yeh switch performance aur efficiency ke liye design kiya gaya hai, jisme 1.2Gbps switching bandwidth, PoE watchdog, aur extend/VLAN modes shamil hain, jo deployment ko flexible aur fault tolerant banate hain. Iska 52V PoE output total 60W tak power support karta hai, jo kai IP cameras, VoIP phones, ya wireless APs ko ek surveillance setup mein power dene ke liye ideal hai.
DIP switch ki madad se asaani se mode switch kiya ja sakta hai — Default, VLAN isolation, aur Extend (jo 10Mbps speed par 220 meter tak long-distance support karta hai). VLAN aur Extend modes mein PoE watchdog bhi enabled hota hai. Is switch ka metal housing mazbooti ke liye hai aur yeh -10°C se 50°C ke operating temperature range mein behtareen performance deta hai, jo professional environments ke liye munasib hai.
📊 Technical Specification: TC-P3S06 PoE Switch
| Category | Specification |
| Model | TC-P3S06 |
| Brand | Tiandy |
| Switch Type | Unmanaged |
| PoE Ports | 4 × 10/100Mbps PoE Ports |
| Uplink Ports | 2 × 10/100Mbps RJ45 Ports |
| Switching Capacity | 1.2 Gbps |
| Throughput | 0.8928 Mpps |
| Packet Buffer | 448 KB |
| MAC Address Table | 1K |
| Transfer Mode | Store-and-Forward |
| PoE Standard | IEEE 802.3af (15.4W), IEEE 802.3at (30W) |
| PoE Budget | Max 60W Total (55W PoE + 10W System) |
| PoE Voltage Output | DC 52V |
| PoE Power Core | Pins 1/2 (+), 3/6 (-) |
| Network Protocols | IEEE802.3 (10Base-T), IEEE802.3u (100Base-TX), IEEE802.3x (Flow Control) |
| Network Medium | 10Base-T: Cat3/4/5 UTP/STP, 100Base-TX: Cat5 or above (≤100m) |
| LED Indicators | PWR, Mode (DIP), Ports 1–6 Link/Data (Green), POE Max (Power status) |
| Power Supply | AC 100–240V Input, Output 52V / 1.25A |
| DIP Switch Modes | • Default – All ports communicate normally (PoE watchdog off) |
| • VLAN – Ports 1–4 isolated, only communicate with uplink ports 5 & 6 (PoE watchdog on) | |
| • Extend – Ports 1–4 forced to 10Mbps, transmission distance up to 220m (PoE watchdog on) | |
| PoE Watchdog | Supported (AI Mode – auto reset unresponsive PoE device) |
| Dimensions (Product) | 200 × 118 × 44 mm |
| Dimensions (Package) | 245 × 190 × 60 mm |
| Weight | 0.54 kg (Net), 0.88 kg (Gross) |
| Carton Size | 520 × 320 × 400 mm |
| Qty per Carton | 20 Units |
| Carton Weight | 18.6 kg |
| Operating Temperature | -10°C ~ +50°C |
| Storage Temperature | -40°C ~ +70°C |
| Operating Humidity | 10% ~ 90% (non-condensing) |
| Storage Humidity | 5% ~ 95% (non-condensing) |
| Certifications | EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge) |
🔧 Use Cases
- Small to medium IP surveillance deployments
- PoE-enabled VoIP phones or wireless access points
- Projects requiring long-distance cable runs (Extend Mode: 220m @ 10Mbps)
- Installations needing PoE watchdog for automatic camera recovery
