"TC-R3104 Spec:I/B/P4/C/Eu/L/S/V2.0 H.265 1HDD 4ch PSE NVR (New Arrival)"
"TC-R3104 Spec:I/B/P4/C/Eu/L/S/V2.0 H.265 1HDD 4ch PSE NVR (New Arrival)"
Sold by: MA Tech
📄 Product Description

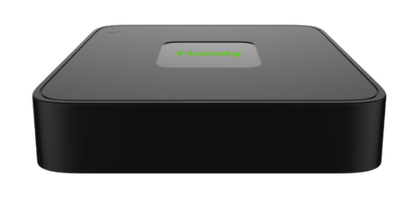

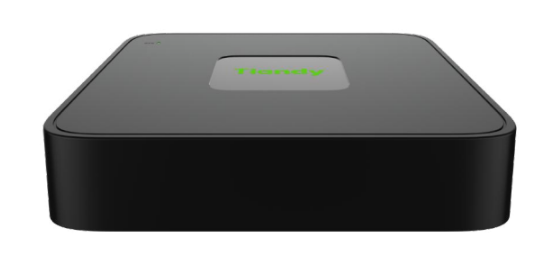

The Tiandy TC-R3104 is a compact and efficient 4-channel PoE Network Video Recorder (NVR) designed for small to medium-scale surveillance systems. Supporting H.265 and S+265 compression, it provides efficient video storage and transmission, reducing storage requirements by up to 75%. With 4 independent PoE ports, it offers plug-and-play support for Tiandy and third-party ONVIF-compliant IP cameras, handling up to 5MP resolution per channel for high-definition recording and live viewing.
The recorder features a single HDMI output supporting resolutions up to 1080P, making it suitable for real-time monitoring. With a built-in 1 SATA interface, it supports up to 6TB of storage capacity and allows USB backup. Intelligent alarms like motion detection, video loss, disk failure, and PoE overload enhance system reliability and ensure proactive surveillance.
Ideal for small offices, retail, or residential use, this NVR integrates seamlessly with Tiandy’s ecosystem through Easy7 VMS, EasyLive Plus, and supports remote access via mobile apps (Android/iOS). Its sleek form factor, intuitive GUI, and multilingual support make deployment and operation straightforward.
Tiandy TC-R3104 aik compact aur efficient 4-channel PoE Network Video Recorder (NVR) hai jo chhoti aur darmiyani scale ki surveillance systems ke liye design kiya gaya hai. Yeh H.265 aur S+265 compression ko support karta hai, jis se video storage aur transmission bohat efficient ho jata hai, aur storage ki zarurat takriban 75% tak kam ho jati hai.
Is recorder mein 4 independent PoE ports hain jo plug-and-play support dete hain Tiandy aur doosri third-party ONVIF-compliant IP cameras ke liye, har channel par 5MP tak resolution ke sath high-definition recording aur live viewing ki sahulat deta hai.
Is device mein aik HDMI output hota hai jo 1080P tak resolution support karta hai, jo real-time monitoring ke liye munasib hai. Built-in 1 SATA interface ke zariye yeh 6TB tak storage capacity support karta hai aur USB backup ki bhi sahulat rakhta hai.
Ismein intelligent alarms bhi hain jaise ke motion detection, video loss, disk failure, aur PoE overload jo system ki reliability barhata hai aur proactive surveillance ko mumkin banata hai.
Yeh NVR chhoti offices, retail shops, ya residential use ke liye ideal hai aur Tiandy ke ecosystem ke sath asaani se integrate hota hai Easy7 VMS, EasyLive Plus, aur remote access mobile apps (Android/iOS) ke zariye support karta hai. Iska sleek design, user-friendly GUI, aur multi-language support deployment aur operation ko asaan banate hain.
📊 Technical Specification Table
Category | Specification |
Model | TC-R3104 Spec: I/B/P4/C/Eu/L/S |
Video Input Channels | 4 |
Supported Camera Resolutions | Up to 5MP per channel |
PoE Ports | 4 × RJ45 (10/100 Mbps, self-adaptive) |
PoE Power Budget | 28W Total / Max. 28W per port / 600mA |
Decoding Capability (Preview) | 5MP×1, 4MP×1, 3MP×1, 1080P×2, 720P×4, 4CIF×4 |
Decoding Capability (Playback) | 5MP×1, 4MP×1, 3MP×1, 1080P×2, 720P×4 |
Video Output | 1 × HDMI (up to 1920×1080 @ 60Hz) |
VGA Output | Not supported |
Multi-screen Display | 1 / 3 / 4 channels |
Third-party Support | ONVIF, RTSP |
Video Compression | S+265, H.265, S+264, H.264 |
Audio Compression | G711A, G711U, AAC, ADPCM_DIV4 |
Audio Input/Output | Not supported |
Storage | 1 × SATA (up to 6TB per HDD) |
Backup | USB storage device |
USB Ports | 2 × USB2.0 |
Alarm Events | Motion, Video Loss, IP Conflict, Disk Full, Abnormal Temp, PoE Overload, etc. |
Smart Features | Advanced VCA (via supported cameras), Auto-detection |
Network Port | 1 × RJ45 (10/100 Mbps) |
Network Protocols | ARP, DDNS, DHCP, DNS, HTTP, ICMP, IGMP, IPv4/IPv6, NTP, RTSP, RTP, TCP, UDP, SSH |
Web Interface Support | IE10+, Firefox52+, Edge89+, Safari11+, Chrome57+ |
Remote Access | Android, iOS, P2P_A |
System Compatibility | CGI, SDK |
Playback Modes | Play, Pause, Stop, Slow, Speed, Jump Back/Forward, Fullscreen, Backup |
Languages Supported | English, Spanish, Italian, French, Dutch, German, Portuguese |
Power Supply | DC 48V, 1A |
Power Consumption | <10W (without HDD & PoE) |
Net Weight | 0.4 kg |
Gross Weight | 0.85 kg |

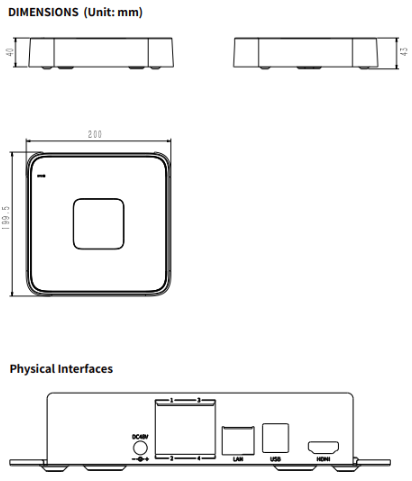

Unit Dimensions | 200(L) × 200(W) × 43(H) mm |
Package Dimensions | 315(L) × 70(W) × 235(H) mm |
Operating Temperature | -10°C ~ +55°C |
Storage Temperature | -10°C ~ +55°C |
Operating Humidity | 10% ~ 90% RH |
Storage Humidity | 10% ~ 90% RH (non-condensing) |
Included Accessories | NVR Unit, Mouse, Power Adapter, Screw Pack |
