TC-R3105 Spec: I/B/L/Eu/V1.1 Tiandy Superlite Cube 5ch NVR 1HDD 6MP Rec.

TC-R3105 Spec: I/B/L/Eu/V1.1 Tiandy Superlite Cube 5ch NVR 1HDD 6MP Rec.

Sold by: MA Tech

Regular price PKR 16,711
Regular price Sale price PKR 16,711
Sale Sold out
Shipping calculated at checkout.

📄 Product Description

The Tiandy TC-R3105 NVR is a cutting-edge 5-channel AI-powered facial recognition network video recorder, designed for high-security applications where identity verification and intelligent surveillance are critical. Supporting S+265/H.265/H.264 compression formats and resolutions up to 6MP, this device provides efficient video encoding and storage without compromising video quality.

It features simultaneous HDMI and VGA output, allowing flexible monitoring setups, while its 1 SATA interface supports up to 10TB of storage, making it suitable for medium-scale deployments with high retention needs. With built-in face recognition capabilities, it supports 1:N identification, handling up to 10,000 face images and 5 image streams for recognition.

The system also supports smart video analytics, event-triggered alarms, and intelligent playback, allowing users to quickly locate footage of interest. Web6 support enables plugin-free browser access across all major browsers, while voice broadcast and a built-in speaker offer real-time auditory alerts.

Ideal for applications in corporate access control, education, public security, and retail environments, the TC-R3105 combines advanced AI features with reliable video management and storage in a compact, cost-effective design.


Tiandy TC-R3105 NVR aik modern 5-channel AI-powered facial recognition network video recorder hai, jo un jagahon ke liye banaya gaya hai jahan security bohat ahem ho aur identity verification aur intelligent surveillance zaroori ho. Yeh S+265, H.265, aur H.264 compression formats ko support karta hai aur 6MP tak ki resolution par video encode aur store karta hai, jis se video quality barqarar rehti hai aur storage efficient hota hai.

Is device mein HDMI aur VGA output saath mein istemal kiye ja sakte hain, jo flexible monitoring setups ke liye mufeed hai. Is ka 1 SATA interface 10TB tak storage support karta hai, jo medium-scale deployments aur zyada footage rakhne ke liye kaafi hai. Built-in face recognition ki sahulat ke sath yeh 1:N identification karta hai, aur 10,000 face images aur 5 image streams tak handle kar sakta hai.

System smart video analytics, event-triggered alarms, aur intelligent playback ko bhi support karta hai, jisse users asaani se apni zarurat ki footage dhoondh sakte hain. Web6 support ki wajah se bina kisi plugin ke tamam bari browsers mein browser se access mumkin hai. Voice broadcast aur built-in speaker real-time auditory alerts dete hain.

Yeh device corporate access control, taleemi idaron, public security, aur retail environments ke liye ideal hai. TC-R3105 advanced AI features ko reliable video management aur storage ke sath combine karta hai, aur compact aur cost-effective design mein aata hai.


📊 Technical Specification Table

Category Specification
Model TC-R3105 Spec: I/F
Video Input Channels 5
Max Input Resolution Up to 6MP
Video Compression S+265, H.265, H.264
Preview Decoding Capability 1×5MP, 1×4MP, 3×1080P, 5×720P, 10×4CIF
Synchronous Playback 1×5MP, 1×4MP, 3×1080P, 5×720P

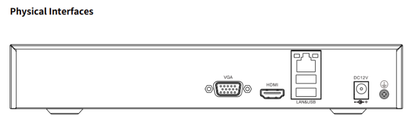

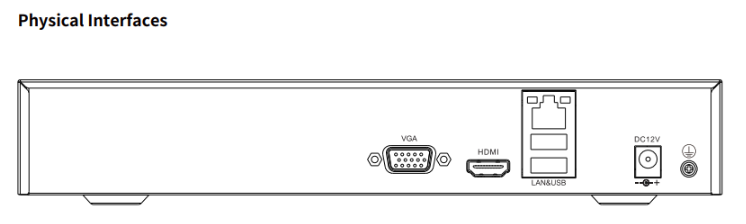

Video Output HDMI ×1, VGA ×1
Output Resolution HDMI: 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800
VGA: 1920×1080, 1280×720, 800×600, 1024×768
Screen Split Display 1 / 3 / 4 / 6
Recording Resolution 6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/CIF/QCIF
Record Encryption Yes
Storage Interface 1 × SATA Interface (Up to 10TB per HDD)
USB Ports 2 × USB 2.0
Network Interface 1 × RJ45 (10/100 Mbps, self-adaptive)
Audio I/O Not supported
Alarm I/O Not supported
Decoding Format S+265 / H.265 / H.264
AI Functionality 1:N Face Recognition, Smart Playback, VCA Alarm Support
Face Libraries Supported 32
Face Picture Capacity 10,000 pictures
Video Streams for Recognition 1
Image Streams for Recognition 5
Smart Search Yes – by selected area in video
Web Interface Web6 – Plugin-free, all-browser compatible
Mobile Support Yes
Power Supply DC 12V, 3.33A
Power Consumption ≤10W (without HDD)
Operating Temperature -10°C ~ 55°C (14℉ ~ 131℉)
Operating Humidity 10% ~ 90% RH
Chassis 1U

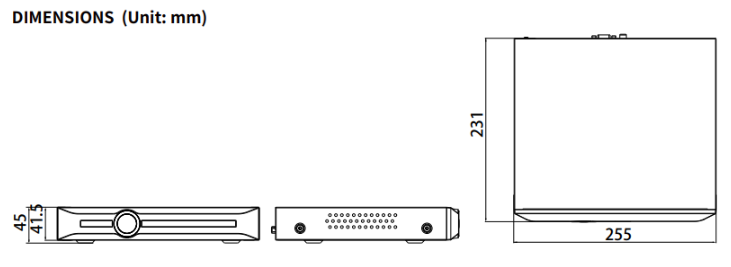

Dimensions 45.1 × 255 × 231 mm (1.78 × 10.04 × 9.09 in)
Weight (without HDD) 1.55 kg (3.42 lb)
Languages Supported English, Simplified Chinese
Special Features Face Recognition, Smart Playback, VCA Detection, Built-in Speaker for Voice Broadcast
Cloud Support Yes – Cloud upgrade supported
