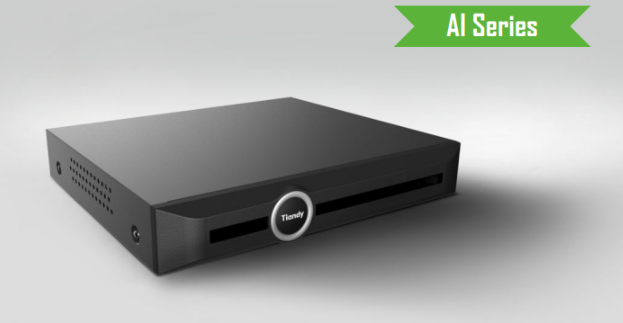

Tiandy TC-R3105 (I/F) – 5CH Face Recognition AI Series NVR


📘 Product Description:

The Tiandy TC-R3105 is a compact yet powerful AI Series 5-channel NVR, designed with integrated face recognition capabilities and intelligent video analytics. Supporting up to 6MP resolution per channel, it accommodates up to 5 IP cameras and provides real-time facial recognition with built-in support for 1:N matching. Ideal for small- to medium-sized applications like offices, retail stores, and schools, it can store up to 10,000 face images and perform face searches based on attributes.

This NVR is compatible with S+265, H.265, and H.264 video formats, offering significant storage savings (up to 75% reduction) without compromising quality. Smart playback and VCA alarm integration with Tiandy smart cameras enable advanced event searching, increasing operational efficiency.

With simultaneous HDMI and VGA outputs at up to 1080P resolution, the TC-R3105 supports flexible display options. Web6 browser interface ensures plugin-free compatibility with all major browsers. The unit features a built-in speaker for voice broadcast, a 1U compact chassis, and supports cloud upgrades for simplified maintenance. Equipped with 2 USB 2.0 ports, this model is a cost-effective, intelligent surveillance solution for environments requiring accurate face identification.


Tiandy TC-R3105 aik compact magar taqatwar AI Series ka 5-channel NVR hai, jo integrated face recognition capabilities aur intelligent video analytics ke sath design kiya gaya hai. Yeh har channel par 6MP resolution tak support karta hai, aur 5 IP cameras tak connect ho sakta hai. Real-time facial recognition feature ke sath, yeh built-in 1:N matching ko support karta hai. Yeh chhoti aur darmiyani size ki jagahon jaise offices, retail stores, aur schools ke liye behtareen hai. Is mein 10,000 tak face images store ki ja sakti hain aur attributes ke basis par face search ki sahulat bhi mojood hai.

Yeh NVR S+265, H.265, aur H.264 video formats ke sath compatible hai, jo storage mein khaas kamm (75% tak) karta hai baghair video quality ko compromise kiye. Smart playback aur Tiandy smart cameras ke sath VCA alarm integration advanced event searching ko mumkin banata hai, jis se operational efficiency barhti hai.

TC-R3105 mein simultaneous HDMI aur VGA outputs mojood hain jo 1080P resolution tak display options provide karte hain. Web6 browser interface ke zariye yeh tamam major browsers ke sath bina kisi plugin ke compatible hai. Device mein built-in speaker hai jo voice broadcast ke liye use hota hai, aur iska 1U compact chassis maintenance aur installation ko aasan banata hai. Do USB 2.0 ports ke sath yeh model ek cost-effective aur intelligent surveillance solution hai jo accurate face identification ki zarurat rakhne wale environments ke liye ideal hai.


📊 Tiandy TC-R3105 – Technical Specification Table

Category Details
Model TC-R3105 Spec: I/F
Series AI Series
Video Input Channels 5 IP channels
Max Recording Resolution Up to 6MP
Compression Formats S+265, H.265, H.264
Preview Capability 1×5MP, 1×4MP, 3×1080P, 5×720P, 10×4CIF
Synchronous Playback 1×5MP, 1×4MP, 3×1080P, 5×720P
Recording Resolution Support 6MP / 5MP / 4MP / 3MP / 1080P / UXGA / 720P / VGA / CIF / QCIF
HDMI Output 1× HDMI (1920×1080, 1280×720, etc.)
VGA Output 1× VGA (1920×1080, 1280×720, etc.)
Display Split Modes 1 / 3 / 4 / 6
Two-Way Audio Not supported
Audio Output Not supported
Storage Interface 1× SATA (up to 10TB)
RAID / eSATA Support Not supported
Bandwidth (Incoming/Outgoing) 80 Mbps / 80 Mbps
Face Recognition Base Libraries 32
Face Picture Capacity 10,000 images
Video Streams for Recognition 1 stream
Picture Streams for Recognition 5 streams
Face Search Function Supported
Records Encryption Yes
Smart Features VCA alarms, smart search/playback, voice broadcast
Alarm I/O Not supported
USB Interfaces 2× USB 2.0
Serial Interfaces Not supported
Network Ports 1× RJ45 10/100 Mbps
Protocols Supported TCP/IP, HTTP, DHCP, DNS, FTP, NTP, SMTP, RTSP, ONVIF, etc.
ANR / Hot Standby Not supported
Web Interface Web6 (no plugin needed)
Mobile Access Supported via Tiandy app
Cloud Upgrade Supported
Built-in Speaker Yes (for voice broadcast)
Operating Temperature -10°C to +55°C
Humidity 10% – 90% RH
Power Supply DC 12V 3.33A
Power Consumption ≤10W (without HDD)
Chassis Type 1U compact

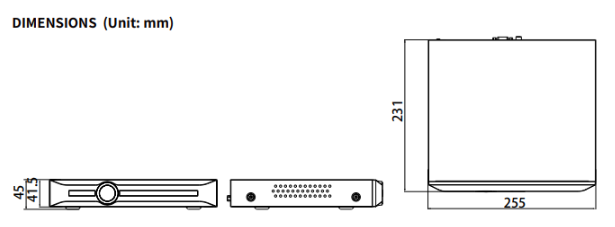

Dimensions (W×D×H) 255 × 231 × 45.1 mm (10.04 × 9.09 × 1.78 inch)
Weight (Without HDD) 1.55 kg (3.42 lb)
Certifications CE, FCC
Languages Supported English, Simplified Chinese
