"TC-R3108 Spec: I/B/P8/C/Eu/L/S/V2.0 H.265 1HDD 8ch PSE NVR (New Arrival)"
"TC-R3108 Spec: I/B/P8/C/Eu/L/S/V2.0 H.265 1HDD 8ch PSE NVR (New Arrival)"
Sold by: MA Tech
📄 Product Description

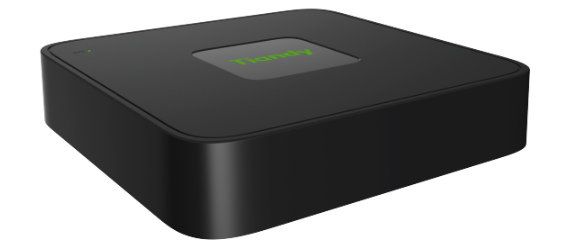

The Tiandy TC-R3108 is a powerful 8-channel PoE Network Video Recorder (NVR) designed for professional video surveillance in commercial, industrial, or large residential environments. Supporting up to 8 IP cameras and capable of decoding streams up to 6MP resolution, it ensures high-quality live viewing and playback. Equipped with S+265/H.265 advanced video compression technology, it reduces bandwidth and storage usage by up to 75%, enhancing system efficiency.

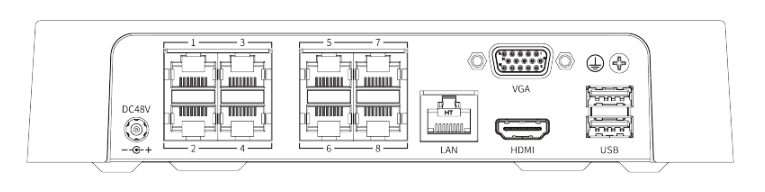

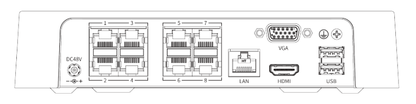

This model offers dual video output via HDMI and VGA, supporting simultaneous display in up to 9-split screen modes, ideal for real-time monitoring. The system supports synchronous 4-channel playback, and its built-in 1 SATA interface allows for storage up to 6TB, suitable for long-term recording needs.
The TC-R3108 also features 8 built-in PoE ports, eliminating the need for external power to connected IP cameras and streamlining installations. With broad third-party compatibility via ONVIF and RTSP, intuitive GUI, multilingual interface, and support for mobile apps (Android/iOS), this NVR offers an ideal solution for scalable and flexible surveillance deployments.
Tiandy TC-R3108 aik taqatwar 8-channel PoE Network Video Recorder (NVR) hai jo professional video surveillance ke liye design kiya gaya hai, khaas tor par commercial, industrial, ya bade residential environments ke liye. Yeh 8 IP cameras tak ko support karta hai aur 6MP tak resolution streams ko decode kar sakta hai, jis se live viewing aur playback bohat high quality ke sath mumkin hota hai.
Is mein S+265/H.265 advanced video compression technology istemal hoti hai jo bandwidth aur storage ki zarurat ko 75% tak kam kar deti hai, jis se system ki efficiency barhti hai.
Yeh model dual video output offer karta hai via HDMI aur VGA, aur aik waqt mein 9-split screen tak ki display support karta hai, jo real-time monitoring ke liye bohat mufeed hai. System synchronous 4-channel playback bhi support karta hai, aur built-in 1 SATA interface ke zariye 6TB tak storage ki sahulat deta hai, jo lambe arsey ke recording ke liye kaafi hai.
TC-R3108 mein 8 built-in PoE ports hain jo IP cameras ko external power ki zarurat khatam kar dete hain aur installation ko asaan banate hain. Yeh ONVIF aur RTSP ke zariye wide third-party compatibility rakhta hai, user-friendly GUI, multilingual interface, aur Android/iOS mobile apps ke liye bhi support mojood hai.
Yeh NVR scalable aur flexible surveillance setups ke liye ek behtareen hal hai.
📊 Technical Specification Table
Category | Specification |
Model | TC-R3108 Spec:I/B/P8/C/Eu/L/S/V2.0 |
Video Input Channels | 8 |
Supported Resolution | Up to 6MP (6MP/5MP/4MP/3MP/1080P/720P/CIF/QCIF, etc.) |
Preview Decoding | 6MP×1, 5MP×1, 4MP×2, 3MP×2, 1080P×4, 720P×8, 4CIF×8 |
Playback Decoding | 6MP×1, 5MP×1, 4MP×1, 3MP×2, 1080P×3, 720P×4 |
Synchronous Playback | 4 Channels |
Video Compression | S+265, H.265, S+264, H.264 |
Audio Compression | G711A, G711U, ADPCM_DIV4 |
Stream Type | Video / Video & Audio |
Third-party Camera Access | ONVIF, RTSP |
HDMI Output | Up to 1920×1080 (1080P), supports 720P, 1440×900, 1280×800 |
VGA Output | Up to 1920×1080 (1080P), supports 720P, 1440×900, 1280×800 |
Multi-Screen Display | VGA & HDMI: 1 to 9 split-screens simultaneously |
Recording Modes | Alarm recording, Schedule recording |
Playback Functions | Play, Pause, Stop, Speed Control, 30s Forward/Backward, Fullscreen, Backup, Zoom |
Alarm Types | Motion Detection, Video Loss, Mask Alarm |
Alarm Exceptions | IP/MAC Conflict, Disk Full/Error, No Disk, PoE Overload, RTC Failure, etc. |
Smart Features (via camera) | Smart Motion Detection |
HDD Interface | 1 × SATA (Up to 6TB per HDD) |
Backup Method | USB Storage Device |
PoE Ports | 8 × RJ45 (10/100 Mbps self-adaptive) |
PoE Budget | Total 45W / Max. 30W per port |
PoE Standard | IEEE 802.3 af/at |
Network Interface | 1 × RJ45 (10/100 Mbps) |
USB Ports | 2 × USB2.0 |
System Compatibility | CGI, SDK |
Web Browsers Supported | IE10+, Chrome57+, Firefox52+, Edge89+, Safari11+ |
Mobile Access | Android, iOS, P2P |
Power Supply | DC48V, 1.35A |
Power Consumption | <10W (without HDD & PoE) |
Operating Temperature | -10°C ~ +55°C (14℉ ~ 131℉) |
Storage Temperature | -20°C ~ +60°C (-4℉ ~ 140℉) |
Operating/Storage Humidity | 10% ~ 90% RH (non-condensing) |
Supported Languages | English, Spanish, Italian, Turkish, French, Polish, Dutch, Hebrew, German, Portuguese |
Net Weight | 0.47 kg |
Gross Weight | 0.89 kg |

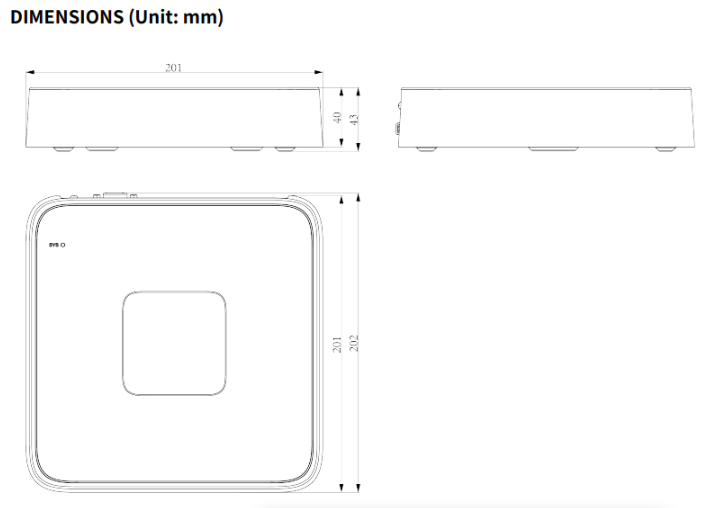

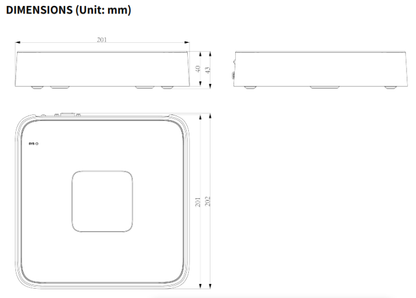

Product Dimensions | 200(L) × 200(W) × 43(H) mm |
Package Dimensions | 315(L) × 70(W) × 235(H) mm |
Package Contents | NVR, Power Adapter (EU Standard), Mouse, Screw Pack |
