TC-R3110 Spec: I/B/L/Eu/V1.1 Tiandy Superlite Cube 10ch NVR 1HDD 6MP Rec.
TC-R3110 Spec: I/B/L/Eu/V1.1 Tiandy Superlite Cube 10ch NVR 1HDD 6MP Rec.
Sold by: MA Tech

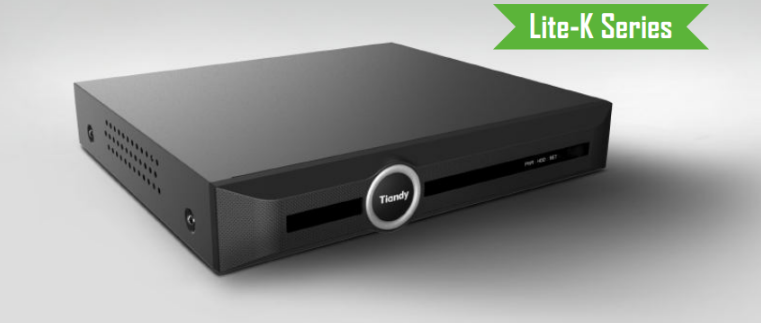

📄 Product Overview – TC-R3110 (Lite-K Series)
The Tiandy TC-R3110 is a high-performance 10-channel NVR designed for small to medium-sized surveillance installations requiring up to 8MP resolution per channel. It supports S+265/H.265/H.264 compression for efficient bandwidth and storage usage — reducing storage costs by up to 75%.
With HDMI and VGA simultaneous outputs, including support for 4K (3840×2160) HDMI output, it provides flexible display options and crisp video monitoring. The NVR supports up to 10 IP cameras, has a single HDD slot (supporting up to 10TB), and includes smart VCA features when connected with Tiandy smart IP cameras.
This model also offers smart search, cloud upgrade, Web6 browser-based interface, and a voice output via RCA, making it ideal for professional surveillance environments such as retail stores, small offices, or residential buildings that demand intelligent monitoring capabilities in a compact chassis.
Tiandy TC-R3110 aik high-performance 10-channel NVR hai jo chhoti se darmiyani size ki surveillance installations ke liye design kiya gaya hai, jahan har channel par 8MP resolution tak ki support chahiye hoti hai. Yeh S+265, H.265, aur H.264 compression ko support karta hai, jis se bandwidth aur storage ki bachat hoti hai, aur storage ki cost takriban 75% tak kam ho sakti hai.
Is NVR mein HDMI aur VGA outputs aik saath use kiye ja sakte hain, jismein 4K (3840×2160) HDMI output bhi shamil hai, jo flexible display options aur clear video monitoring ke liye behtareen hai. Yeh device 10 IP cameras tak ko support karta hai, aur ek HDD slot ke zariye 10TB tak storage provide karta hai. Jab Tiandy smart IP cameras ke saath connect hota hai to smart VCA (Video Content Analytics) features bhi istemal kiye ja sakte hain.
Is model mein smart search, cloud upgrade, Web6 browser-based interface, aur RCA voice output bhi maujood hai, jis ki wajah se yeh professional surveillance ke liye perfect hai, jaise retail stores, chhoti offices, ya residential buildings jahan intelligent monitoring zaroori hoti hai. Yeh sab kuch aik compact aur efficient chassis mein mojood hai.
📊 Technical Specification Table
| Category | Specification |
| Model | TC-R3110 Spec: I/B/K/V3.0 |
| Video Input Channels | 10 |
| Max Input Resolution | 8MP |
| Video Compression | S+265 / H.265 / H.264 |
| Preview Decoding Capability | 1×8MP, 1×6MP, 1×5MP, 2×4MP, 2×3MP, 4×1080P, 8×720P, 10×4CIF |
| Synchronous Playback | Same as preview (up to 8MP x1 or 10 x 4CIF) |
| Recording Resolution | 8MP/6MP/5MP/3MP/1080P/UXGA/720P/VGA/4CIF to QCIF |

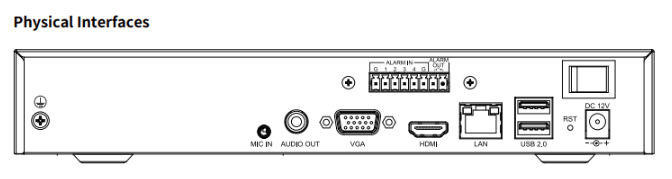

| Video Output Ports | HDMI ×1, VGA ×1 |
| Output Resolution (HDMI) | Up to 4K: 3840×2160, 2560×1440, 1920×1080, 1280×720, etc. |
| Output Resolution (VGA) | Up to 1920×1080 |
| Audio Output | 1 × RCA |
| Audio Input (2-way) | 1 × 3.5mm jack |
| Screen Split Modes | 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 |
| Hard Disk Interface | 1 × SATA (Up to 10TB per HDD) |
| USB Ports | 2 × USB 2.0 |
| Alarm In/Out | 4 input / 1 output |
| Network Port | 1 × RJ-45 (10/100 Mbps self-adaptive) |
| Network Protocols | TCP/IP, HTTP/HTTPS, FTP, DHCP, DDNS, RTP/RTSP/RTCP, PPPoE, NTP, UPnP, SMTP, IPv4/6 |
| IGMP, QoS, Multicast, ARP, UDP, SNMP, SSL, Telnet, RTMP, NFS | |
| Third-party Compatibility | ONVIF (Profile S/T/G), SDK, P2P |
| System Web Interface | Web6 – Plugin-free, works with all major browsers |
| Languages Supported | English, Simplified/Traditional Chinese, Spanish, French, Russian, Arabic, etc. |
| VCA Support | Yes – with Tiandy Smart IP Cameras |
| Smart Search | Yes |
| Cloud Upgrade | Supported |
| Records Encryption | Yes |
| Power Supply | DC 12V, 3.33A |
| Power Consumption | ≤10W (without HDD) |
| Chassis | 1U |

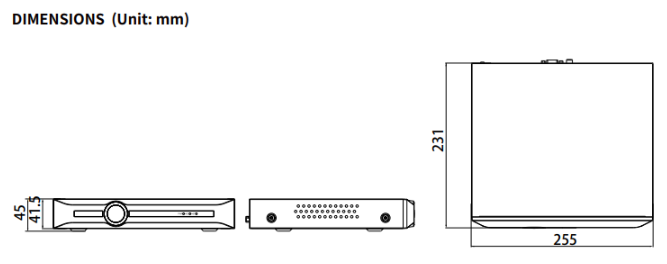

| Dimensions (mm) | 45.1(H) × 255(W) × 231(D) mm (1.78 × 10.04 × 9.09 in) |
| Weight (without HDD) | 0.9 kg (1.98 lb) |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Operating Humidity | 10% ~ 90% RH (non-condensing) |
🔑 Summary of Key Features
- 10-channel 8MP NVR
- 4K HDMI output + VGA
- 1 HDD (up to 10TB)
- Smart VCA support with Tiandy IP cameras
- Intelligent playback and smart search
- Multilingual Web6 interface
- Audio input/output support
- Alarm I/O (4 in / 1 out)
- Compact 1U chassis with low power usage
