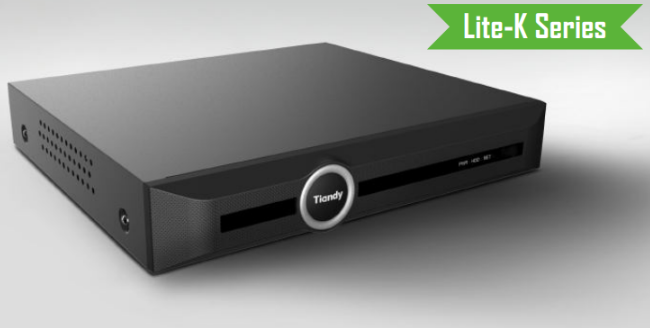

Tiandy TC-R3110 (I/B/K/V3.0) – 10CH H.265 Lite-K NVR
📘 Product Description:
The Tiandy TC-R3110 is a compact and versatile Lite-K Series 10-channel NVR, engineered for small to medium-scale IP surveillance systems. Supporting S+265, H.265, and H.264 compression formats, this model ensures optimal video quality with significant storage savings—up to 75% reduced storage costs—when using Tiandy's advanced S+265 compression.
Capable of recording up to 8MP resolution and supporting simultaneous HDMI and VGA video outputs, the NVR allows for 4K live viewing and playback. It supports smart IP cameras from Tiandy with VCA alarms, including intelligent features like smart search and smart playback, significantly improving monitoring efficiency.
With 1 SATA bay supporting up to 10TB, dual USB ports, and a user-friendly Web6 interface, the TC-R3110 delivers robust performance in a compact 1U chassis. It is ideal for cost-sensitive applications such as shops, schools, and residential buildings, while still offering essential video intelligence, centralized camera management, and cloud upgrade support.
Tiandy TC-R3110 aik compact aur versatile Lite-K Series ka 10-channel NVR hai, jo chhoti se darmiyani scale ki IP surveillance systems ke liye design kiya gaya hai. Yeh S+265, H.265, aur H.264 compression formats ko support karta hai, jo behtareen video quality ke sath storage mein kafi bachaat karta hai—storage ke kharche tak 75% tak kam kar sakta hai—jab Tiandy ke advanced S+265 compression istemal ki jaye.
Yeh NVR 8MP tak resolution record kar sakta hai aur simultaneous HDMI aur VGA video outputs provide karta hai, jisse 4K live viewing aur playback mumkin hota hai. Yeh Tiandy ke smart IP cameras ko VCA alarms ke sath support karta hai, jisme smart search aur smart playback jaise intelligent features shamil hain, jo monitoring ki efficiency ko kaafi behtar banate hain.
Is mein 1 SATA bay hai jo 10TB tak storage support karta hai, do USB ports, aur user-friendly Web6 interface bhi mojood hai. TC-R3110 apne compact 1U chassis mein mazboot performance deta hai. Yeh un applications ke liye ideal hai jahan cost sensitivity ho, jaise shops, schools, aur residential buildings, magar phir bhi essential video intelligence, centralized camera management, aur cloud upgrade support provide karta hai.
📊 Technical Specification Table: Tiandy TC-R3110 NVR
Category | Details |
Model | TC-R3110 Spec: I/B/K/V3.0 |
Series | Lite-K Series |
Video Input Channels | 10 IP cameras |
Max Recording Resolution | Up to 8MP |
Compression Formats | S+265, H.265, H.264 |
Preview Capability | 1×8MP, 1×6MP, 1×5MP, 2×4MP, 2×3MP, 4×1080P, 8×720P, 10×4CIF |
Synchronous Playback | 1×8MP, 1×6MP, 1×5MP, 2×4MP, 2×3MP, 4×1080P, 8×720P |
Recording Resolution Support | 8MP / 6MP / 5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / CIF / QCIF |
Bandwidth (Incoming/Outgoing) | 80 Mbps / 80 Mbps |

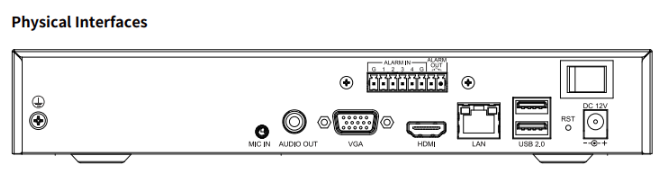

Two-Way Audio Input | 1× 3.5mm |
Audio Output | 1× RCA |
HDMI Output | 1× HDMI (3840×2160, 2560×1440, 1920×1080, etc.) |
VGA Output | 1× VGA (1920×1080, 1280×720, 1024×768, etc.) |
Display Split Modes | 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 |
Storage Interface | 1× SATA (up to 10TB per HDD) |
RAID / eSATA Support | Not supported |
USB Interfaces | 2× USB 2.0 |
Serial Interfaces | Not supported |
Alarm I/O | 4 inputs / 1 output |
Network Ports | 1× RJ45 10/100 Mbps |
Supported Protocols | TCP/IP, HTTP/HTTPS, FTP, NTP, RTSP, SNMP, DDNS, P2P, SSL, etc. |
System Compatibility | ONVIF (Profile S/T/G), SDK, P2P |
Smart Features | VCA alarm support, smart playback, smart search |
Web Interface | Web6 (plugin-free, multi-browser support) |
Mobile Access | Supported |
Cloud Upgrade | Supported |
Records Encryption | Yes |
Operating Temperature | -10°C to +55°C |
Humidity | 10% – 90% RH |
Power Supply | DC 12V 3.33A |
Power Consumption | ≤10W (without HDD) |
Chassis Type | 1U |

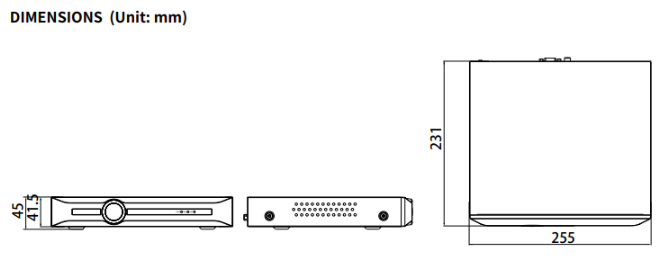

Dimensions (W×D×H) | 255 × 231 × 45.1 mm (10.04 × 9.09 × 1.78 inch) |
Weight (Without HDD) | 0.9 kg (1.98 lb) |
Languages Supported | English, Chinese (Simplified & Traditional), Spanish, Korean, Arabic, etc. |
Certifications | CE, FCC |
