"TC-R3120 Spec:I/B/K/V3.1 Tiandy Lite Lite-K 20ch NVR 1HDD 8MP Rec."
"TC-R3120 Spec:I/B/K/V3.1 Tiandy Lite Lite-K 20ch NVR 1HDD 8MP Rec."
Sold by: MA Tech

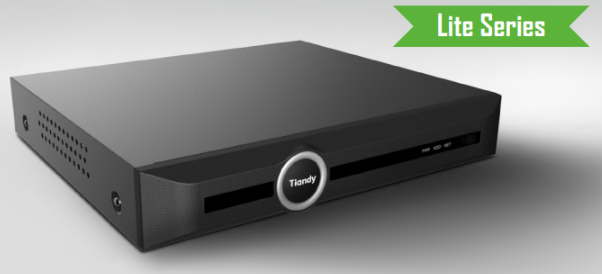

📄 Product Overview – TC-R3120 (Lite Series)
The Tiandy TC-R3120 is a 20-channel IP NVR designed for large-scale surveillance systems requiring high-definition recording (up to 8MP) and 4K HDMI output. Built with efficient S+265/H.265/H.264 compression, it drastically reduces bandwidth and storage needs — up to 75% savings.
This model supports simultaneous HDMI and VGA outputs, offers intelligent video analytics (VCA) via compatible Tiandy cameras, and features smart search/playback functionality to streamline investigations. It includes the Web6 interface, enabling browser-based access without plugins across all major browsers.
Ideal for retail centers, warehouses, school campuses, and larger commercial setups, the TC-R3120 provides a cost-effective, powerful solution in a compact 1U chassis.
Tiandy TC-R3120 aik 20-channel IP NVR hai jo baray scale ke surveillance systems ke liye design kiya gaya hai, jahan high-definition recording (8MP tak) aur 4K HDMI output ki zaroorat hoti hai. Yeh S+265, H.265, aur H.264 compression technologies use karta hai, jo bandwidth aur storage ki requirement ko takriban 75% tak kam kar deti hain.
Is model mein HDMI aur VGA outputs aik saath istemal kiye ja sakte hain. Yeh compatible Tiandy cameras ke zariye intelligent video analytics (VCA) bhi support karta hai, aur smart search aur playback features provide karta hai, jis se footage ki investigation asaan ho jati hai. Web6 interface ki wajah se bina kisi plugin ke tamam major browsers par browser-based access mumkin hai.
Retail centers, warehouses, school campuses, aur bade commercial setups ke liye yeh TC-R3120 aik powerful aur cost-effective solution hai, jo ek compact 1U chassis mein mojood hai.
📊 Technical Specification Table
Category | Specification |
Model | TC-R3120 Spec: I/B/V2.0 |
Video Input Channels | 20 |
Max Input Resolution | 8MP |
Video Compression | S+265 / H.265 / H.264 |
Preview Decoding Capability | 1×4K, 1×5MP, 2×4MP, 4×1080P, 8×720P, 20×4CIF |
Synchronous Playback | 1×4K, 1×5MP, 2×4MP, 4×1080P, 8×720P |
Recording Resolution | 8MP/6MP/5MP/3MP/1080P/UXGA/720P to QCIF |

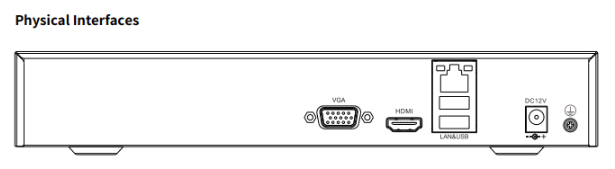

Video Output Ports | HDMI ×1, VGA ×1 |
Output Resolution (HDMI) | Up to 4K: 3840×2160, plus 2560×1600, 1920×1080, etc. |
Output Resolution (VGA) | Up to 1920×1080 |
Audio Output | 1 × RCA |
Two-way Audio | Not Supported |
Screen Split Modes | 1/3/4/5/6/7/8/9/10/13/16/20A/20B |
Hard Disk Interface | 1 × SATA (Up to 10TB per HDD) |
USB Ports | 2 × USB 2.0 |
Alarm In/Out | Not Supported |
Network Port | 1 × RJ-45 (10/100 Mbps self-adaptive) |
Network Bandwidth | Incoming: 80 Mbps, Outgoing: 80 Mbps |
Network Protocols | TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP/RTCP, NTP, UPnP, SMTP, IPv4/6 |
IGMP, QoS, Multicast, ARP, UDP, Telnet, SNMP, RTMP, SSL, NFS | |
Third-party Compatibility | ONVIF (Profile S/T/G), SDK, P2P |
System Web Interface | Web6 – Plugin-free, compatible with Chrome, Safari, Edge, Firefox |
VCA Support | Yes – with Tiandy Smart IP Cameras |
Smart Search & Playback | Supported |
Cloud Upgrade | Supported |
Records Encryption | Yes |
Power Supply | DC 12V, 1.5A |
Power Consumption | ≤10W (without HDD) |
Chassis | 1U |

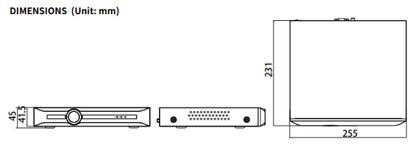

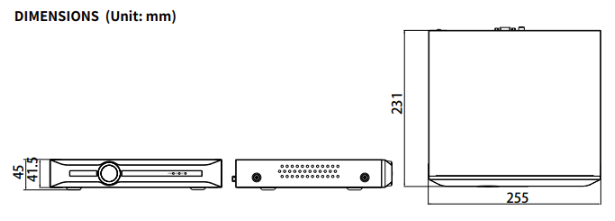

Dimensions (mm) | 45.1(H) × 255(W) × 231(D) mm (1.78 × 10.04 × 9.09 in) |
Weight (without HDD) | 0.8 kg (1.76 lb) |
Operating Temperature | -10°C to +55°C (14°F to 131°F) |
Operating Humidity | 10% ~ 90% RH (non-condensing) |
Languages Supported | English, Spanish, Russian, Korean, Italian, French, Polish, Dutch, Farsi, etc. |
🔑 Key Highlights
- 20-channel 8MP recording
- HDMI 4K + VGA output simultaneously
- Up to 10TB HDD storage (1 slot)
- Intelligent VCA and smart search features
- Web6 cross-browser, plug-in-free remote access
- Compact and lightweight 1U design
