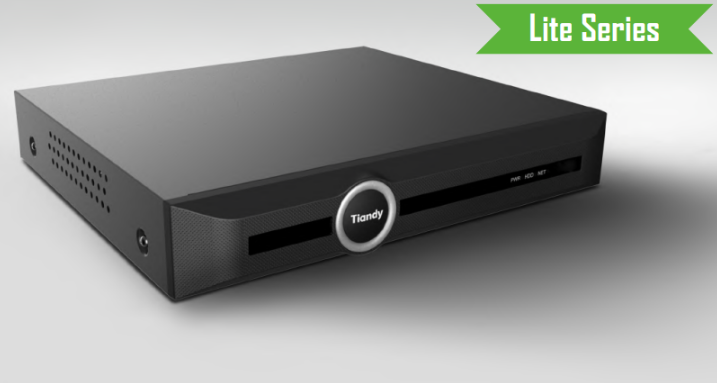

Tiandy TC-R3120 (I/B/V2.0) – 20CH H.265 NVR


📘 Product Description:

The Tiandy TC-R3120 is a compact and powerful 20-channel network video recorder (NVR) tailored for small to mid-sized surveillance installations requiring intelligent performance in a space-saving form factor. With support for S+265, H.265, and H.264 compression formats, this NVR is designed to reduce bandwidth and storage requirements by up to 75%, enabling longer retention without additional storage costs.

Capable of handling camera streams up to 8MP resolution, the TC-R3120 supports HDMI and VGA outputs simultaneously, with HDMI supporting resolutions up to 4K (3840×2160). It includes 1 SATA interface, supporting up to 10TB of storage for recordings. The system allows smart playback, intelligent VCA alarm recording, and cloud upgrades.

The Web6 interface ensures compatibility with all modern browsers without the need for plugins, while VCA features like people counting, tripwire detection, and more are enabled when used with Tiandy smart IP cameras. Lightweight yet efficient, this 1U device is ideal for distributed locations such as retail stores, offices, and small institutions.


Tiandy TC-R3120 aik compact aur powerful 20-channel network video recorder (NVR) hai jo chhoti se mid-sized surveillance installations ke liye design kiya gaya hai, jahan intelligent performance aur space-saving design dono zaroori hotay hain. Yeh NVR S+265, H.265, aur H.264 compression formats ko support karta hai, jis se bandwidth aur storage ki zaroorat takriban 75% tak kam ho jati hai, jis se zyada recording retention mumkin hoti hai bina extra storage kharche ke.

Yeh 8MP tak resolution walay camera streams ko handle kar sakta hai aur simultaneously HDMI aur VGA outputs provide karta hai, jisme HDMI 4K (3840×2160) resolution tak support karta hai. Is mein 1 SATA interface hota hai jo 10TB tak storage support karta hai recordings ke liye. System smart playback, intelligent VCA alarm recording, aur cloud upgrades bhi allow karta hai.

Web6 interface tamam modern browsers ke sath compatible hai bina kisi plugin ke, aur VCA features jaise people counting, tripwire detection, waghera Tiandy smart IP cameras ke sath use karne par enable hote hain. Yeh lightweight aur efficient 1U device retail stores, offices, aur chhoti institutions jaise distributed locations ke liye behtareen hai.


📊 Technical Specification Table: Tiandy TC-R3120 NVR

Category Specification
Model TC-R3120 Spec: I/B/V2.0
Video Input Channels 20 IP cameras
Max Recording Resolution 8MP
Compression Formats S+265 / H.265 / H.264
Two-Way Audio Not Supported
Bandwidth (In/Out) 80 Mbps / 80 Mbps
Preview Capability 1×4K, 1×5MP, 2×4MP, 4×1080P, 8×720P, 20×4CIF
Synchronous Playback 1×4K, 1×5MP, 2×4MP, 4×1080P, 8×720P
Recording Resolutions 8MP / 6MP / 5MP / 3MP / 1080P / 720P / VGA / CIF / QCIF

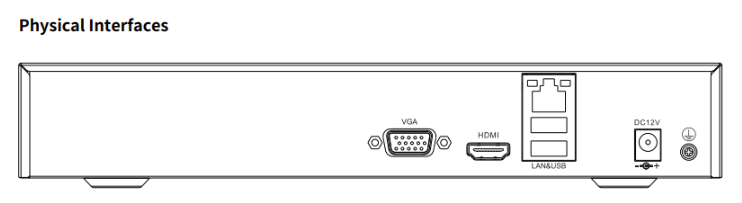

HDMI Output 1×, up to 4K (3840×2160), various resolutions supported
VGA Output 1×, up to 1080P
Display Split Options 1/3/4/5/6/7/8/9/10/13/16/20A/20B
Audio Output 1× RCA
Audio Input Not Available
Storage Interface 1× SATA interface
Max HDD Capacity Up to 10TB
eSATA Support No
RAID Support Not Available
USB Interfaces 2× USB 2.0
Network Interface 1× RJ-45 10/100 Mbps Ethernet
Serial Interface Not Available
Alarm In/Out Not Available
Record Encryption Yes
Smart Search Yes (with VCA-enabled Tiandy cameras)
VCA Support Yes (with Tiandy smart cameras)
Cloud Upgrade Supported
Web Interface Web6 (HTML5 based, plugin-free)
Browser Compatibility Chrome, Safari, Edge, Firefox, IE
Mobile App Easylive (iOS & Android)
ONVIF Compatibility ONVIF (Profiles S/T/G), SDK, P2P
Languages Supported English, Russian, Spanish, Korean, Italian, Turkish, Thai, French, Polish, Dutch, Hebrew, Farsi, Simplified & Traditional Chinese
Operating Conditions -10°C ~ +55°C, 10% ~ 90% RH
Power Supply DC 12V 1.5A
Power Consumption ≤10W (without HDD)
Chassis 1U

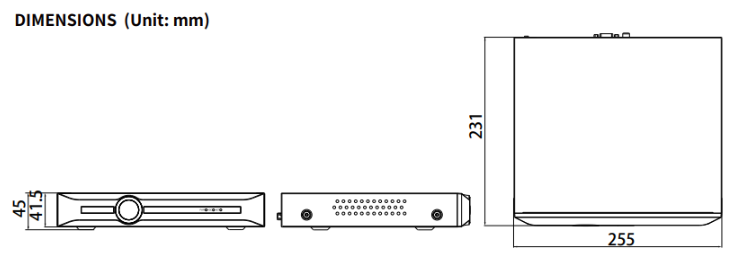

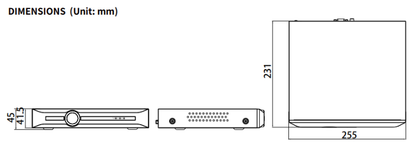

Dimensions (W×D×H) 255 × 231 × 45.1 mm (10.04 × 9.09 × 1.78 in)
Weight (without HDD) 0.8 kg (1.76 lb)
Certifications CE, FCC
