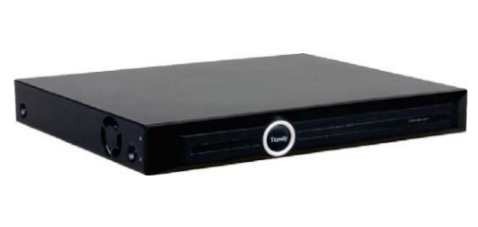

Tiandy TC-R3220 (I/B) – 20CH 2HDD Intelligent NVR
📘 Product Description:
The Tiandy TC-R3220 is a high-performance 20-channel H.265 NVR designed for intelligent video surveillance systems requiring both reliability and AI-powered analytics. This 1U NVR supports recording up to 4K resolution, with S+265 compression that drastically reduces storage usage and bandwidth—ideal for maximizing efficiency in modern IP video systems.
Equipped with two SATA ports supporting up to 20TB total storage, the TC-R3220 ensures long-term recording capability. It supports smart search and intelligent recording, including video content analysis (VCA) functions like tripwire, loitering, people counting, face detection, and more—when paired with compatible Tiandy smart cameras.
With support for cloud upgrades, IPC upgrades, ANR, and a plug-in-free Web6 interface, this recorder fits seamlessly into any modern, browser-based workflow. Dual video outputs (HDMI and VGA) allow simultaneous display with up to 4K output on HDMI. The interface supports UI V3.0, allowing intuitive navigation with drag-and-drop functionality. Built with CE and FCC compliance, this recorder is engineered for professional-grade installations across retail, commercial, and industrial environments.
Tiandy TC-R3220 aik high-performance 20-channel H.265 NVR hai jo intelligent video surveillance systems ke liye design kiya gaya hai, jahan reliability aur AI-powered analytics dono zaroori hain. Yeh 1U NVR 4K resolution tak recording support karta hai, aur S+265 compression use karta hai jo storage aur bandwidth ko kafi had tak kam karta hai—jo modern IP video systems mein efficiency maximize karne ke liye ideal hai.
Is mein do SATA ports hain jo total 20TB tak storage support karte hain, jis se lambi muddat tak recording mumkin hoti hai. Yeh smart search aur intelligent recording ko support karta hai, jisme video content analysis (VCA) functions shamil hain jaise tripwire, loitering, people counting, face detection, aur bhi bahut kuch—jab compatible Tiandy smart cameras ke sath use kiya jaye.
Cloud upgrades, IPC upgrades, ANR, aur plug-in-free Web6 interface ke support ke sath, yeh recorder modern browser-based workflows mein asaani se integrate ho jata hai. Dual video outputs (HDMI aur VGA) simultaneous display ke liye hain, jisme HDMI par 4K tak output available hai. Interface UI V3.0 ko support karta hai, jo drag-and-drop functionality ke sath intuitive navigation deta hai. CE aur FCC compliance ke sath bana yeh recorder retail, commercial, aur industrial environments mein professional-grade installations ke liye perfect hai.
📊 Technical Specification Table: Tiandy TC-R3220 NVR
Category | Specification |
Model | TC-R3220 Spec: I/B |
Video Input | 20 Channels |
Max Recording Resolution | 4K (3840×2160) |
Compression Formats | S+265 / H.265 / H.264H / H.264M / H.264B |
Audio Input / Output | 1× 3.5mm input / 1× RCA output (Linear, 1kΩ) |
Incoming/Outgoing Bandwidth | 80 Mbps / 80 Mbps |
Synchronous Playback | 1× 4K, 4× 1080P, 8× 720P, 16× 4CIF |
Preview Capability | 1× 4K, 4× 1080P, 8× 720P, 20× 4CIF |
Recording Resolution | 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
Display Split | 1 / 3 / 4 / 6 / 8 / 9 / 10 / 13 / 16 / 20A / 20B |
HDMI Output | 1×, up to 3840×2160@30Hz |
VGA Output | 1×, up to 1920×1080 |
Output Mode | Adjustable / Self-Adaptive |
E-Zoom | Yes |
I-Frame Record | Yes |
Storage Interface | 2× SATA interfaces |
Max HDD Capacity | Up to 10TB per HDD (Total: 20TB) |
HDD Management | Group, Quota, Custom Recording Days |
File System | NTFS |
RAID Support | Not Supported |
ANR (Auto Network Recovery) | Yes |
Smart Features (VCA) | Tripwire, Double Tripwire, Perimeter, Object Abandon/Lost, Loitering, Running, Parking, Face Detection, Crowd Detection, On Duty Detection, Face/People Counting, Alert, Auto Tracking, Video/Audio Abnormal Detection, Scene Change |
Smart Recording | Variable Bitrate Scheduling |
Smart Search | Yes (only with Tiandy cameras) |
Trigger Recording | Manual, Timing, Motion Detection, Port Alarm, VCA Alarm, Video Lost/Mask |
Alarm Recording | Pre/Post Alarm Recording (5-600s) |
Video Format | SDV, MP4 |
Record Encryption | Yes |
Record Tagging | Yes |
Network Interface | 1× RJ-45 (10/100 Mbps, self-adaptive) |
USB Ports | 2× USB 2.0 |
Serial Interface | Not Available |
Alarm In/Out | 0 / 1 |
ONVIF Compliance | ONVIF Profile S |
Browser Compatibility | All browsers including Chrome, Safari, Edge, Firefox (H.265 config via non-IE only) |
Mobile App | Easylive (iOS & Android) |
Web Interface | Web6 (HTML5 based, plug-in free) |
User Interface | UI V3.0 with drag-and-drop navigation |
Cloud Upgrade | Yes (NVR & IPC) |
Image Flip / Corridor Mode | Yes (Tiandy cameras only) |
Languages | English, Spanish, Korean, Italian, Turkish, Thai, Russian, Polish, French, Dutch, Hebrew (UI), Simplified & Traditional Chinese |
Power Supply | DC12V 3.33A |
Power Consumption | ≤35W (without HDD) |
Working Temperature | -10°C ~ +55°C |
Humidity | 10% ~ 90% RH |
Chassis | 1U |

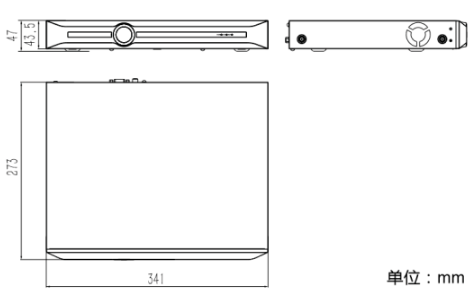

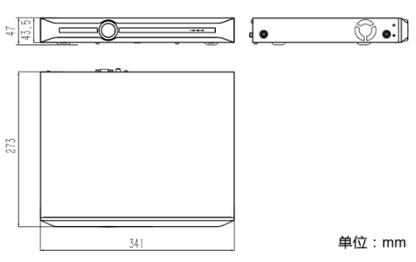

Dimensions (W×D×H) | 341 × 273 × 47 mm |
Weight | 2.3 kg (without HDD), 4 kg (with packaging) |
Certifications | CE, FCC |
