"TC-R3220 Spec:I/B/P16/K/V3.1 Tiandy Lite Lite-K 20ch NVR 2HDD 8MP Rec."

"TC-R3220 Spec:I/B/P16/K/V3.1 Tiandy Lite Lite-K 20ch NVR 2HDD 8MP Rec."

Sold by: MA Tech

Regular price PKR 96,674
Regular price Sale price PKR 96,674
Sale Sold out
Shipping calculated at checkout.

📘 Product Description: Tiandy TC-R3220 (I/B) – 20CH H.265 NVR

The Tiandy TC-R3220 is a 20-channel network video recorder (NVR) designed for modern IP surveillance environments that require intelligent analytics, 4K recording, and efficient video storage. Equipped with S+265 compression, it significantly reduces storage usage—by up to 75%—without compromising video quality. The system supports video inputs of up to 8MP resolution, making it ideal for deployments needing clear and detailed footage, such as offices, retail centers, and educational institutions.

The NVR features dual monitor output (HDMI and VGA) with a maximum resolution of 4K (3840×2160), allowing for crisp video display. Two internal SATA ports support up to 20TB of total storage (10TB per drive). Intelligent video analytics such as face detection, people counting, object abandonment, and tripwire detection are supported—particularly when paired with Tiandy smart cameras.

With the Web6 interface, users can access the system from any modern browser, plugin-free. Cloud upgrades, smart recording, VCA alarm recording, and ANR (Automatic Network Replenishment) further enhance reliability and usability. Its compact 1U chassis makes it easy to install in standard IT racks or desktop environments.

📊 Technical Specification Table: Tiandy TC-R3220 NVR

Category Specification
Model TC-R3220 Spec: I/B
Video Input Channels 20 IP cameras
Audio Input 1-ch, 3.5mm
Max Recording Resolution 8MP
Compression Formats S+265 / H.265 / H.264H / H.264M / H.264B
Bandwidth (In/Out) 80 Mbps / 80 Mbps
Preview Capability 1×4K, 4×1080P, 8×720P, 20×4CIF
Synchronous Playback 1×4K, 4×1080P, 8×720P, 16×4CIF
Recording Resolution 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 720P / VGA / CIF / QCIF
Display Output HDMI (1×) up to 4K @30Hz; VGA (1×) up to 1080P
Display Split Options 1/3/4/6/8/9/10/13/16/20A/20B
E-Zoom Support Yes
Audio Output 1× RCA (Linear, 1kΩ)
Storage Interface 2× SATA ports (internal)
Max HDD Capacity Up to 10TB per HDD (20TB total)
HDD File System NTFS
HDD Management Group and quota, customizable recording retention
eSATA Support No
RAID Support Not Supported
USB Interfaces 2× USB 2.0
Network Interface 1× RJ-45 10/100 Mbps Ethernet
Remote Connections Up to 64 simultaneous users
Alarm In/Out 0 / 1
Serial Interface Not available
VCA Features (Smart Video Analytics) Tripwire, Double Tripwire, Perimeter, Object Abandon/Lost, Loitering, Crowd, Face Detection, Face Counting, People Counting, Scene Change Detection
Smart Search Supported (by VCA & timeline)
ANR (Automatic Network Replenishment) Yes
Image Flip / Corridor Mode Yes (Tiandy Cameras only)
Record Format SDV, MP4
Record Encryption & Tags Supported
Web Interface Web6 (HTML5, plugin-free)
Browser Support All major browsers: Chrome, Edge, Firefox, Safari, IE (limited H.265 config)
Mobile App Easylive (iOS & Android)
Cloud Upgrade Yes (NVR & IPC)
ONVIF Compatibility ONVIF Profile S
Languages Supported English, Spanish, Korean, Thai, Turkish, Russian, French, Polish, Hebrew, Chinese
Power Supply DC 12V 3.33A
Power Consumption ≤35W (without HDD)
Operating Temperature -10°C to +55°C (14°F to 131°F)
Humidity Range 10% – 90%
Chassis 1U rack-mountable

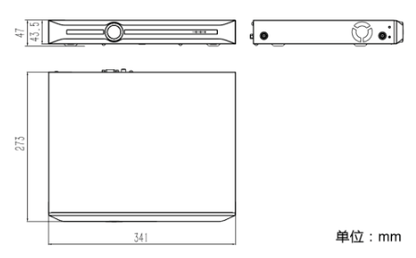

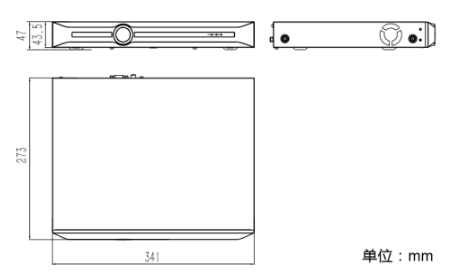

Dimensions (W×D×H) 341 × 273 × 47 mm
Weight 2.3 kg (without HDD), 4 kg (with packaging)
Certifications CE, FCC
