"TC-R3232 Spec:I/B/K/V3.1 Tiandy Lite Lite-K 32ch NVR 2HDD 8MP Rec."
"TC-R3232 Spec:I/B/K/V3.1 Tiandy Lite Lite-K 32ch NVR 2HDD 8MP Rec."
Sold by: MA Tech
📄 Product Overview – TC-R3232 (Lite Series)

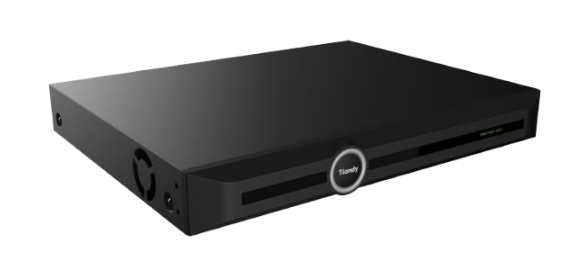

The Tiandy TC-R3232 is a professional-grade 32-channel NVR designed for high-capacity surveillance installations requiring 4K output, multi-channel synchronous playback, and advanced VCA integration. With support for up to 2 hard drives (10TB each), this NVR suits commercial buildings, enterprise sites, and large-scale security systems.
Featuring S+265/H.265 compression, this unit saves up to 75% storage and bandwidth, making it highly efficient. It supports 16-channel synchronous playback, a 160 Mbps input bandwidth, and intelligent video analytics via connected Tiandy smart cameras.
Tiandy TC-R3232 aik professional-grade 32-channel NVR hai jo high-capacity surveillance installations ke liye design kiya gaya hai, jahan 4K output, multi-channel synchronous playback, aur advanced VCA integration ki zaroorat hoti hai. Yeh NVR 2 hard drives tak support karta hai (har aik 10TB tak), is liye yeh commercial buildings, enterprise sites, aur bari security systems ke liye munasib hai.
Is mein S+265 aur H.265 compression use hoti hai jo storage aur bandwidth ki consumption ko 75% tak kam kar deti hai, jis se yeh bohat efficient banta hai. Yeh 16-channel synchronous playback support karta hai, 160 Mbps input bandwidth provide karta hai, aur Tiandy ke smart cameras ke zariye intelligent video analytics bhi offer karta hai.
📊 Technical Specifications – TC-R3232
Category | Specification |
Model | TC-R3232 Spec: I/B/K/V3.1 |
Video Input Channels | 32 |
Max Input Resolution | Up to 8MP per channel |
Video Compression | S+265 / H.265 / S+264 / H.264 |
Audio Input / Output | 1-ch (3.5mm) / 1-ch RCA |
Two-way Audio | 1-ch (3.5mm shared with audio input) |
Preview Decoding Capability | 8MP×2, 1080P×8, 720P×16, or 4CIF×32 |
Playback Capability | 16-channel synchronous playback |
Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P to QCIF |
HDMI Output Resolution | Up to 4K (3840×2160 @30Hz) |
VGA Output Resolution | Up to 1080P (1920×1080 @60Hz) |
Screen Display Splits | VGA/HDMI: 1/2/3/4/5/6/7/8/9/10/12/13/16/20A/B/C/D/25/32/36 |
Face Attributes | Gender, Age |
AI (via camera) | People Counting, Face Detection, Smart Motion, Human/Vehicle Classification, etc. |
VCA Search | Heatmap, Behavior Search, Face Search, Thermographic Retrieval, etc. |
Bandwidth (Input/Output) | 160 Mbps / 48 Mbps |
Third-party Support | ONVIF (S/T/G), RTSP |
Web Access | Plugin-free (Web6): Chrome, Firefox, Safari, Edge |
Mobile Access | Android, iOS, P2P |
Recording Modes | Manual, Alarm, Schedule |
Storage | 2× SATA (up to 10TB per HDD) |
Disk Group | 2 |
Backup | USB or Network |
Alarm I/O | 4× alarm input (TTL); 1× relay output (1A, 24VDC) |
Network Interface | 1× RJ-45 (10/100/1000 Mbps) |
USB Ports | 2× USB 2.0 |
Power Supply | DC 12V, 3.3A |
Power Consumption | <10W (without HDD) |
Operating Conditions | -10°C to +55°C, 10%~90% RH |
Storage Temperature | -20°C to +60°C |

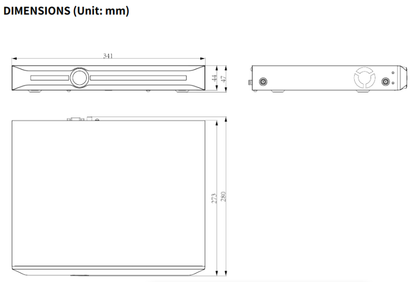

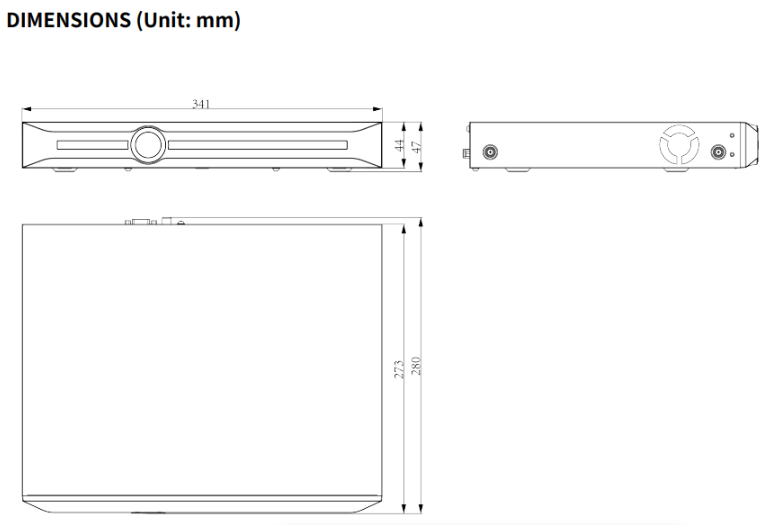

Dimensions (mm) | 341(L) × 273(W) × 47(H) |
Weight (Net/Gross) | 1.6 kg / 3.0 kg |
Languages Supported | 20+ including English, Chinese (Simplified & Traditional), Spanish, French, etc. |
Included in Box | NVR, Mouse, Power Adapter, Screw Pack, EU Power Cord |
🔑 Key Highlights
- 🔄 32 Channels & 2 HDDs: Perfect for large-scale surveillance setups.
- 📹 4K HDMI Output: Crystal-clear video display.
- 📼 16-Channel Playback: Efficient review and analysis of footage.
- 🧠 AI Features via Camera: Face detection, people counting, fire/smoke alerts, and more.
- 💾 S+265 Compression: Reduce storage by up to 75%.
- 🌐 Web6 Browser Access: No plugin needed across all major browsers.
