TC-R3440 (40CH, 4HDD NVR)


📄 Product Overview

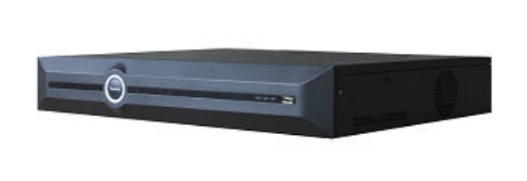

The TC-R3440 from Tiandy is a professional 40-channel network video recorder (NVR) built for high-capacity video surveillance systems. With up to 400Mbps incoming bandwidth, support for 16MP resolution recording, and advanced VCA analytics, it’s an ideal solution for large facilities, public security, and enterprise-level monitoring.


Tiandy TC-R3440 aik professional 40-channel network video recorder (NVR) hai jo high-capacity video surveillance systems ke liye banaya gaya hai. Yeh 400Mbps tak incoming bandwidth ko support karta hai, 16MP resolution recording ki sahulat deta hai, aur advanced VCA analytics bhi offer karta hai. Is liye yeh bari facilities, public security, aur enterprise-level monitoring ke liye behtareen solution hai.


📊 Technical Specifications

Category Specification
Model TC-R3440 Spec: I/B/N
Video Input Channels 40 IP channels
Max Input Bandwidth 400 Mbps
Max Output Bandwidth 200 Mbps
Compression Standards S+265, H.265, H.264H, H.264M, H.264B
Supported Recording Resolutions 16MP to QCIF
Preview Capability 4-ch 4K / 16-ch 1080P / 32-ch 720P / 40-ch 4CIF
Playback Capability 4-ch 4K / 16-ch 1080P / 720P / 4CIF
Synchronous Playback Up to 16-ch 1080P
Recording Format SDV, MP4
Recording Encryption Yes
Smart Recording Bitrate customization by time
Pre-/Post-Alarm Recording Pre: Default 10s (5/10/15/60s), Post: Default 10s (10/15/30/60/600s)
Trigger Recording Manual, Motion Detection, Alarm, VCA, Video Loss, Masking
Display Split Modes 1/3/4/6/8/9/10/13/16/20/25/36/40/64
Video Output 1× HDMI (up to 4K), 1× VGA (1080p)
Audio Input/Output 1× 3.5mm (in), 1× RCA (out)
Two-way Audio Supported (1-ch)
Image Flip / Corridor Mode Yes (Tiandy cameras only), 16:9 to 9:16
Zoom / E-Zoom Supported
Web UI Version UI V3.0 with drag & drop navigation
Browser Compatibility All major browsers (IE, Chrome, Edge, Safari) – H.265 config in non-IE only
Mobile App Easylive (iOS/Android)
Remote Access Clients Up to 160
Network Interfaces 2× RJ-45 10/100/1000 Mbps
Protocols Supported IPv4/IPv6, HTTP/HTTPS, FTP, NTP, RTSP, SNMP, SMTP, ONVIF (Profile S), etc.
USB Ports 1× USB 3.0, 2× USB 2.0
Alarm I/O 16 input / 4 output
Serial Interfaces 1× RS-485, 1× RS-232
HDD Interface 4× SATA interfaces
HDD Capacity Up to 10TB per HDD (Total: 40TB max)
HDD Management Grouping, Quotas, Custom Recording Days
ANR (Auto Network Replenishment) Supported
NAS Support NFS protocol (manual backup only)
Hot Standby Supported
Smart Search & Playback Yes, via channel, time, event, file type, or VCA
VCA Functions Tripwire, Object Abandon, People Counting, Face Detection, Audio Abnormal, etc.
Advanced AI (via Camera) Crowd Detection, Auto Tracking, Scene Change, Heatmap, etc.
Face Detection Attributes Gender, Age (via camera)
Compliance CE, FCC
Power Supply DC 12V / 5A
Power Consumption ≤40W (without HDDs)
Operating Temperature -10°C to +55°C (14°F ~ 131°F)
Storage Temperature -20°C to +60°C (-4°F ~ 140°F)
Humidity 10% ~ 90% RH
Chassis 1.5U 19" Rack Mount, includes 2 ear brackets

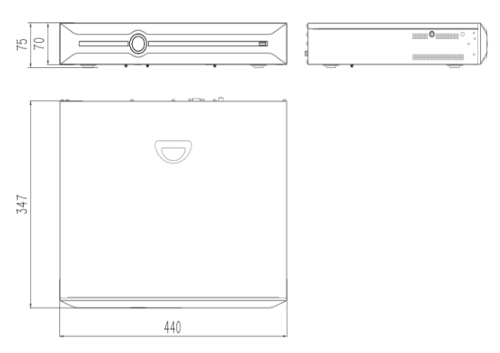

Dimensions (W×D×H) 440 × 347 × 75 mm
Weight (Net / Gross) 3.8 kg / 5.5 kg

🔑 Key Features Summary

  • Supports up to 40 IP Cameras with up to 16MP recording resolution
  • 🔄 Dual Gigabit LAN ports for improved network flexibility
  • 🔐 Advanced Video Encryption, SDV/MP4 support
  • 📦 4x HDD bays, each supporting up to 10TB (40TB max)
  • 🔊 1x Audio In / 1x Audio Out, 16x Alarm In / 4x Alarm Out
  • 🧠 VCA/AI Analytics (when used with Tiandy smart cameras)
  • 🔎 Smart Search & Playback, E-Zoom, Corridor Mode
  • 🌐 Web UI V3.0 with customizable UI navigation
  • 📲 Mobile Access via Easylive app (iOS & Android)
