"TC-R3440 Spec: I/B/N/V4.0 Tiandy Pro, Pro 40ch NVR 4HDD 12MP Rec."
"TC-R3440 Spec: I/B/N/V4.0 Tiandy Pro, Pro 40ch NVR 4HDD 12MP Rec."
Sold by: MA Tech

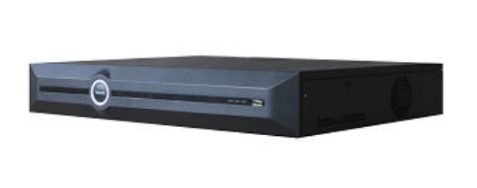

Tiandy TC-R3440 (I/B/N) – 40-Channel 4HDD NVR
📘 Product Description:
The Tiandy TC-R3440 is a high-performance 40-channel network video recorder (NVR) designed for enterprise-grade surveillance applications. It supports recording resolutions of up to 16MP, enabling detailed video capture from a wide range of IP cameras, including third-party ONVIF-compliant models. Leveraging S+265 compression technology, the TC-R3440 significantly reduces bandwidth and storage usage—up to 75% savings—while maintaining high image quality.
This NVR is built to handle up to 400Mbps incoming bandwidth and supports 200Mbps outgoing bandwidth, ensuring smooth video recording and remote access. It offers both HDMI and VGA outputs (up to 4K resolution), with multi-channel preview and playback capabilities (up to 4-channel 4K or 16-channel 1080p synchronous playback). With four SATA ports supporting up to 10TB per drive, it can manage up to 40TB of storage, and supports NTFS file system, HDD grouping, and recording quotas.
The TC-R3440 includes advanced video analytics (VCA) such as tripwire, intrusion, object removal, people counting, face detection, and more, making it ideal for smart surveillance applications. It supports smart search based on VCA criteria, ANR (Automatic Network Replenishment) for data redundancy, and cloud upgrade functions for both the NVR and connected cameras. With dual gigabit LAN ports, 16 alarm inputs, 4 alarm outputs, 1 audio input/output, RS-232/RS-485 ports, and 3 USB interfaces, it’s well-equipped for integration into complex security systems.
The system runs on UI V3.0, which supports a modern drag-and-drop interface, and is accessible via all major browsers, including Chrome, Edge, and Safari—without requiring plug-ins. It supports P2P remote viewing on Android and iOS via the EasyLive app. Housed in a 1.5U rackmount chassis, the NVR is CE and FCC certified, supports multiple languages, and is built to operate in temperatures ranging from -10°C to +55°C.
Tiandy TC-R3440 aik high-performance 40-channel network video recorder (NVR) hai jo enterprise-grade surveillance applications ke liye design kiya gaya hai. Yeh 16MP tak recording resolution support karta hai, jis se mukhtalif IP cameras, including third-party ONVIF-compliant models, se tafseeli video capture mumkin hota hai. S+265 compression technology ki madad se yeh bandwidth aur storage ki consumption ko 75% tak kam karta hai, magar image quality barqarar rakhta hai.
Yeh NVR 400Mbps incoming bandwidth aur 200Mbps outgoing bandwidth handle kar sakta hai, jo smooth video recording aur remote access ko ensure karta hai. Is mein HDMI aur VGA outputs (4K resolution tak) mojood hain, aur multi-channel preview/playback ki sahulat di gayi hai (4-channel 4K ya 16-channel 1080p synchronous playback).
Chaar SATA ports ki madad se yeh 10TB per drive storage ko support karta hai, yani total 40TB tak ka storage manage kar sakta hai. NTFS file system, HDD grouping, aur recording quotas bhi is mein shamil hain.
TC-R3440 mein advanced video analytics (VCA) features mojood hain jaise ke tripwire, intrusion detection, object removal, logon ki ginti, face detection, aur mazeed, jo isay smart surveillance ke liye behtareen banate hain. Smart search VCA criteria par mumkin hai, ANR (Automatic Network Replenishment) data redundancy ke liye available hai, aur cloud upgrade NVR aur connected cameras dono ke liye support karta hai.
Is mein dual gigabit LAN ports, 16 alarm inputs, 4 alarm outputs, 1 audio input/output, RS-232/RS-485 ports, aur 3 USB interfaces mojood hain, jo complex security systems mein integration ke liye zaroori hain.
Yeh system UI V3.0 par chalta hai jismein modern drag-and-drop interface hai, aur Chrome, Edge, Safari jaise tamam bari browsers ke liye plugin-free access deta hai. EasyLive app ke zariye Android aur iOS par P2P remote viewing bhi support karta hai.
1.5U rackmount chassis mein housed yeh NVR CE aur FCC certified hai, multiple languages support karta hai, aur -10°C se +55°C tak ke temperature range mein operate karta hai.
📊 Technical Specification Table
| Category | Details |
| Model | TC-R3440 Spec: I/B/N |
| Video Input Channels | 40 IP channels |
| Incoming Bandwidth | 400 Mbps |
| Outgoing Bandwidth | 200 Mbps |
| Max Recording Resolution | Up to 16MP (12MP/8MP/6MP/5MP/1080P/etc.) |
| Preview Capability | 4×4K, 16×1080P, 32×720P, 40×4CIF |
| Synchronous Playback | 4×4K or 16×1080P/720P/4CIF |
| Playback Capability | Same as synchronous playback |
| Compression (Video/Audio) | S+265, H.265, H.264H/M/B / G711A/U, AAC, ADPCM_DIV4 |
| Recording Formats | SDV, MP4 (with encryption and tagging) |
| Smart Recording | Bitrate scheduling, pre/post alarm recording |
| Pre/Post Alarm Buffer | Pre: 5/10/15/60s, Post: 10/15/30/60/600s |
| Display Split Modes | 1/3/4/6/8/9/10/13/16/20/25/36/40/64 |
| HDMI Output | 1× HDMI (up to 3840×2160 @30Hz) |
| VGA Output | 1× VGA (up to 1920×1080) |
| Audio Input/Output | 1× 3.5mm IN, 1× RCA OUT |
| Two-Way Audio | Supported via 3.5mm input |
| Video Analytics (VCA) | Tripwire, intrusion, object removal, people counting, face detection, etc. |
| Smart Search | Search by time, event, channel, file type, VCA (Tiandy cameras only) |
| Storage Interface | 4× SATA (10TB each) – up to 40TB total |
| File System | NTFS supported |
| USB Ports | 1× USB 3.0, 2× USB 2.0 |
| Network Ports | 2× RJ45 (10/100/1000 Mbps) |
| Serial Ports | 1× RS-232, 1× RS-485 |
| Alarm I/O | 16 Inputs / 4 Outputs |
| NAS Support | Manual backup via NFS protocol |
| Browser Compatibility | Chrome, Edge, Firefox, Safari (No plug-in needed for H.265) |
| Mobile Access | EasyLive app (iOS, Android) |
| Remote Connections | Up to 160 users |
| UI Version | UI V3.0 (drag-and-drop supported) |
| ANR Support | Yes |
| Onvif Support | Profile S compliant |
| Languages | EN, ES, KO, IT, TR, TH, RU, PL, FR, ZH(S/T), NL, HE |
| Power Supply | DC 12V, 5A |
| Power Consumption | ≤ 40W (without HDD) |
| Operating Temperature | -10°C to +55°C |
| Humidity Range | 10% to 90% RH |
| Chassis | 1.5U 19" Rackmount (with ear mounts) |

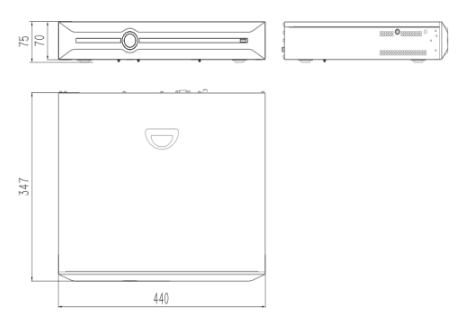

| Dimensions (W×D×H) | 440 × 347 × 75 mm |
| Weight | 3.8 kg (net), 5.5 kg (with packaging) |
| Certifications | CE, FCC |
