"TC-R3880 Spec: I/B/N/V4.0 Tiandy Pro, Pro 80ch NVR 8HDD 12MP Rec."
"TC-R3880 Spec: I/B/N/V4.0 Tiandy Pro, Pro 80ch NVR 8HDD 12MP Rec."
Sold by: MA Tech

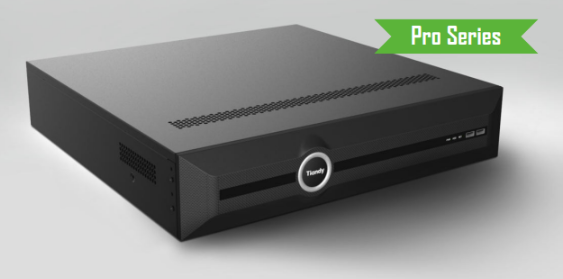

Tiandy TC-R3880 (I/B/N) – 80CH 8HDD Pro Series NVR
📘 Product Description:
The Tiandy TC-R3880 is a powerful 80-channel network video recorder (NVR) from Tiandy's Pro Series, engineered for enterprise-grade surveillance systems requiring scalability, intelligence, and reliability. This unit supports high-resolution recording of up to 12MP per channel, compatible with both Tiandy and third-party IP cameras through ONVIF support.
With 8 SATA ports, each supporting up to 10TB, and eSATA capability, the TC-R3880 offers up to 80TB internal storage, with RAID (0/1/5/6/10) and JBOD configurations for flexible redundancy and data security. Enhanced with S+265 compression, storage and bandwidth efficiency is optimized—reducing space usage by up to 75% without compromising video quality.
This recorder delivers dual HDMI and VGA outputs, supporting independent display at up to 4K resolution. The decoding capacity allows for seamless 2×12MP, 4×4K, or 16×1080P playback—making it ideal for centralized monitoring centers.
Networking is handled by dual gigabit Ethernet ports (10/100/1000 Mbps), supporting 400Mbps incoming and 200Mbps outgoing bandwidth. With 16 alarm inputs and 4 outputs, 2 RS-485 ports, USB 2.0/3.0, and RS-232, the device integrates smoothly with alarm sensors, external controllers, and other systems. It supports ANR (Automatic Network Replenishment), N+M hot standby, and record encryption, reinforcing its reliability and resilience in mission-critical environments.
The web interface (Web6) is compatible with all modern browsers (no plugins required), while mobile access is enabled via Tiandy’s remote apps. A robust 2U rack-mount chassis houses this unit, rated to operate between -10°C to 55°C, and compliant with CE and FCC standards.
Tiandy TC-R3880 aik taqatwar 80-channel network video recorder (NVR) hai jo Tiandy ke Pro Series ka hissa hai, aur enterprise-grade surveillance systems ke liye design kiya gaya hai jahan scalability, intelligence, aur reliability ki zarurat hoti hai. Yeh device 12MP tak high-resolution recording support karta hai har channel par, aur Tiandy ke IP cameras ke sath-saath third-party ONVIF-compliant cameras ke saath bhi compatible hai.
Is mein 8 SATA ports hain, jahan har ek 10TB tak storage support karta hai, aur eSATA capability bhi mojood hai. Is tarah TC-R3880 total 80TB tak internal storage provide karta hai, jismein RAID (0/1/5/6/10) aur JBOD configurations ke options hain, jo flexible redundancy aur data security ke liye zaroori hain. S+265 compression ke zariye storage aur bandwidth ka istemal optimize hota hai, jisse storage ki zarurat 75% tak kam ho jati hai bina video quality ko compromise kiye.
Yeh recorder dual HDMI aur VGA outputs ke sath aata hai, jo independent display support karte hain aur 4K resolution tak ka output de sakte hain. Decoding capacity se yeh 2×12MP, 4×4K, ya 16×1080P videos ko seamlessly playback kar sakta hai, jo centralized monitoring centers ke liye ideal banata hai.
Networking ke liye dual gigabit Ethernet ports (10/100/1000 Mbps) mojood hain, jo 400Mbps incoming aur 200Mbps outgoing bandwidth support karte hain. Is mein 16 alarm inputs, 4 alarm outputs, 2 RS-485 ports, USB 2.0/3.0, aur RS-232 interfaces hain, jo alarm sensors, external controllers, aur dusre systems ke sath asaani se integrate hote hain. ANR (Automatic Network Replenishment), N+M hot standby, aur record encryption bhi supported hain, jo mission-critical environments mein reliability aur resilience ko barhata hai.
Web interface (Web6) tamam modern browsers ke sath compatible hai (kisi plugin ki zarurat nahi), aur mobile access Tiandy ke remote apps ke zariye mumkin hai. Yeh device 2U rack-mount chassis mein housed hai, jo -10°C se 55°C tak operate karta hai, aur CE aur FCC standards ke mutabiq certified hai.
📊Technical Specification Table
| Category | Details |
| Model | TC-R3880 Spec: I/B/N |
| Series | Pro Series |
| Video Input Channels | 80 IP channels |
| Max Recording Resolution | Up to 12MP |
| Compression Formats | S+265, H.265, H.264 |
| Preview Capability | 2×12MP, 4×4K, 5×5MP, 8×4MP, 16×1080P, 32×720P, 64×4CIF |
| Synchronous Playback | 2×12MP, 4×4K, 5×5MP, 8×4MP, 16×1080P, 16×720P |
| Recording Resolution Support | 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / UXGA / 720P / VGA / CIF / QCIF |
| Decoding Formats | S+265, H.265, H.264 |
| Display Split Modes | 1/3/4/6/8/9/10/13/16/20/25/36/40/64 |
| HDMI Outputs | 2× HDMI (max resolution: 3840×2160 @30Hz) |
| VGA Outputs | 2× VGA (max resolution: 1920×1080) |
| Two-Way Audio | 1× 3.5mm IN |
| Audio Outputs | 1× 3.5mm, 1× BNC |
| Storage Interface | 8× SATA (up to 10TB per HDD) + 1× eSATA |
| RAID Support | JBOD, RAID 0/1/5/6/10 |
| Bandwidth (Incoming/Outgoing) | 400 Mbps / 200 Mbps |
| Record Encryption | Supported |
| Smart Features | VCA (VCA alarms, smart playback, smart search) |
| Alarm I/O | 16× inputs, 4× outputs |
| USB Interfaces | 2× USB 2.0, 1× USB 3.0 |
| Serial Interfaces | 2× RS-485, 1× RS-232 |
| Network Ports | 2× RJ45 10/100/1000 Mbps |
| Protocols Supported | TCP/IP, HTTP, DHCP, DNS, DDNS, FTP, NTP, SMTP, RTSP, ONVIF, etc. |
| ANR Support | Yes |
| Hot Standby | N+M supported |
| Web Interface | Web6 (plugin-free, supports all major browsers) |
| Remote Access | Yes (via Tiandy mobile app) |
| Operating Temperature | -10°C to +55°C |
| Humidity | 10% – 90% RH |
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption | ≤ 100W (without HDDs) |
| Chassis Type | 2U Rackmount |

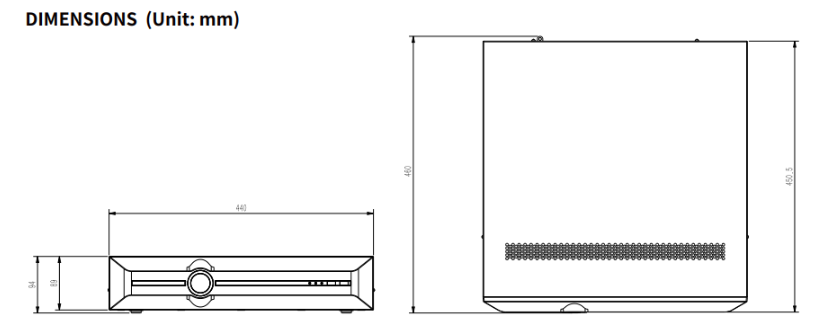

| Dimensions (W×D×H) | 440 × 460 × 94 mm |
| Weight (Without HDD) | 7.2 kg |
| Certifications | CE, FCC |
| Languages Supported | English, Spanish, Russian, French, Korean, Turkish, Chinese (S/T), etc. |
