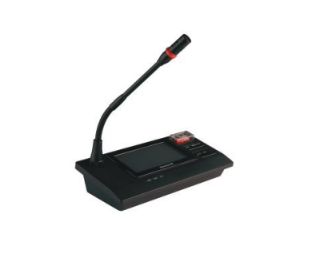

Honeywell X-NPMI Configurable Network Paging Console
✅ Description
The X-NPMI is a key module in the X-618 Digital Public Address and Voice Alarm System, designed for paging, system monitoring, full-duplex communication, and intuitive touch-screen operation. It includes configurable functions and built-in software to meet diverse PA and emergency needs.
X-NPMI ek ahem module hai jo X-618 Digital Public Address aur Voice Alarm System ka hissa hai. Yeh module paging, system monitoring, full-duplex communication, aur touch screen ke zariye asaan operation ke liye design kiya gaya hai. Is mein mukhtalif configurable functions aur built-in software mojood hai jo PA (public address) aur emergency zarurat ko poora karta hai.
🌟 Key Features
Fail-Safe Operation: Even if a connected X-DCS2000/EN fails, X-NPMI continues operation via other nodes in the network.
4.3-inch Color LCD Touch Screen:
- No need for extra key modules
- Allows system supervision, zone selection, group assignment, playlist setup, and timed broadcasts
Short-Cut Buttons:
- Microphone switch
- Select all zones
- Emergency broadcast: Triggers evacuation message and fire alarm without delay
Flexible Connectivity:
- Connect up to 20 X-NPMI units via Ethernet
- Can be deployed as a network node using existing infrastructure
Audio Transmission:
- Detachable gooseneck microphone for real-time announcements
- Digital audio eliminates distortion
- Built-in loudspeaker supports monitoring and intercom
🌟 Ahm Features
Fail-Safe Operation:
Agar koi connected X-DCS2000/EN fail ho jaye, to bhi X-NPMI network ke doosre nodes ke zariye kaam jari rakhta hai.
4.3-inch Color LCD Touch Screen:
- Kisi extra key module ki zarurat nahi
- System ki monitoring, zone selection, group assignment, playlist banana aur schedule ke mutabiq broadcast karne ki sahulat
Short-Cut Buttons:
- Microphone ka switch
- “Select All Zones” ka button
- Emergency Broadcast: Baghair kisi delay ke evacuation message aur fire alarm trigger karta hai
Flexible Connectivity:
- 20 tak X-NPMI units ko Ethernet ke zariye connect kiya ja sakta hai
- Maujooda network infrastructure mein as a node deploy kiya ja sakta hai
Audio Transmission:
- Detachable gooseneck microphone real-time announcements ke liye
- Digital audio ki wajah se distortion nahi hota
- Built-in loudspeaker monitoring aur intercom support karta hai
🛠️ Technical Specifications
Parameter | Value |
Power Voltage | DC 12 V |
Audio Input | 0 dB |
Microphone Input | -51 dB |
Audio Port | 0 dB |
Input Impedance | 10 KΩ |
Frequency Response | 60 Hz – 16 KHz |
Sampling Rate | 44.1 KHz, 16 Bit |
Monitoring Speaker | 2 W / 8Ω |
SPL (1m in front) | > 65 dB, < 115 dB |
Operating Temperature | -10 °C to +55 °C |
Storage Temperature | -40 °C to +70 °C |
Relative Humidity | < 95%, non-condensing |
Dimensions (W×H×D) | 210 × 55 × 100 mm |
Package Dimensions (W×H×D) | 403 × 133 × 268 mm |
Net Weight | 0.78 kg |
Gross Weight | 1.6 kg |
🔌 Interfaces
- RJ45 standard network port
- Audio input/output ports
⚙️ Components
- Emergency broadcast switch (EMERGENCY)
- All-zone selection (SELECT ALL)
- Microphone talk mode switch (TALK)
🔴 Indicators
- FAULT
- RUN
- EMERGENCY
📦 Parts Included
Component | Qty |
X-NPMI Console | 1 |
Microphone Pole | 1 |
Wind Shield | 1 |
Power Adapter | 1 |
Network Cable (2m) | 1 |
Warranty Card | 1 |
Quality Certificate | 1 |
Product Manual | 1 |
🛒 Ordering Information
Description | Model |
X-NPMI Configurable Network Paging Console with microphone, windshield, network cable | X-NPMI |
📜 Certifications and Standards
Category | Region | Certification |
Safety | Europe | CE Complied |
China | CCC (GB 8898) | |
Voice Alarm | Europe | EN 54 (Part 16) |
China | CCCF Complied (GB 16806-2006) |
